Century Spring

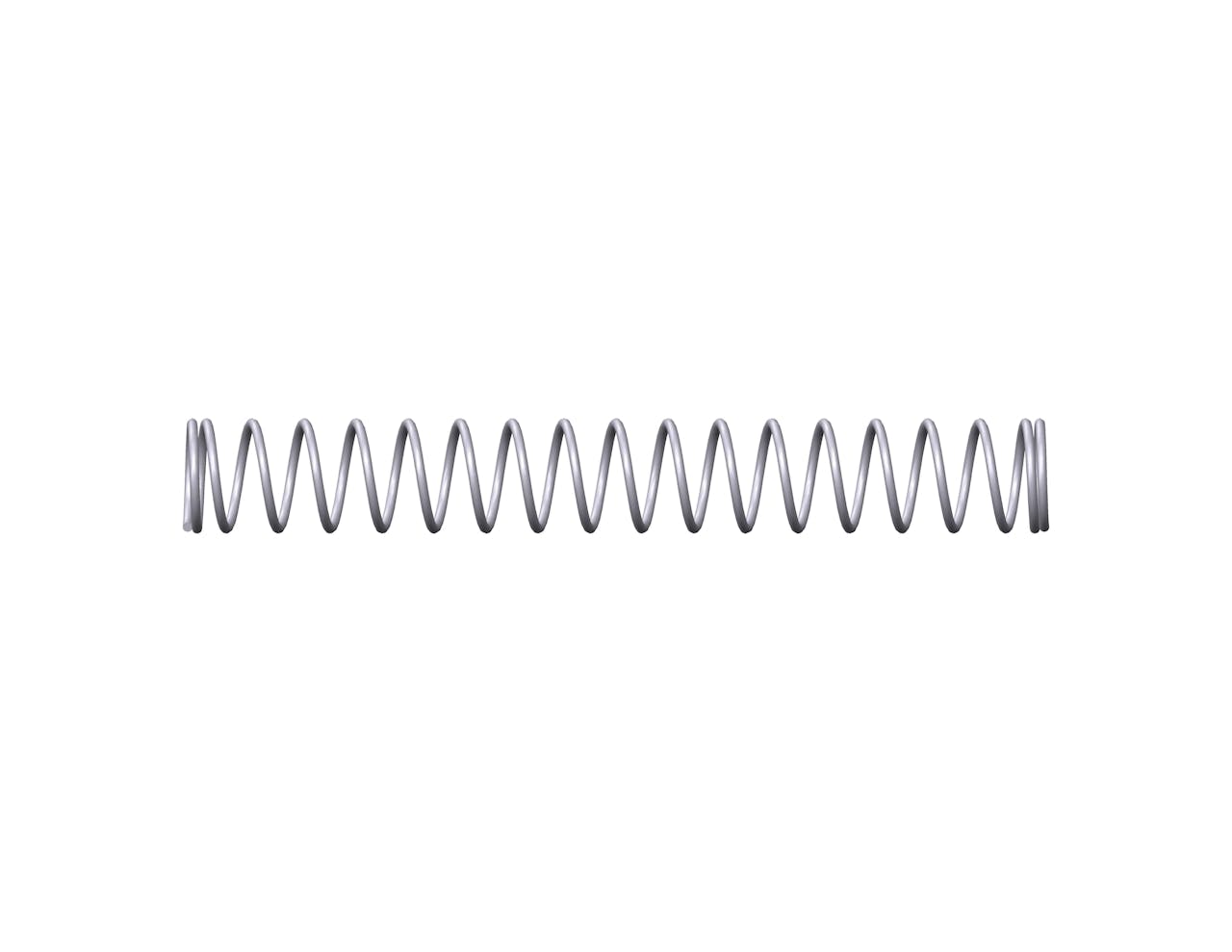

75086SCS - 0.886" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 18.92 coils and closed ends. This spring features an O.D. of 0.118", and an I.D. of 0.098".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75086S
Ends Closed
Finish None
Free Length 0.886 in
Inside Diameter 0.098 in
Material 302/304 Stainless Steel
Outside Diameter 0.118 in
Part Type Metric
Rate 0.586 lbs/in
SKU 75086SCS
Solid Length 0.199 in
Suggested Max Deflection 0.585 in
Suggested Max Load 0.343 lbf
Total Coils 18.92
Wire Diameter 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75086S
Ends Closed
Finish None
Free Length 22.5 mm
Inside Diameter 2.49 mm
Material 302/304 Stainless Steel
Outside Diameter 3 mm
Part Type Metric
Rate 0.1 N/mm
SKU 75086SCS
Solid Length 5.05 mm
Suggested Max Deflection 14.86 mm
Suggested Max Load 1.53 N
Total Coils 18.92
Wire Diameter 0.25 mm
The 75086S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75086SCS compression spring is designed with a free length of 0.886" total of 18.91 coils, and a rate of 0.704 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75086S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
