Century Spring

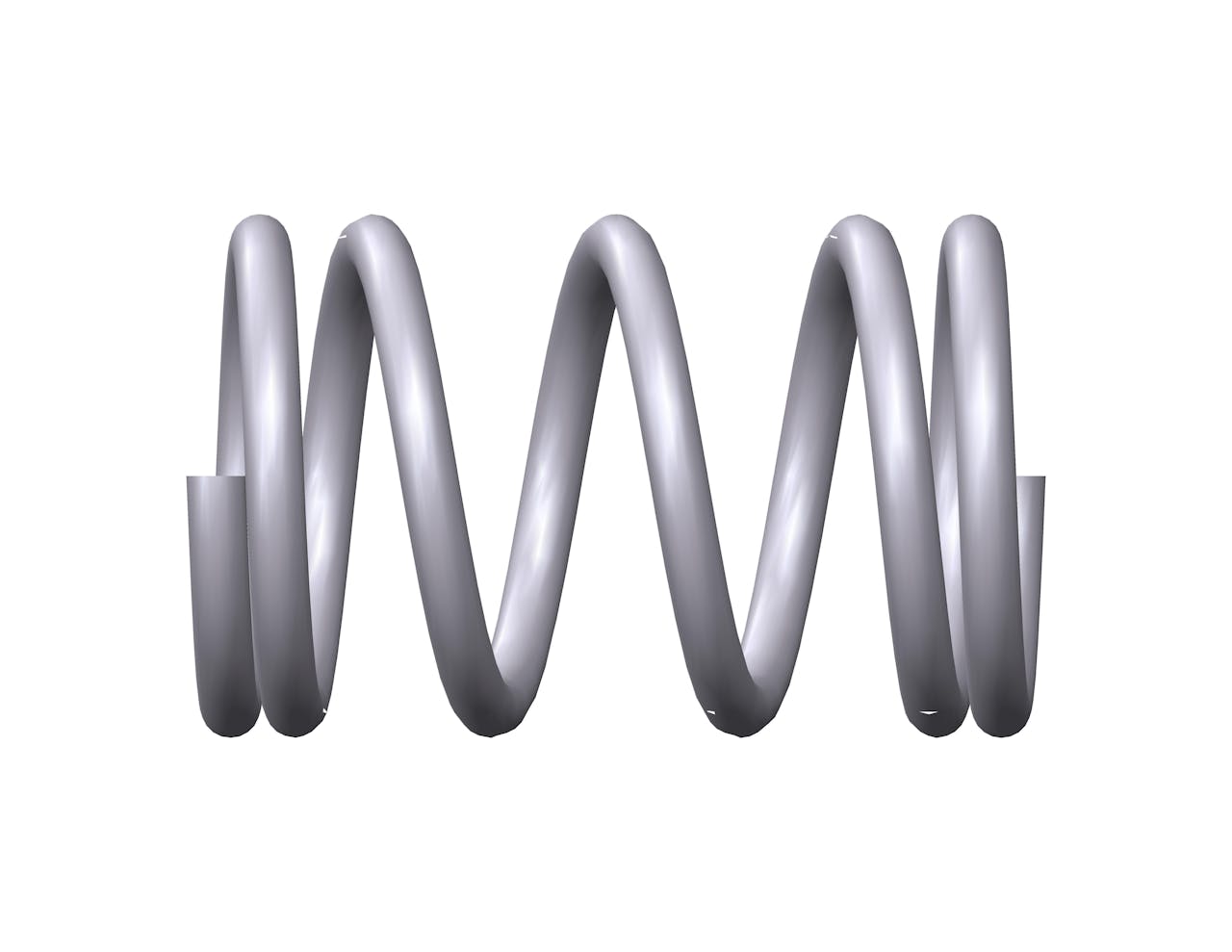

75060CS - 0.146" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 5.5 coils and closed ends. This spring features an O.D. of 0.089", and an I.D. of 0.069".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75060
Ends Closed
Finish None
Free Length 0.146 in
Inside Diameter 0.069 in
Material Music Wire
Outside Diameter 0.089 in
Part Type Metric
Rate 8.33 lbs/in
SKU 75060CS
Solid Length 0.064 in
Suggested Max Deflection 0.082 in
Suggested Max Load 0.683 lbf
Total Coils 5.5
Wire Diameter 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75060
Ends Closed
Finish None
Free Length 3.71 mm
Inside Diameter 1.75 mm
Material Music Wire
Outside Diameter 2.26 mm
Part Type Metric
Rate 1.46 N/mm
SKU 75060CS
Solid Length 1.63 mm
Suggested Max Deflection 2.08 mm
Suggested Max Load 3.04 N
Total Coils 5.5
Wire Diameter 0.25 mm
The 75060CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.01" diameter music wire, the 75060 spring design exhibits reliable strength across its 5.5 active coils, withstanding repeated compression cycles with a maximum load of 0.683 lbf without succumbing to fatigue.

We manufacture the 75060 design to provide a compression spring that is 0.146" long at rest and provides a consistent rate of 8.33 lbs/in along its recommended maximum of 0.082" deflection. For best results, your application should fully accommodate the inner (0.069") and outer (0.089") diameters of this spring and be designed for its closed end configuration.
