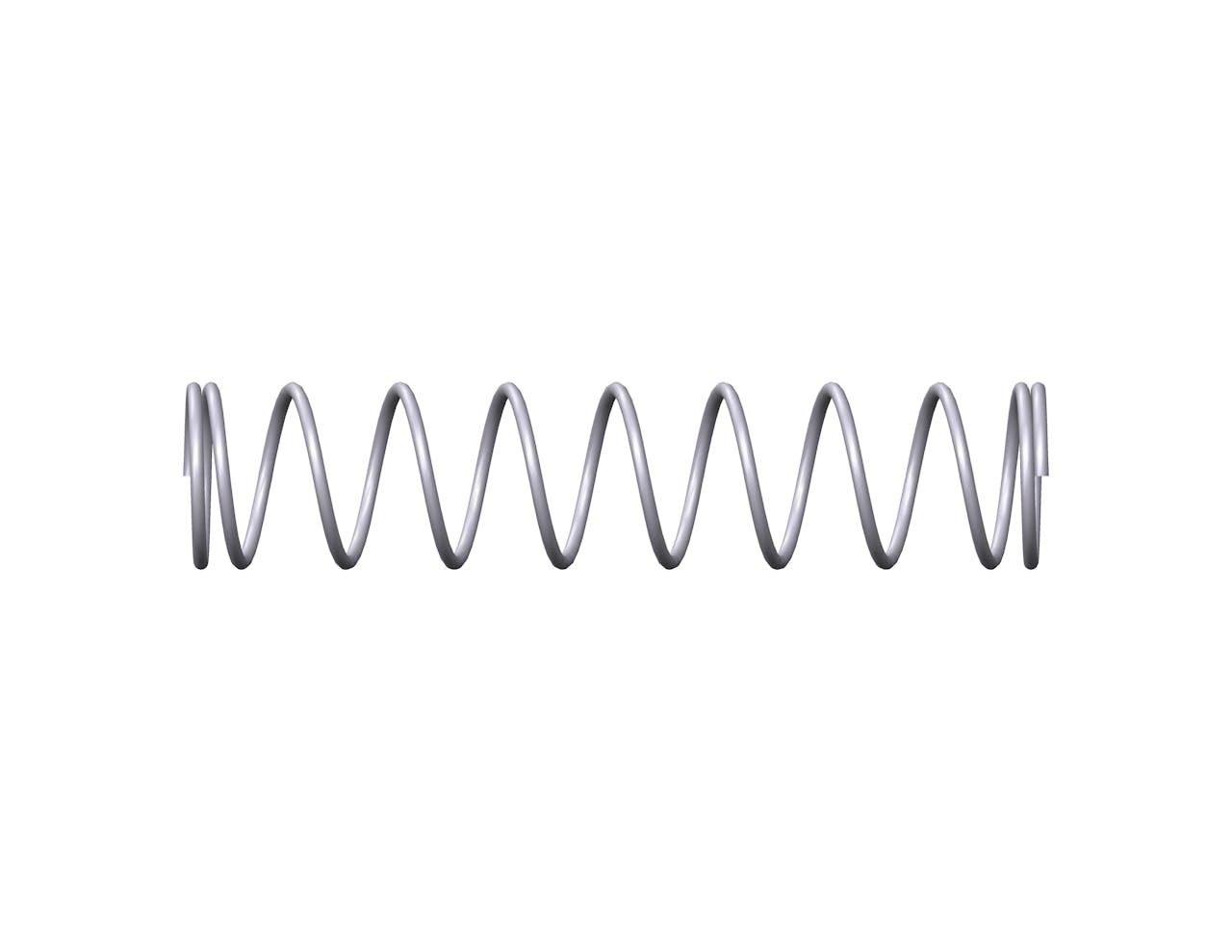

75021SCS - 0.488" 302/304 Stainless Steel Compression Spring
Inventory Status |
|
---|---|
Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed ends. This spring features an O.D. of 0.106", and an I.D. of 0.09".


Label | Value |
---|---|
Brand | Century Spring |
Display Name | 75021S |
Ends | Closed |
Finish | None |
Free Length | 0.488 in |
Inside Diameter | 0.09 in |
Material | 302/304 Stainless Steel |
Outside Diameter | 0.106 in |
Part Type | Metric |
Rate | 0.593 lbs/in |
SKU | 75021SCS |
Solid Length | 0.091 in |
Suggested Max Deflection | 0.336 in |
Suggested Max Load | 0.199 lbf |
Total Coils | 10.5 |
Wire Diameter | 0.008 in |
Label | Value |
---|---|
Brand | Century Spring |
Display Name | 75021S |
Ends | Closed |
Finish | None |
Free Length | 12.4 mm |
Inside Diameter | 2.29 mm |
Material | 302/304 Stainless Steel |
Outside Diameter | 2.69 mm |
Part Type | Metric |
Rate | 0.1 N/mm |
SKU | 75021SCS |
Solid Length | 2.31 mm |
Suggested Max Deflection | 8.53 mm |
Suggested Max Load | 0.89 N |
Total Coils | 10.5 |
Wire Diameter | 0.2 mm |
The compression spring 75021SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 75021S compression spring design exhibits exceptional tensile strength and resilience.
The 75021S design is manufactured with a free length of 0.488", with an outer diameter of 0.106", an inner diameter of 0.09", and a total of 10.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.593 lbs/in.
The 75021SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75021S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
