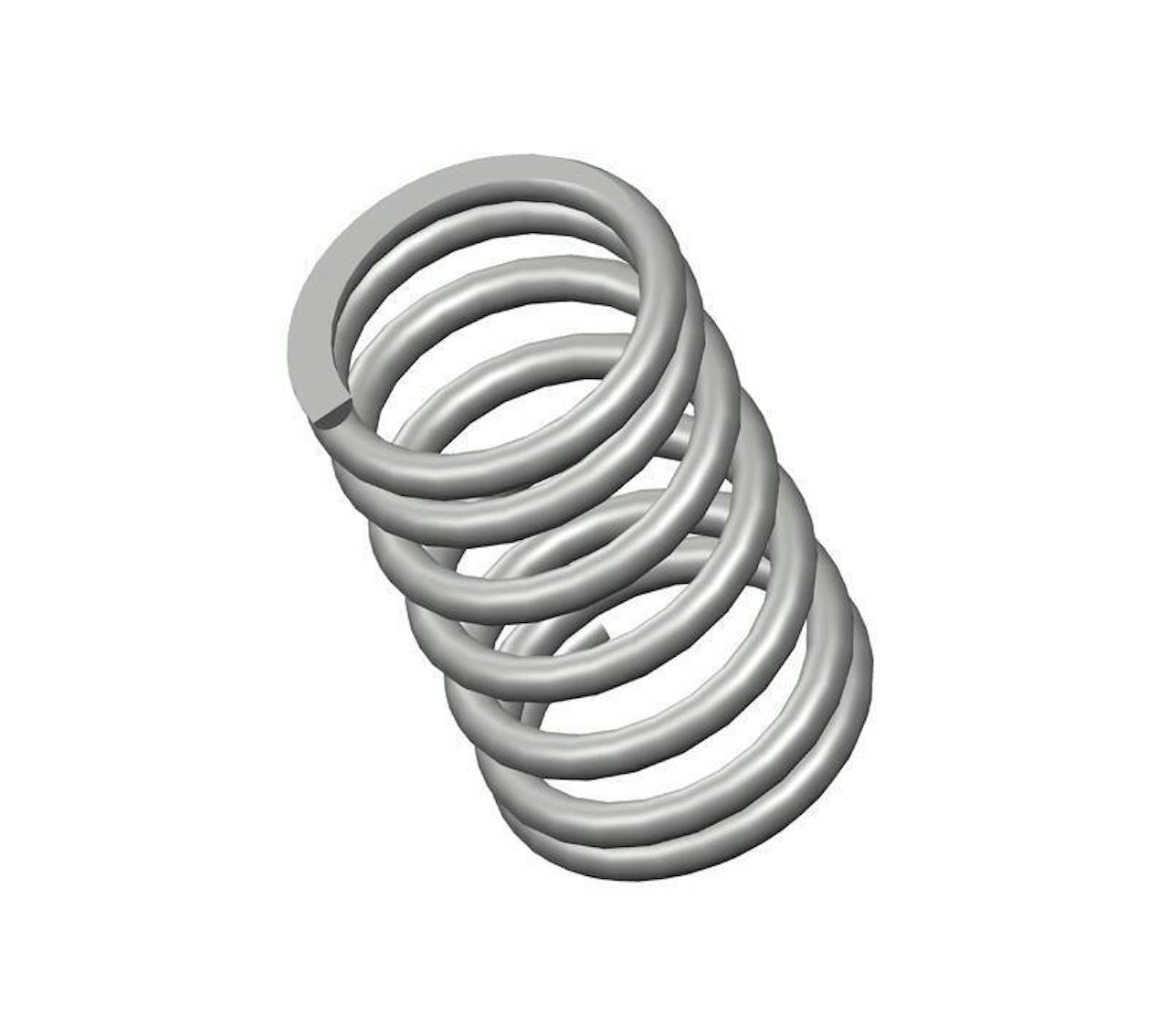

73652CS - 8" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 7.25 coils and closed & ground ends. This spring features an O.D. of 4.906", and an I.D. of 3.782".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73652
Ends Closed & Ground
Finish None
Free Length 8 in
Inside Diameter 3.782 in
Material Oil Tempered
Outside Diameter 4.906 in
Part Type Standard
Rate 333 lbs/in
SKU 73652CS
Solid Length 4.08 in
Suggested Max Deflection 2.8 in
Suggested Max Load 928 lbf
Total Coils 7.25
Wire Diameter 0.562 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73652
Ends Closed & Ground
Finish None
Free Length 203.2 mm
Inside Diameter 96.06 mm
Material Oil Tempered
Outside Diameter 124.61 mm
Part Type Standard
Rate 58.31 N/mm
SKU 73652CS
Solid Length 103.63 mm
Suggested Max Deflection 71.12 mm
Suggested Max Load 4127.74 N
Total Coils 7.25
Wire Diameter 14.27 mm
The 73652CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.562" diameter oil tempered, the 73652 spring design exhibits reliable strength across its 7.25 active coils, withstanding repeated compression cycles with a maximum load of 928 lbf without succumbing to fatigue.

We manufacture the 73652 design to provide a compression spring that is 8" long at rest and provides a consistent rate of 333 lbs/in along its recommended maximum of 2.8" deflection. For best results, your application should fully accommodate the inner (3.782") and outer (4.906") diameters of this spring and be designed for its closed & ground end configuration.
