Century Spring

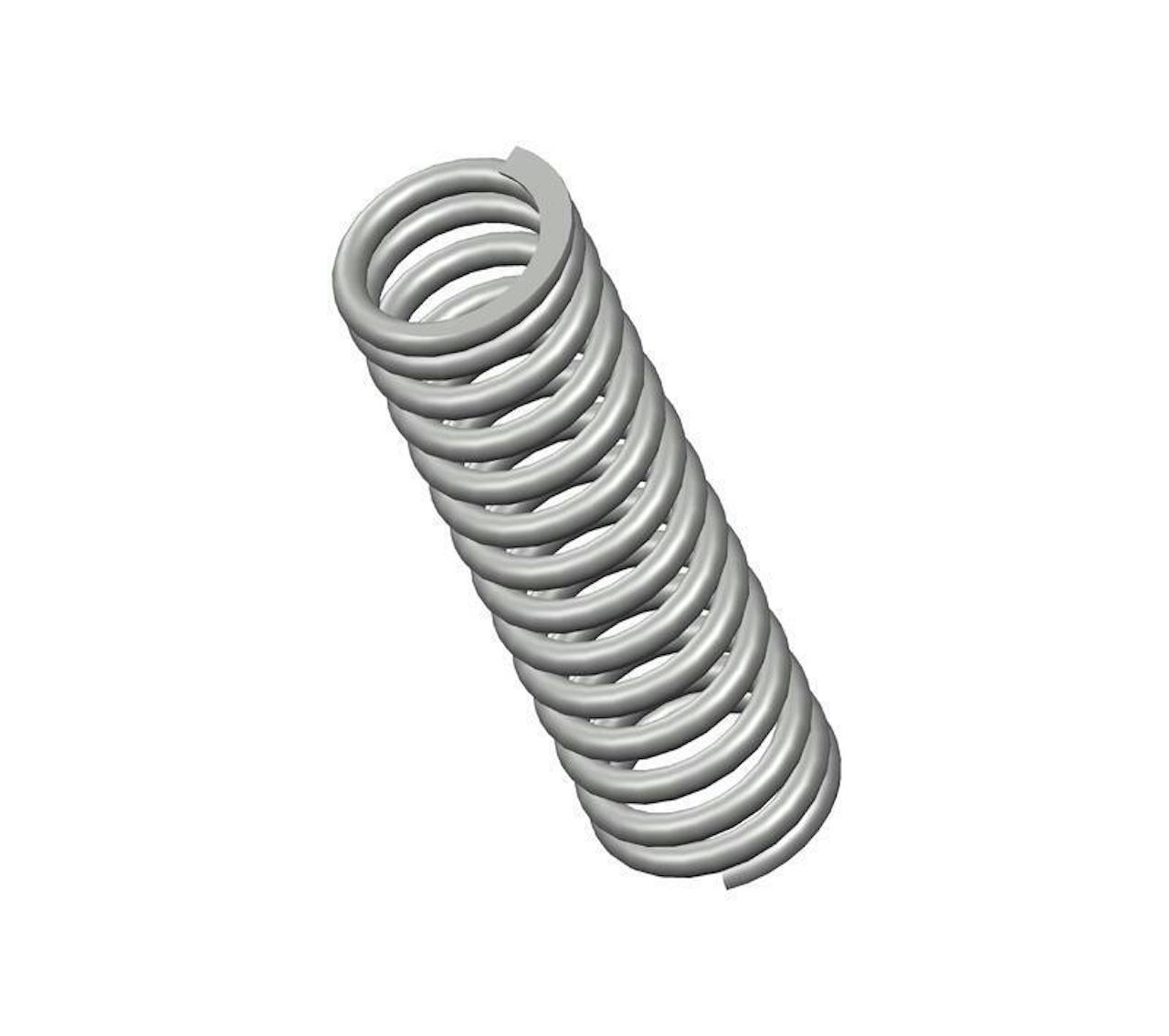

73632CS - 16" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 14.4 coils and closed & ground ends. This spring features an O.D. of 4.687", and an I.D. of 3.437".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73632
Ends Closed & Ground
Finish None
Free Length 16 in
Inside Diameter 3.437 in
Material Oil Tempered
Outside Diameter 4.687 in
Part Type Standard
Rate 263 lbs/in
SKU 73632CS
Solid Length 9.03 in
Suggested Max Deflection 4.9 in
Suggested Max Load 1294 lbf
Total Coils 14.4
Wire Diameter 0.625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73632
Ends Closed & Ground
Finish None
Free Length 406.4 mm
Inside Diameter 87.3 mm
Material Oil Tempered
Outside Diameter 119.05 mm
Part Type Standard
Rate 46.05 N/mm
SKU 73632CS
Solid Length 229.36 mm
Suggested Max Deflection 124.46 mm
Suggested Max Load 5755.71 N
Total Coils 14.4
Wire Diameter 15.88 mm
The compression spring 73632CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73632 compression spring design exhibits exceptional tensile strength and resilience.

The 73632 design is manufactured with a free length of 16", with an outer diameter of 4.687", an inner diameter of 3.437", and a total of 14.4 coils, expertly designed to deliver consistent compression characteristics including a rate of 263 lbs/in.

The 73632CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73632 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
