Century Spring

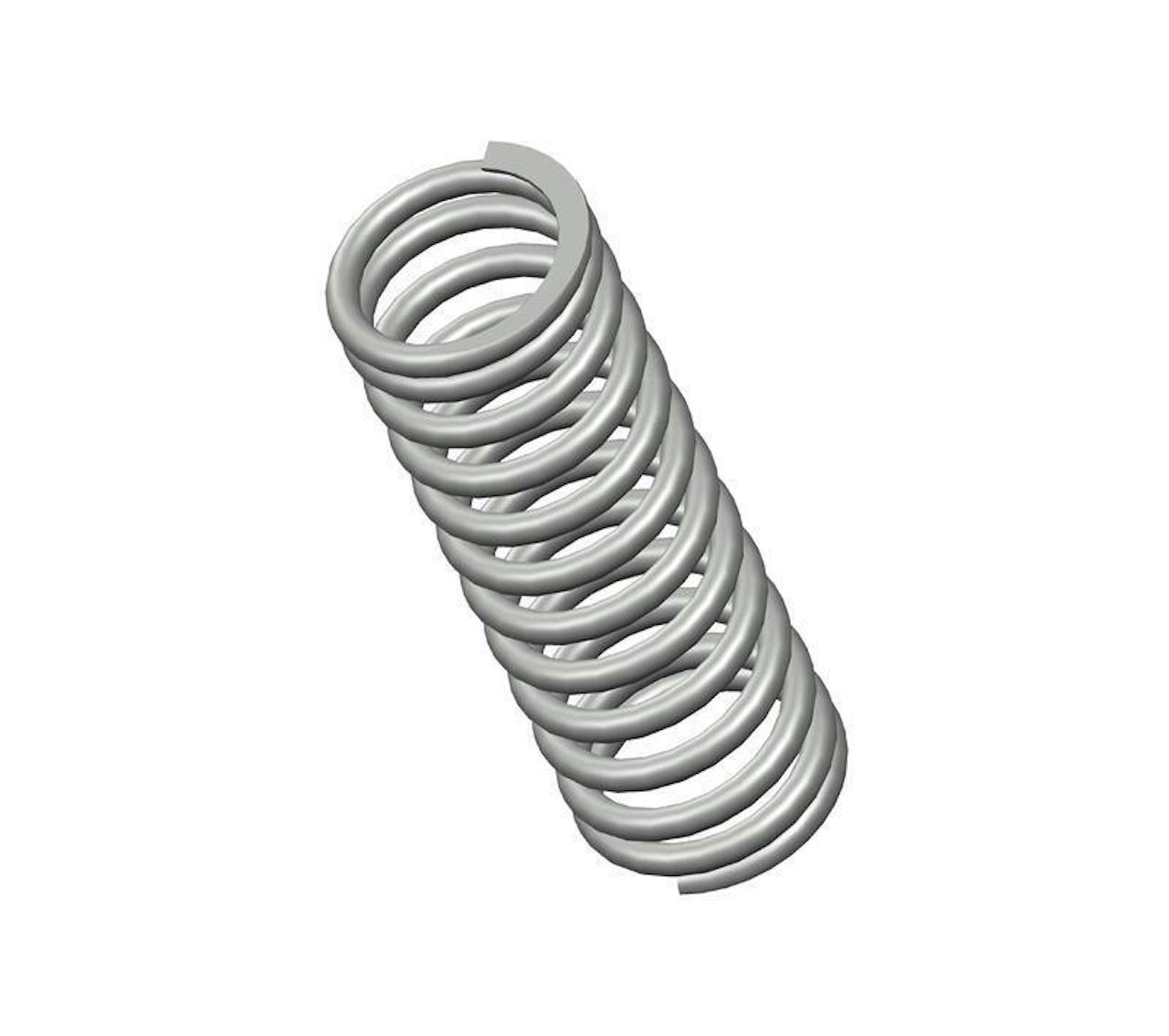

73619CS - 14" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 12.5 coils and closed & ground ends. This spring features an O.D. of 4.687", and an I.D. of 3.563".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73619
Ends Closed & Ground
Finish None
Free Length 14 in
Inside Diameter 3.563 in
Material Oil Tempered
Outside Diameter 4.687 in
Part Type Standard
Rate 195 lbs/in
SKU 73619CS
Solid Length 7.02 in
Suggested Max Deflection 5 in
Suggested Max Load 968 lbf
Total Coils 12.5
Wire Diameter 0.562 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73619
Ends Closed & Ground
Finish None
Free Length 355.6 mm
Inside Diameter 90.5 mm
Material Oil Tempered
Outside Diameter 119.05 mm
Part Type Standard
Rate 34.14 N/mm
SKU 73619CS
Solid Length 178.31 mm
Suggested Max Deflection 127 mm
Suggested Max Load 4305.66 N
Total Coils 12.5
Wire Diameter 14.27 mm
The 73619CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.562" diameter oil tempered, the 73619 spring design exhibits reliable strength across its 12.5 active coils, withstanding repeated compression cycles with a maximum load of 968 lbf without succumbing to fatigue.

We manufacture the 73619 design to provide a compression spring that is 14" long at rest and provides a consistent rate of 195 lbs/in along its recommended maximum of 5" deflection. For best results, your application should fully accommodate the inner (3.563") and outer (4.687") diameters of this spring and be designed for its closed & ground end configuration.
