Century Spring

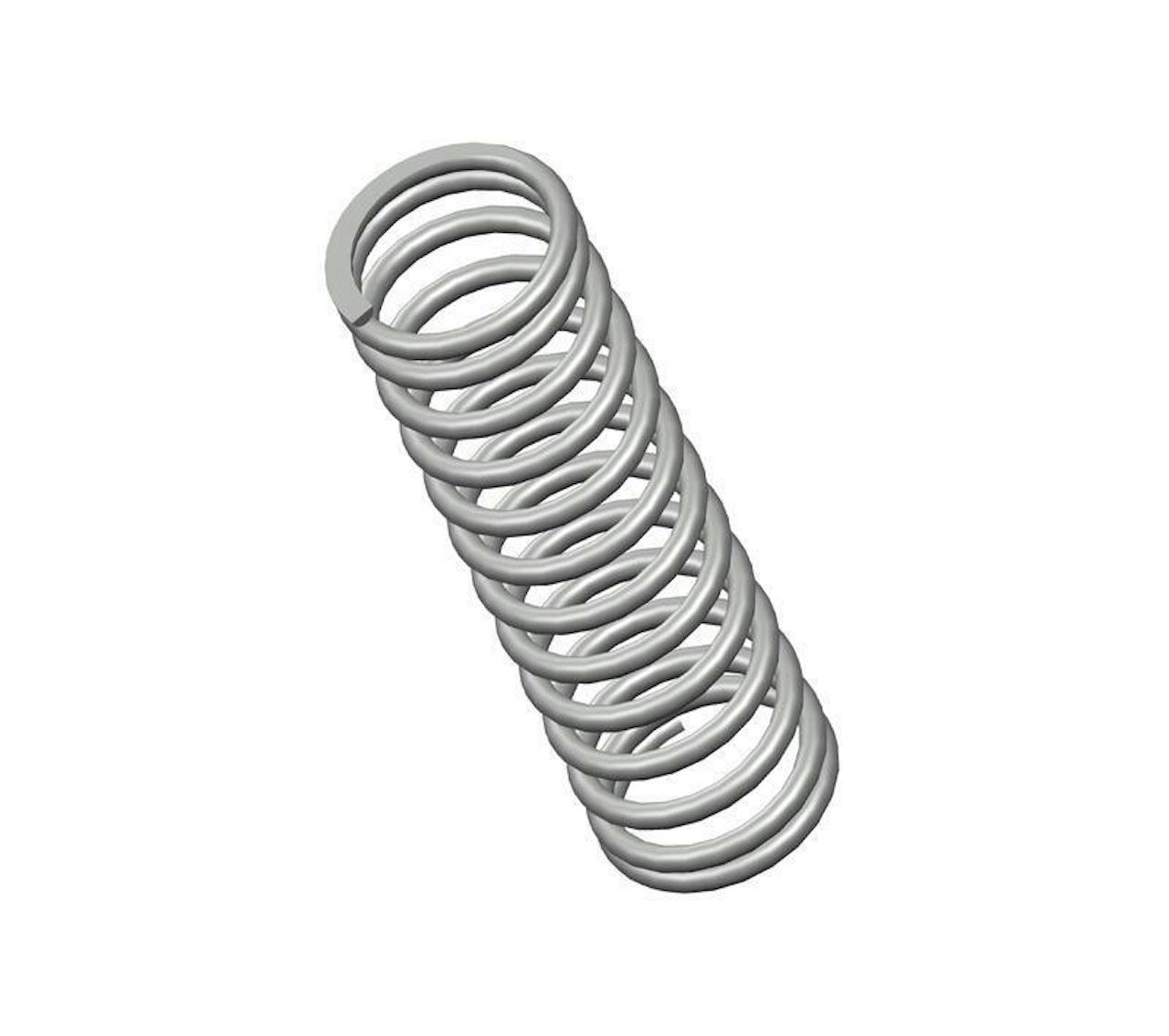

73608CS - 16" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 13.3 coils and closed & ground ends. This spring features an O.D. of 4.687", and an I.D. of 3.687".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73608
Ends Closed & Ground
Finish None
Free Length 16 in
Inside Diameter 3.687 in
Material Oil Tempered
Outside Diameter 4.687 in
Part Type Standard
Rate 109 lbs/in
SKU 73608CS
Solid Length 6.63 in
Suggested Max Deflection 6.4 in
Suggested Max Load 696 lbf
Total Coils 13.3
Wire Diameter 0.5 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73608
Ends Closed & Ground
Finish None
Free Length 406.4 mm
Inside Diameter 93.65 mm
Material Oil Tempered
Outside Diameter 119.05 mm
Part Type Standard
Rate 19.09 N/mm
SKU 73608CS
Solid Length 168.4 mm
Suggested Max Deflection 162.56 mm
Suggested Max Load 3095.81 N
Total Coils 13.3
Wire Diameter 12.7 mm
The compression spring 73608CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73608 compression spring design exhibits exceptional tensile strength and resilience.

The 73608 design is manufactured with a free length of 16", with an outer diameter of 4.687", an inner diameter of 3.687", and a total of 13.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 109 lbs/in.

The 73608CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73608 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
