73596CS - 16" Oil Tempered Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

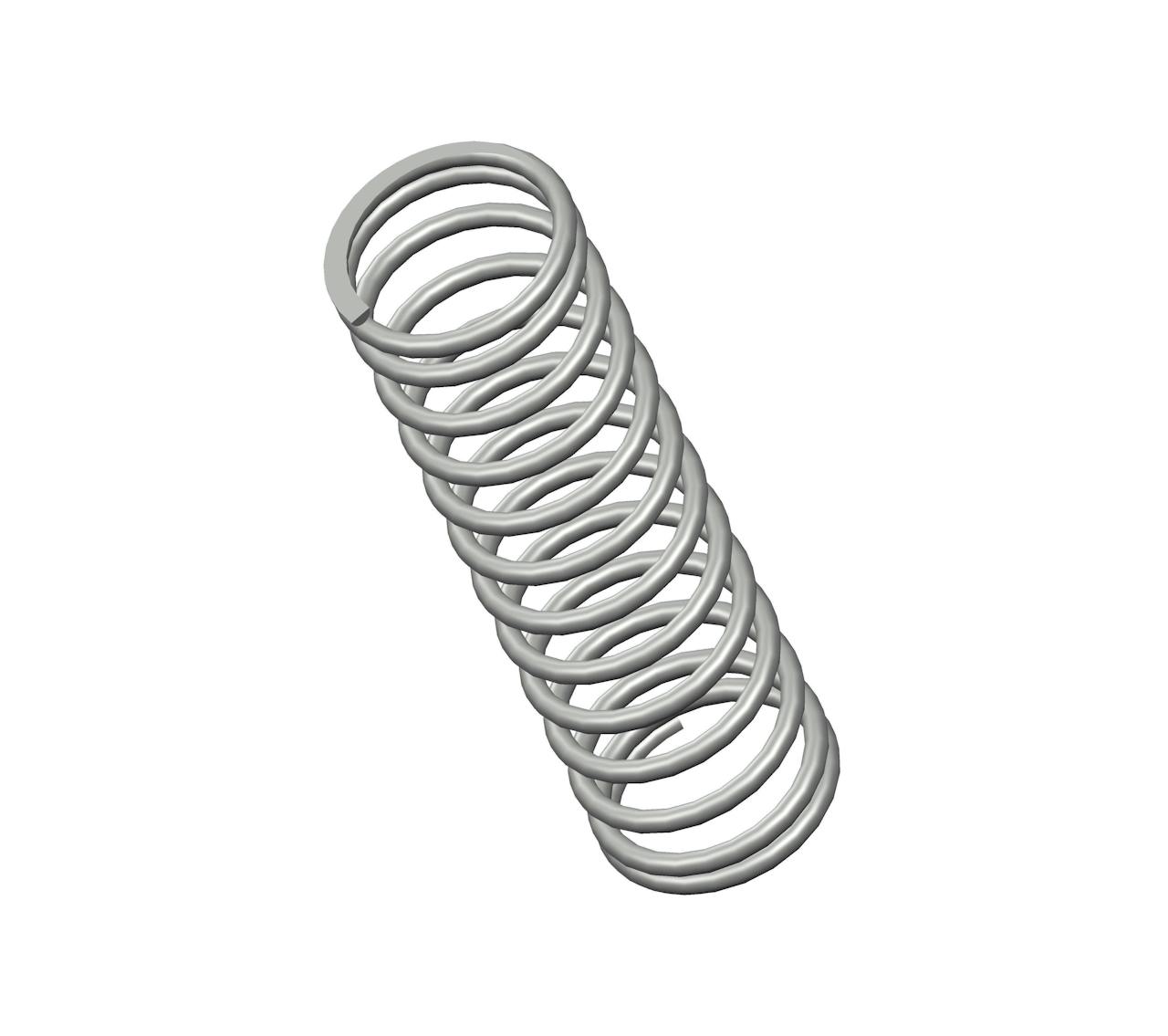

Compression spring manufactured from oil tempered with 13.3 coils and closed & ground ends. This spring features an O.D. of 4.687", and an I.D. of 3.813".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73596 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 16 in |
| Inside Diameter | 3.813 in |
| Material | Oil Tempered |
| Outside Diameter | 4.687 in |
| Part Type | Standard |
| Rate | 61 lbs/in |
| SKU | 73596CS |
| Solid Length | 5.79 in |
| Suggested Max Deflection | 8 in |
| Suggested Max Load | 486 lbf |
| Total Coils | 13.3 |
| Wire Diameter | 0.437 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73596 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 406.4 mm |
| Inside Diameter | 96.85 mm |
| Material | Oil Tempered |
| Outside Diameter | 119.05 mm |
| Part Type | Standard |
| Rate | 10.68 N/mm |
| SKU | 73596CS |
| Solid Length | 147.07 mm |
| Suggested Max Deflection | 203.2 mm |
| Suggested Max Load | 2161.73 N |
| Total Coils | 13.3 |
| Wire Diameter | 11.1 mm |
The compression spring 73596CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73596 compression spring design exhibits exceptional tensile strength and resilience.
The 73596 design is manufactured with a free length of 16", with an outer diameter of 4.687", an inner diameter of 3.813", and a total of 13.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 61 lbs/in.
The 73596CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 73596 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
