Century Spring

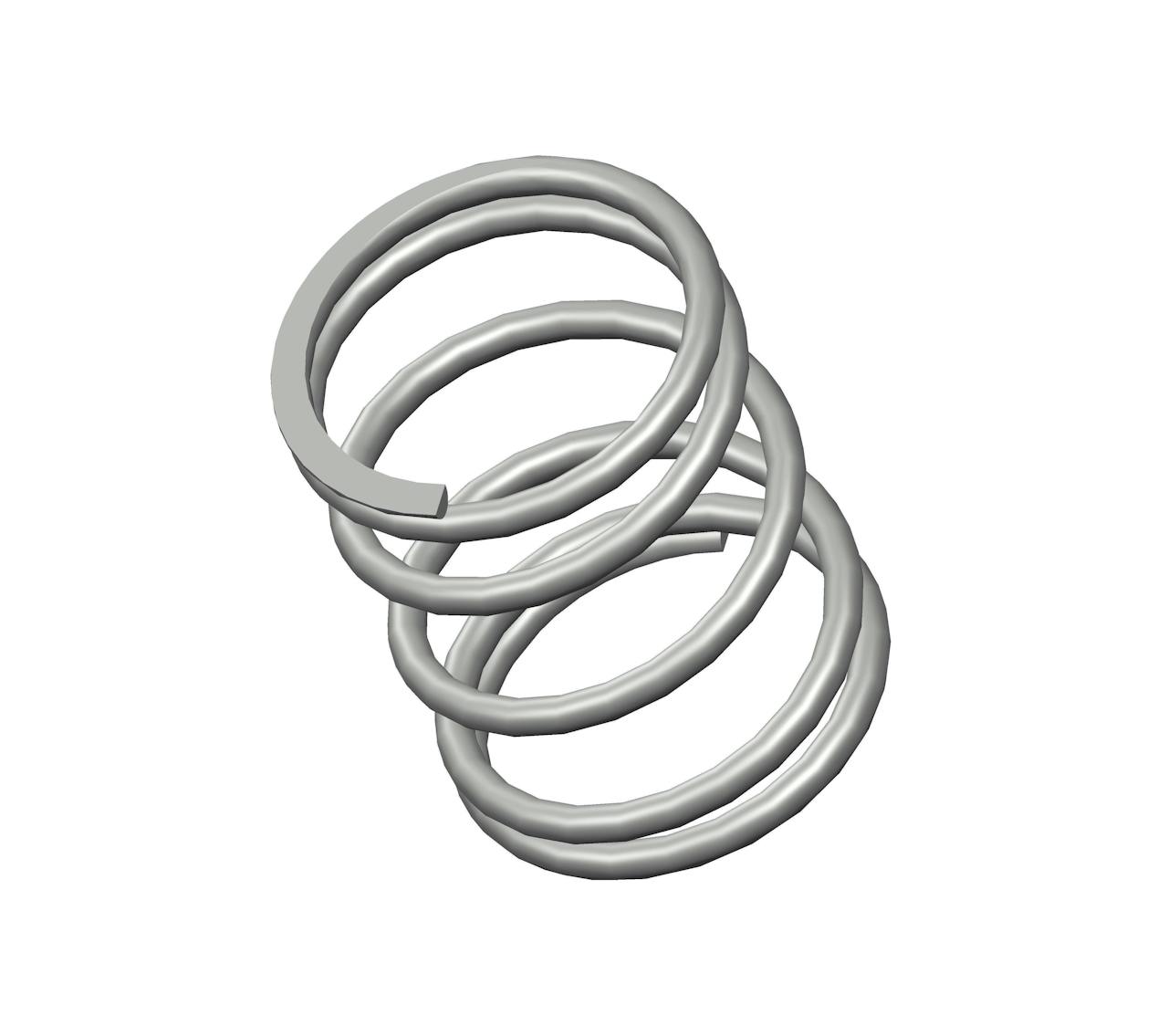

73579CS - 6" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 5.5 coils and closed & ground ends. This spring features an O.D. of 4.687", and an I.D. of 3.901".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73579
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 3.901 in
Material Oil Tempered
Outside Diameter 4.687 in
Part Type Standard
Rate 124 lbs/in
SKU 73579CS
Solid Length 2.16 in
Suggested Max Deflection 2.9 in
Suggested Max Load 364 lbf
Total Coils 5.5
Wire Diameter 0.393 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73579
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 99.09 mm
Material Oil Tempered
Outside Diameter 119.05 mm
Part Type Standard
Rate 21.71 N/mm
SKU 73579CS
Solid Length 54.86 mm
Suggested Max Deflection 73.66 mm
Suggested Max Load 1619.07 N
Total Coils 5.5
Wire Diameter 9.98 mm
The 73579 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73579CS compression spring is designed with a free length of 16" total of 15.3 coils, and a rate of 306 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73579 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
