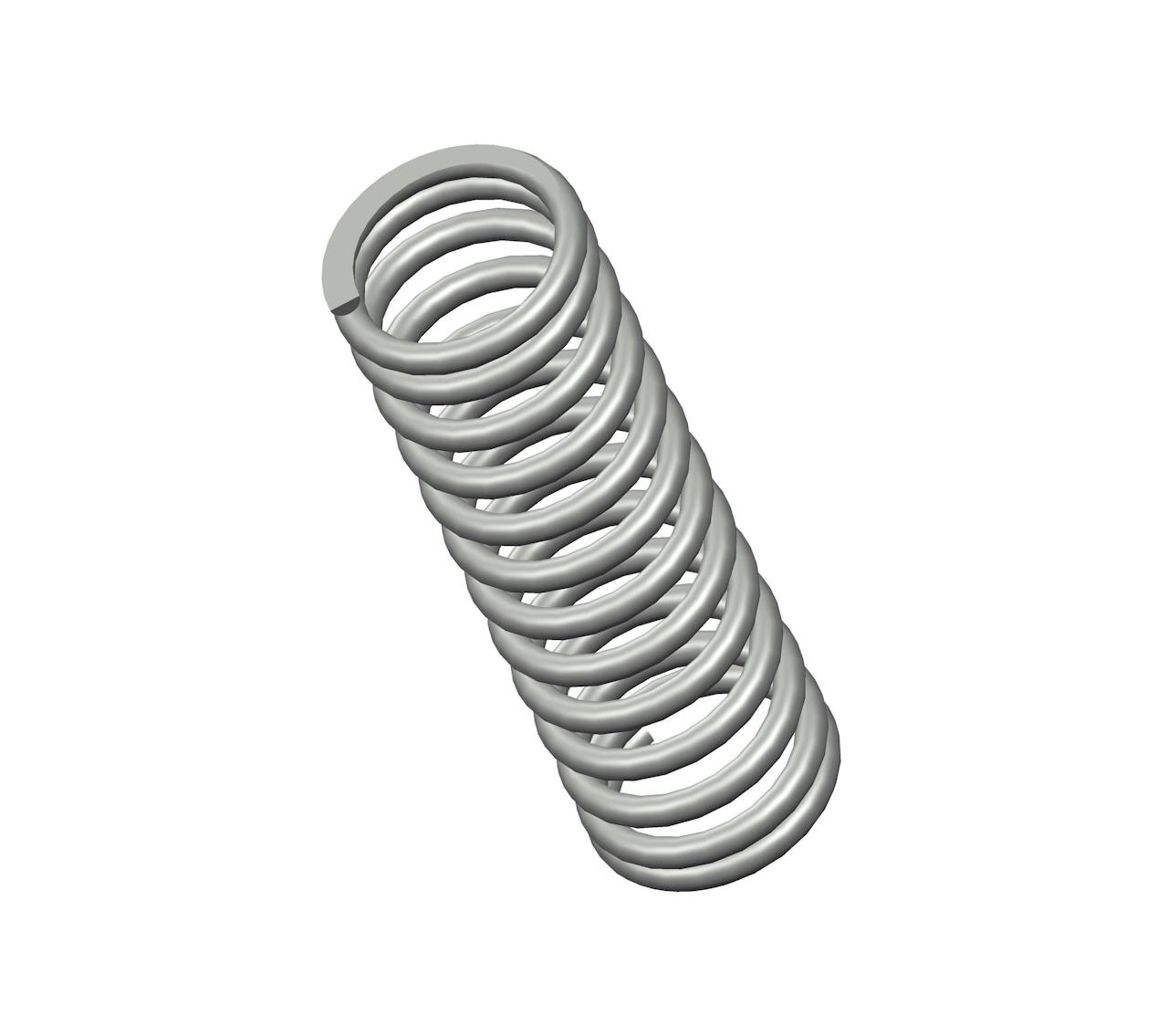

73559CS - 14" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from oil tempered with 13.2 coils and closed & ground ends. This spring features an O.D. of 4.406", and an I.D. of 3.344".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73559 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 14 in |
| Inside Diameter | 3.344 in |
| Material | Oil Tempered |
| Outside Diameter | 4.406 in |
| Part Type | Standard |
| Rate | 175 lbs/in |
| SKU | 73559CS |
| Solid Length | 7.02 in |
| Suggested Max Deflection | 5 in |
| Suggested Max Load | 879 lbf |
| Total Coils | 13.2 |
| Wire Diameter | 0.531 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73559 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 355.6 mm |
| Inside Diameter | 84.94 mm |
| Material | Oil Tempered |
| Outside Diameter | 111.91 mm |
| Part Type | Standard |
| Rate | 30.64 N/mm |
| SKU | 73559CS |
| Solid Length | 178.31 mm |
| Suggested Max Deflection | 127 mm |
| Suggested Max Load | 3909.79 N |
| Total Coils | 13.2 |
| Wire Diameter | 13.49 mm |
The 73559CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.531" diameter oil tempered, the 73559 spring design exhibits reliable strength across its 13.2 active coils, withstanding repeated compression cycles with a maximum load of 879 lbf without succumbing to fatigue.
We manufacture the 73559 design to provide a compression spring that is 14" long at rest and provides a consistent rate of 175 lbs/in along its recommended maximum of 5" deflection. For best results, your application should fully accommodate the inner (3.344") and outer (4.406") diameters of this spring and be designed for its closed & ground end configuration.
