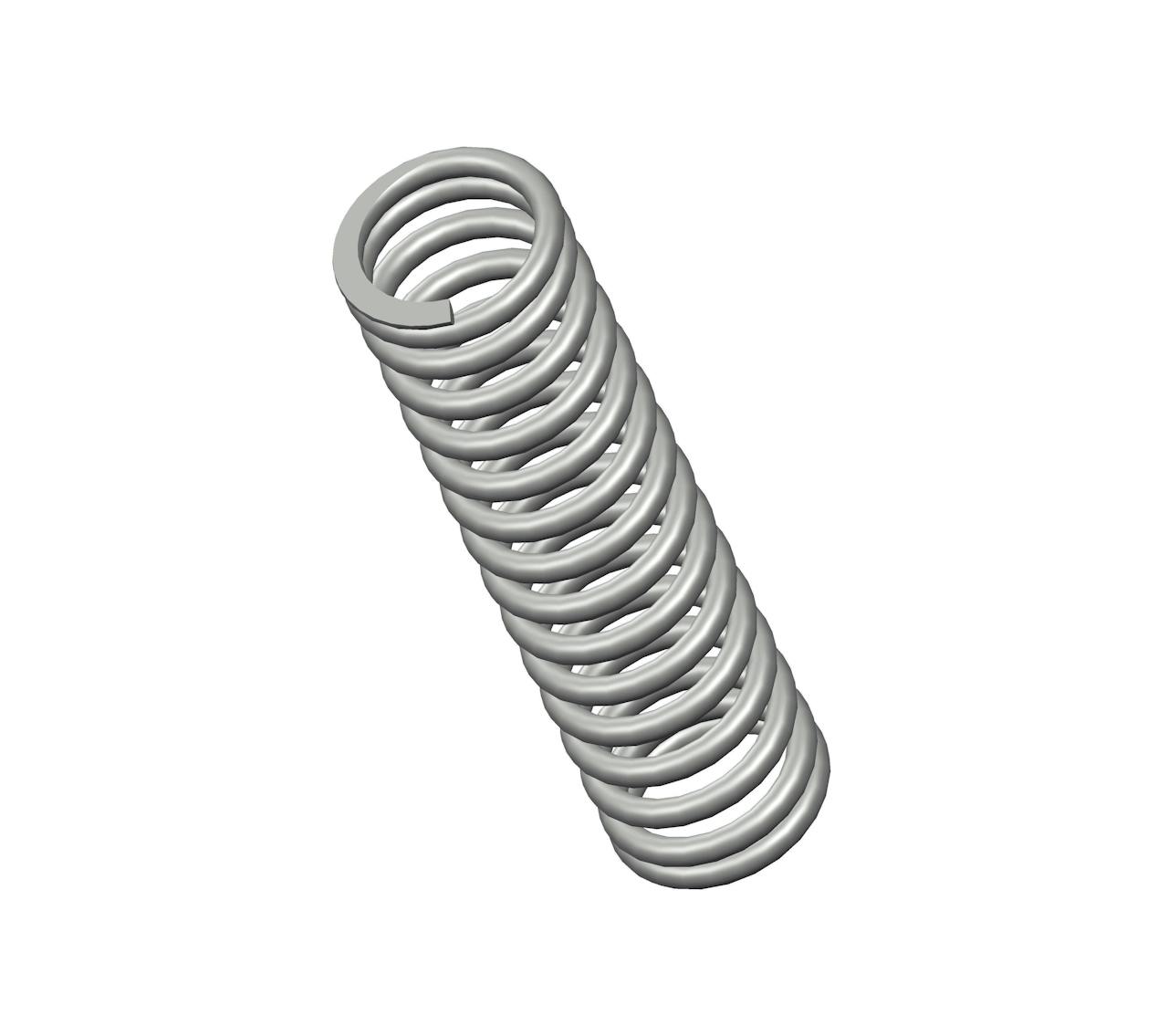

73524CS - 16" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from oil tempered with 15.6 coils and closed & ground ends. This spring features an O.D. of 4.156", and an I.D. of 3.094".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73524 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 16 in |
| Inside Diameter | 3.094 in |
| Material | Oil Tempered |
| Outside Diameter | 4.156 in |
| Part Type | Standard |
| Rate | 176 lbs/in |
| SKU | 73524CS |
| Solid Length | 8.28 in |
| Suggested Max Deflection | 5.3 in |
| Suggested Max Load | 928 lbf |
| Total Coils | 15.6 |
| Wire Diameter | 0.531 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73524 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 406.4 mm |
| Inside Diameter | 78.59 mm |
| Material | Oil Tempered |
| Outside Diameter | 105.56 mm |
| Part Type | Standard |
| Rate | 30.82 N/mm |
| SKU | 73524CS |
| Solid Length | 210.31 mm |
| Suggested Max Deflection | 134.62 mm |
| Suggested Max Load | 4127.74 N |
| Total Coils | 15.6 |
| Wire Diameter | 13.49 mm |
The compression spring 73524CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73524 compression spring design exhibits exceptional tensile strength and resilience.
The 73524 design is manufactured with a free length of 16", with an outer diameter of 4.156", an inner diameter of 3.094", and a total of 15.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 176 lbs/in.
The 73524CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 73524 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 73524 design is manufactured with a free length of 16", with an outer diameter of 4.156", an inner diameter of 3.094", and a total of 15.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 176 lbs/in.
The 73524CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 73524 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
