Century Spring

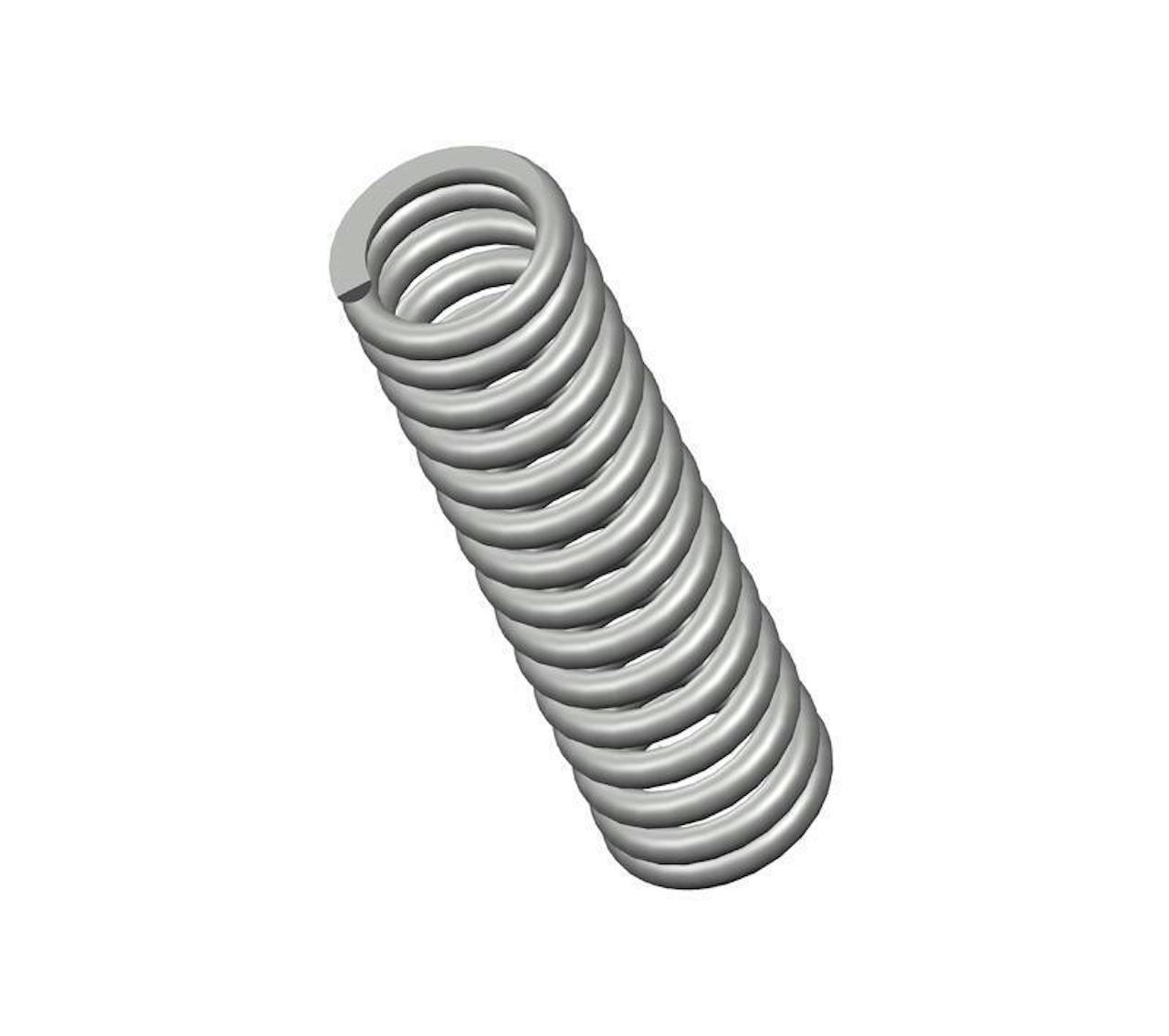

73475CS - 14" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 15.2 coils and closed & ground ends. This spring features an O.D. of 3.906", and an I.D. of 2.72".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73475
Ends Closed & Ground
Finish None
Free Length 14 in
Inside Diameter 2.72 in
Material Oil Tempered
Outside Diameter 3.906 in
Part Type Standard
Rate 369 lbs/in
SKU 73475CS
Solid Length 9.04 in
Suggested Max Deflection 3.6 in
Suggested Max Load 1310 lbf
Total Coils 15.2
Wire Diameter 0.593 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73475
Ends Closed & Ground
Finish None
Free Length 355.6 mm
Inside Diameter 69.09 mm
Material Oil Tempered
Outside Diameter 99.21 mm
Part Type Standard
Rate 64.61 N/mm
SKU 73475CS
Solid Length 229.62 mm
Suggested Max Deflection 91.44 mm
Suggested Max Load 5826.88 N
Total Coils 15.2
Wire Diameter 15.06 mm
The 73475CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.593" diameter oil tempered, the 73475 spring design exhibits reliable strength across its 15.2 active coils, withstanding repeated compression cycles with a maximum load of 1310 lbf without succumbing to fatigue.

We manufacture the 73475 design to provide a compression spring that is 14" long at rest and provides a consistent rate of 369 lbs/in along its recommended maximum of 3.6" deflection. For best results, your application should fully accommodate the inner (2.72") and outer (3.906") diameters of this spring and be designed for its closed & ground end configuration.
