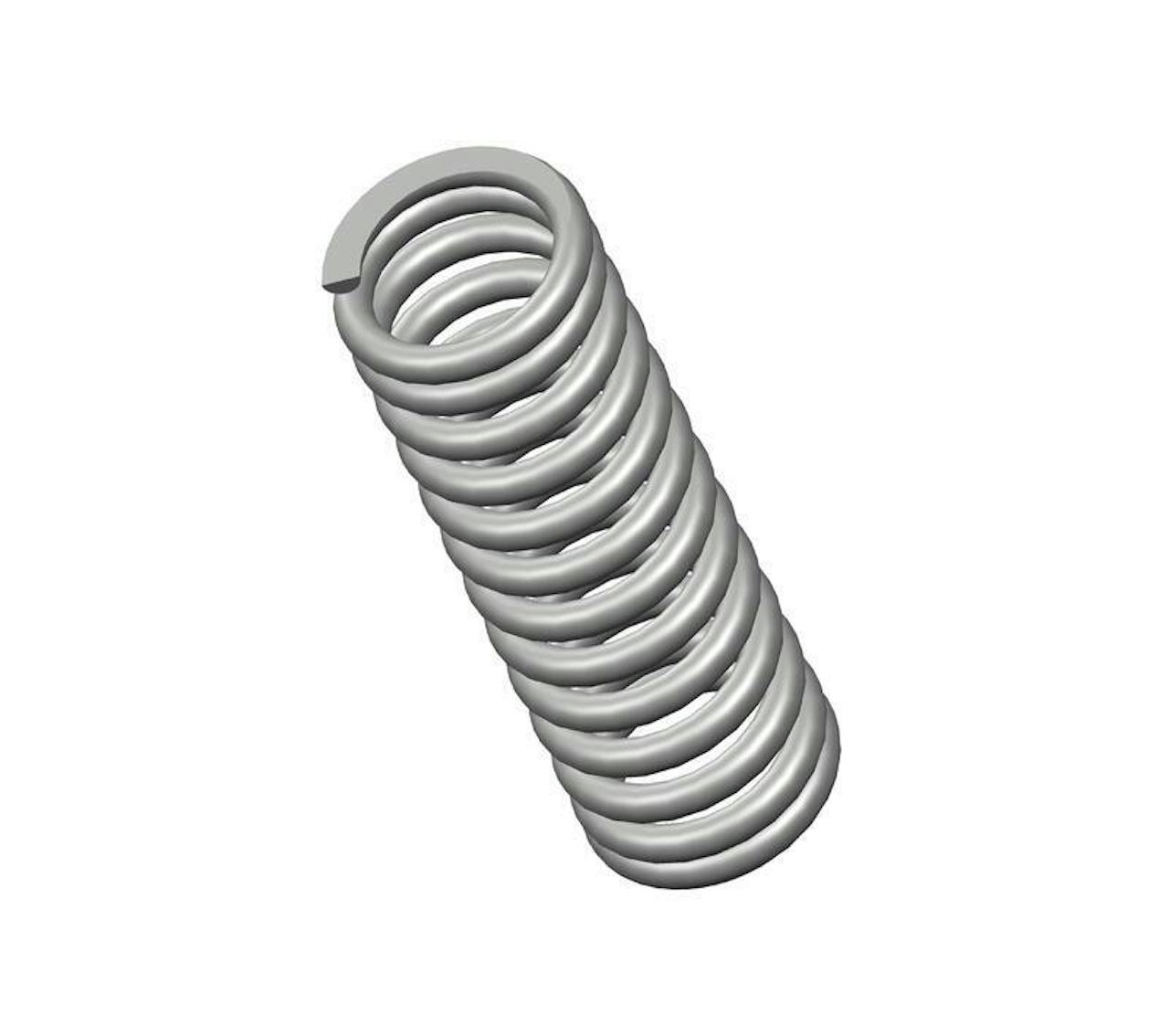

73468CS - 12" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 13.1 coils and closed & ground ends. This spring features an O.D. of 3.906", and an I.D. of 2.782".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73468
Ends Closed & Ground
Finish None
Free Length 12 in
Inside Diameter 2.782 in
Material Oil Tempered
Outside Diameter 3.906 in
Part Type Standard
Rate 345 lbs/in
SKU 73468CS
Solid Length 7.37 in
Suggested Max Deflection 3.3 in
Suggested Max Load 1144 lbf
Total Coils 13.1
Wire Diameter 0.562 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73468
Ends Closed & Ground
Finish None
Free Length 304.8 mm
Inside Diameter 70.66 mm
Material Oil Tempered
Outside Diameter 99.21 mm
Part Type Standard
Rate 60.41 N/mm
SKU 73468CS
Solid Length 187.2 mm
Suggested Max Deflection 83.82 mm
Suggested Max Load 5088.51 N
Total Coils 13.1
Wire Diameter 14.27 mm
The 73468 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73468CS compression spring is designed with a free length of 10" total of 11.1 coils, and a rate of 420 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73468 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
