Century Spring

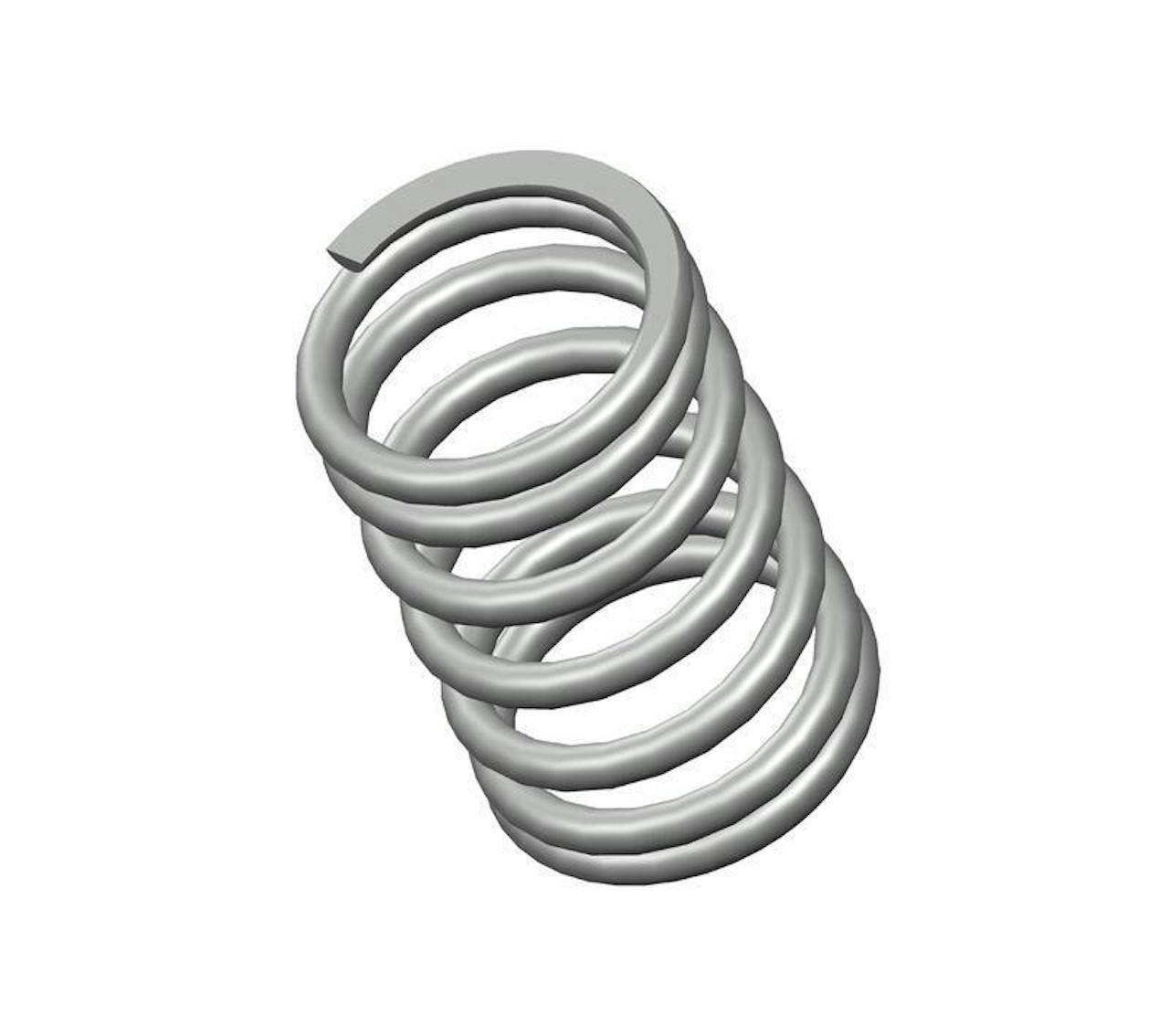

73441CS - 6" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 6.87 coils and closed & ground ends. This spring features an O.D. of 3.906", and an I.D. of 3.032".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73441
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 3.032 in
Material Oil Tempered
Outside Diameter 3.906 in
Part Type Standard
Rate 258 lbs/in
SKU 73441CS
Solid Length 3 in
Suggested Max Deflection 2.2 in
Suggested Max Load 577 lbf
Total Coils 6.87
Wire Diameter 0.437 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73441
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 77.01 mm
Material Oil Tempered
Outside Diameter 99.21 mm
Part Type Standard
Rate 45.18 N/mm
SKU 73441CS
Solid Length 76.2 mm
Suggested Max Deflection 55.88 mm
Suggested Max Load 2566.5 N
Total Coils 6.87
Wire Diameter 11.1 mm
The 73441 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73441CS compression spring is designed with a free length of 16" total of 16.2 coils, and a rate of 64 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73441 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
