Century Spring

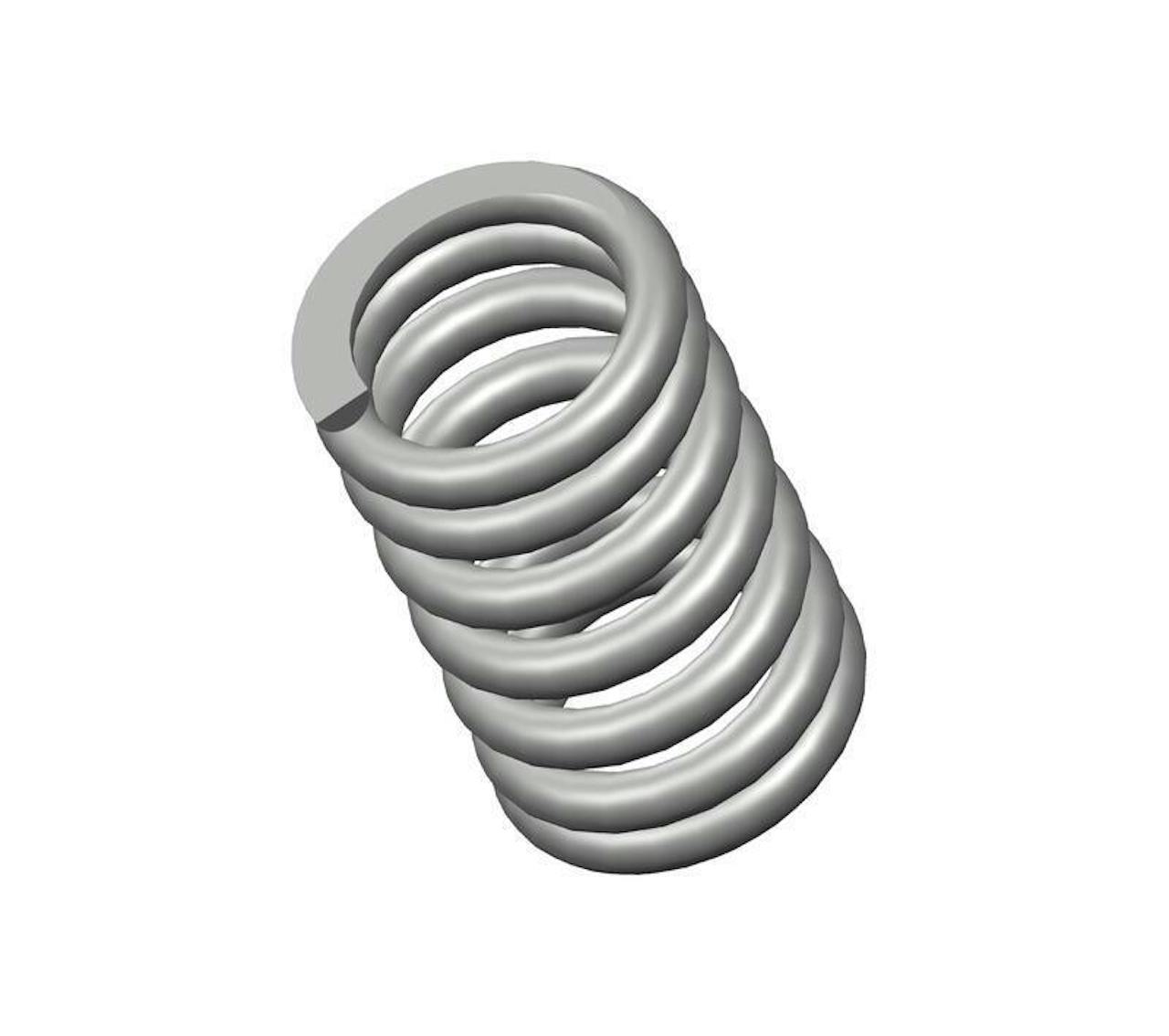

73411CS - 6" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 7.25 coils and closed & ground ends. This spring features an O.D. of 3.656", and an I.D. of 2.532".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73411
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 2.532 in
Material Oil Tempered
Outside Diameter 3.656 in
Part Type Standard
Rate 922 lbs/in
SKU 73411CS
Solid Length 4.07 in
Suggested Max Deflection 1.3 in
Suggested Max Load 1214 lbf
Total Coils 7.25
Wire Diameter 0.562 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73411
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 64.31 mm
Material Oil Tempered
Outside Diameter 92.86 mm
Part Type Standard
Rate 161.44 N/mm
SKU 73411CS
Solid Length 103.38 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 5399.87 N
Total Coils 7.25
Wire Diameter 14.27 mm
The 73411 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73411CS compression spring is designed with a free length of 16" total of 17.8 coils, and a rate of 236 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73411 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
