Century Spring

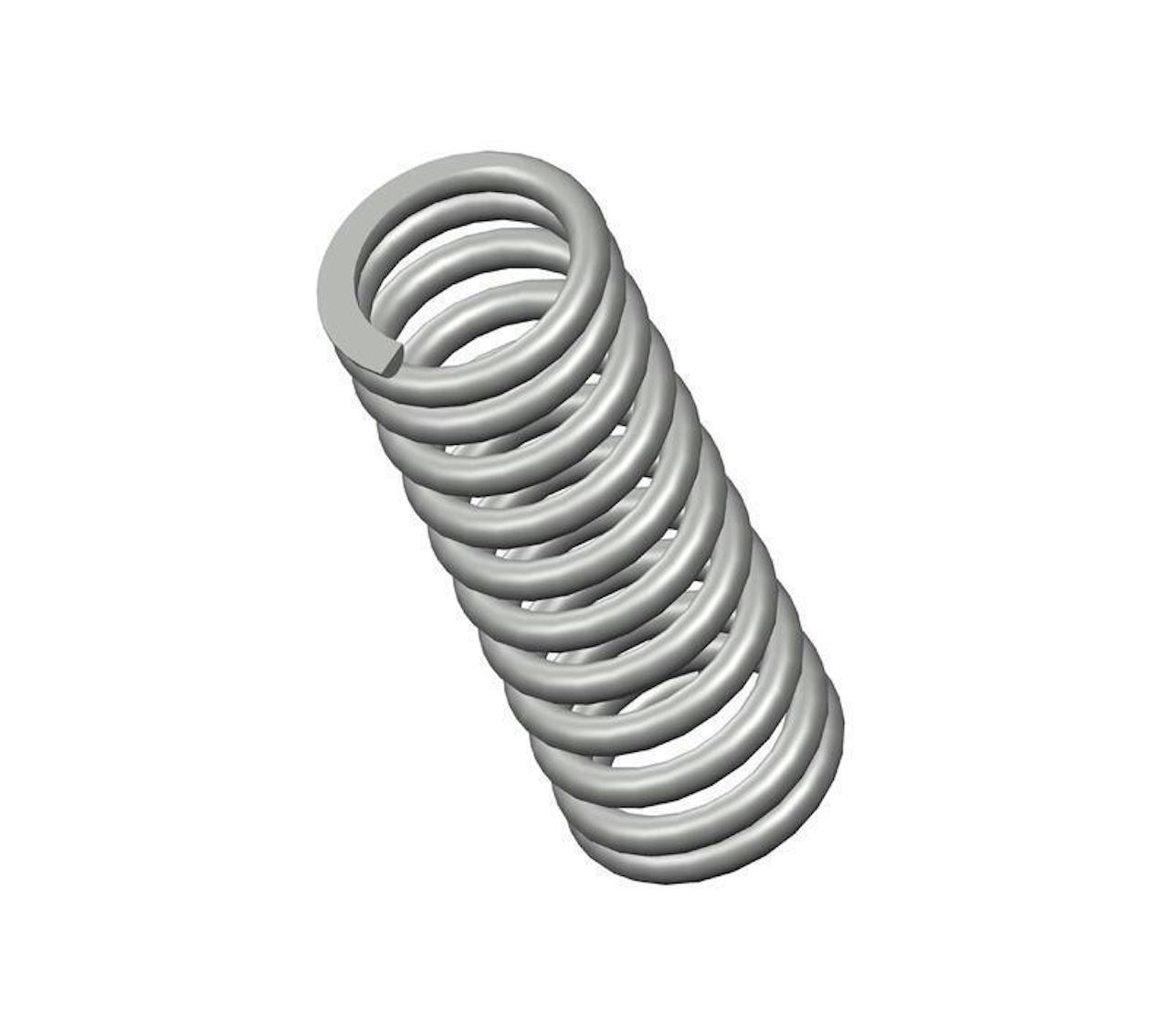

73401CS - 10" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 11.4 coils and closed & ground ends. This spring features an O.D. of 3.656", and an I.D. of 2.656".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73401
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.656 in
Material Oil Tempered
Outside Diameter 3.656 in
Part Type Standard
Rate 304 lbs/in
SKU 73401CS
Solid Length 5.7 in
Suggested Max Deflection 2.9 in
Suggested Max Load 876 lbf
Total Coils 11.4
Wire Diameter 0.5 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73401
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 67.46 mm
Material Oil Tempered
Outside Diameter 92.86 mm
Part Type Standard
Rate 53.23 N/mm
SKU 73401CS
Solid Length 144.78 mm
Suggested Max Deflection 73.66 mm
Suggested Max Load 3896.45 N
Total Coils 11.4
Wire Diameter 12.7 mm
The compression spring 73401CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73401 compression spring design exhibits exceptional tensile strength and resilience.

The 73401 design is manufactured with a free length of 10", with an outer diameter of 3.656", an inner diameter of 2.656", and a total of 11.4 coils, expertly designed to deliver consistent compression characteristics including a rate of 304 lbs/in.

The 73401CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73401 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
