Century Spring

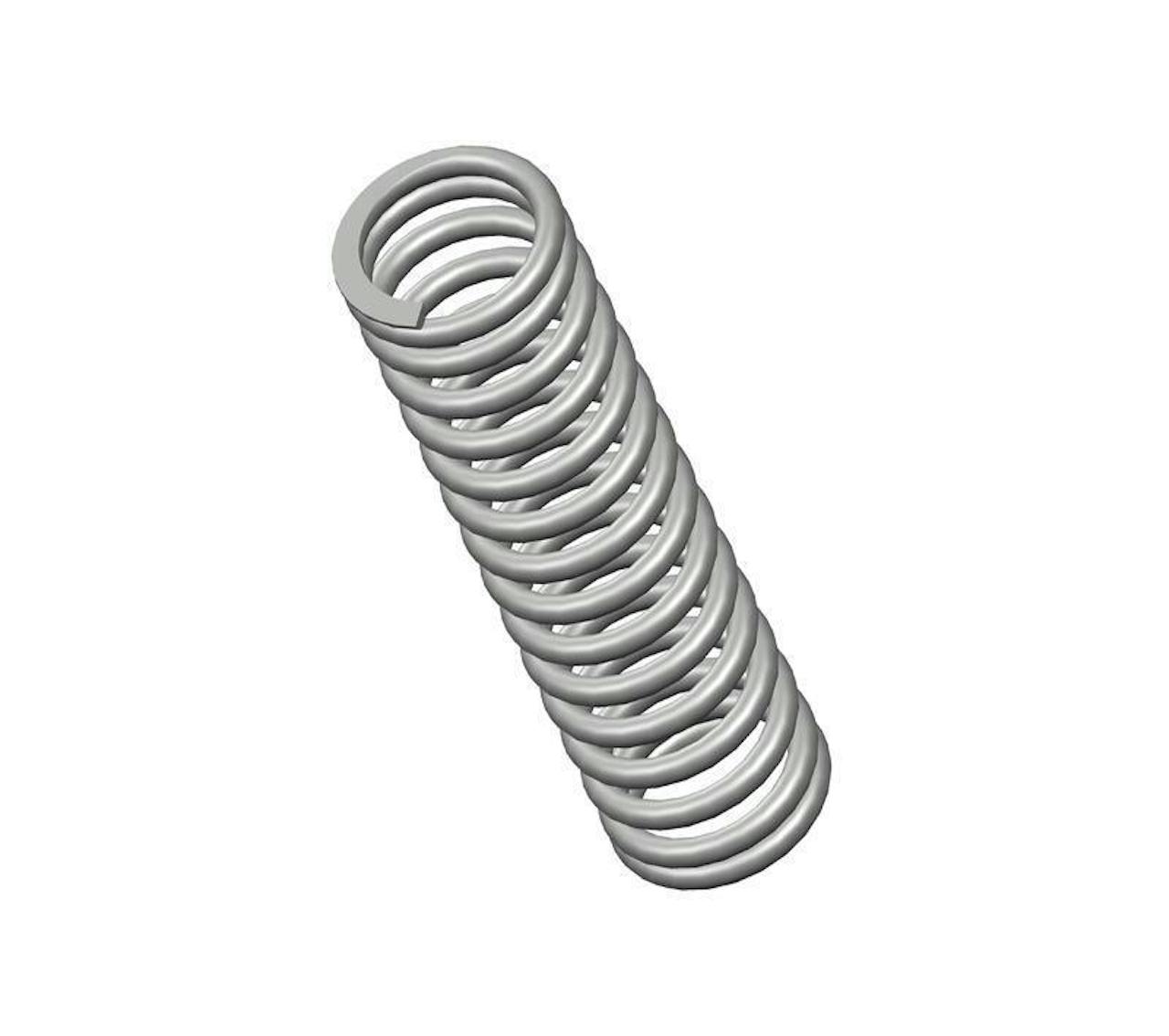

73397CS - 14" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 15.5 coils and closed & ground ends. This spring features an O.D. of 3.656", and an I.D. of 2.72".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73397
Ends Closed & Ground
Finish None
Free Length 14 in
Inside Diameter 2.72 in
Material Oil Tempered
Outside Diameter 3.656 in
Part Type Standard
Rate 158 lbs/in
SKU 73397CS
Solid Length 7.26 in
Suggested Max Deflection 4.8 in
Suggested Max Load 750 lbf
Total Coils 15.5
Wire Diameter 0.468 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73397
Ends Closed & Ground
Finish None
Free Length 355.6 mm
Inside Diameter 69.09 mm
Material Oil Tempered
Outside Diameter 92.86 mm
Part Type Standard
Rate 27.67 N/mm
SKU 73397CS
Solid Length 184.4 mm
Suggested Max Deflection 121.92 mm
Suggested Max Load 3336 N
Total Coils 15.5
Wire Diameter 11.89 mm
The 73397CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.468" diameter oil tempered, the 73397 spring design exhibits reliable strength across its 15.5 active coils, withstanding repeated compression cycles with a maximum load of 750 lbf without succumbing to fatigue.

We manufacture the 73397 design to provide a compression spring that is 14" long at rest and provides a consistent rate of 158 lbs/in along its recommended maximum of 4.8" deflection. For best results, your application should fully accommodate the inner (2.72") and outer (3.656") diameters of this spring and be designed for its closed & ground end configuration.
