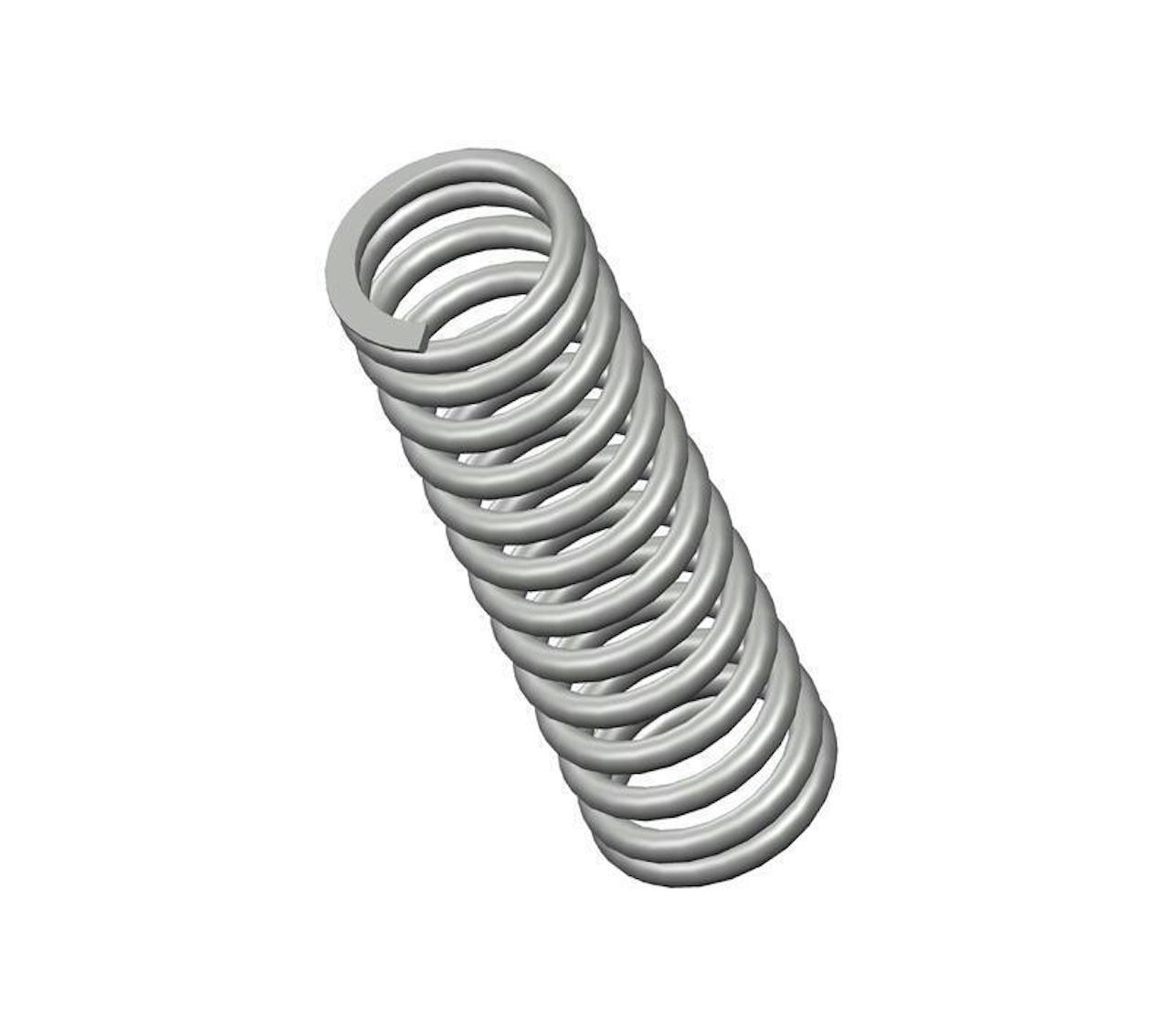

73396CS - 12" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 13.5 coils and closed & ground ends. This spring features an O.D. of 3.656", and an I.D. of 2.72".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73396
Ends Closed & Ground
Finish None
Free Length 12 in
Inside Diameter 2.72 in
Material Oil Tempered
Outside Diameter 3.656 in
Part Type Standard
Rate 185 lbs/in
SKU 73396CS
Solid Length 6.32 in
Suggested Max Deflection 4.1 in
Suggested Max Load 750 lbf
Total Coils 13.5
Wire Diameter 0.468 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73396
Ends Closed & Ground
Finish None
Free Length 304.8 mm
Inside Diameter 69.09 mm
Material Oil Tempered
Outside Diameter 92.86 mm
Part Type Standard
Rate 32.39 N/mm
SKU 73396CS
Solid Length 160.53 mm
Suggested Max Deflection 104.14 mm
Suggested Max Load 3336 N
Total Coils 13.5
Wire Diameter 11.89 mm
The 73396 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73396CS compression spring is designed with a free length of 10" total of 11.4 coils, and a rate of 226 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73396 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
