Century Spring

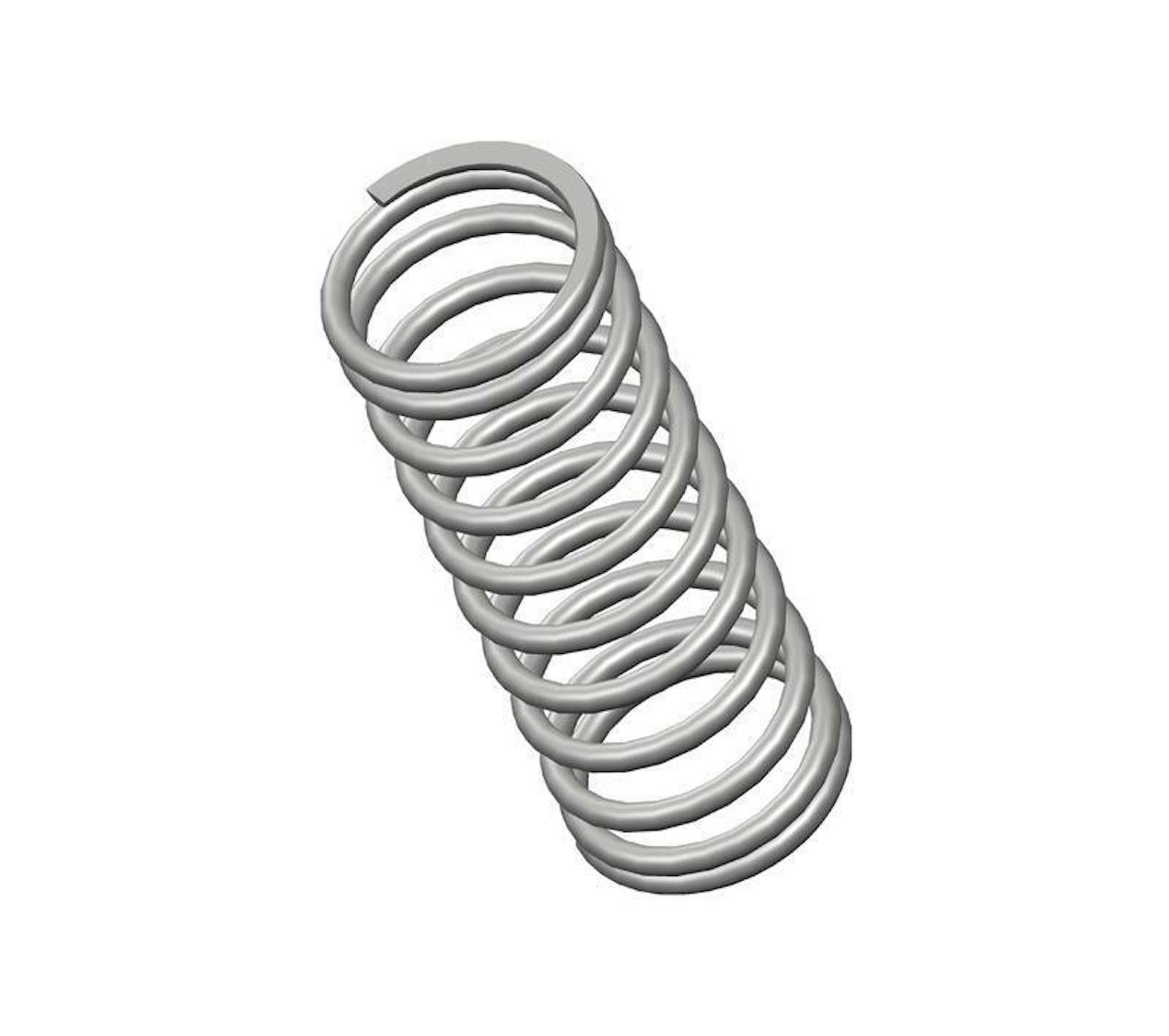

73365CS - 10" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 10.8 coils and closed & ground ends. This spring features an O.D. of 3.656", and an I.D. of 2.932".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73365
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.932 in
Material Oil Tempered
Outside Diameter 3.656 in
Part Type Standard
Rate 78 lbs/in
SKU 73365CS
Solid Length 3.91 in
Suggested Max Deflection 4.7 in
Suggested Max Load 371 lbf
Total Coils 10.8
Wire Diameter 0.362 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73365
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 74.47 mm
Material Oil Tempered
Outside Diameter 92.86 mm
Part Type Standard
Rate 13.66 N/mm
SKU 73365CS
Solid Length 99.31 mm
Suggested Max Deflection 119.38 mm
Suggested Max Load 1650.21 N
Total Coils 10.8
Wire Diameter 9.19 mm
The compression spring 73365CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73365 compression spring design exhibits exceptional tensile strength and resilience.

The 73365 design is manufactured with a free length of 10", with an outer diameter of 3.656", an inner diameter of 2.932", and a total of 10.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 78 lbs/in.

The 73365CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73365 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
