Century Spring

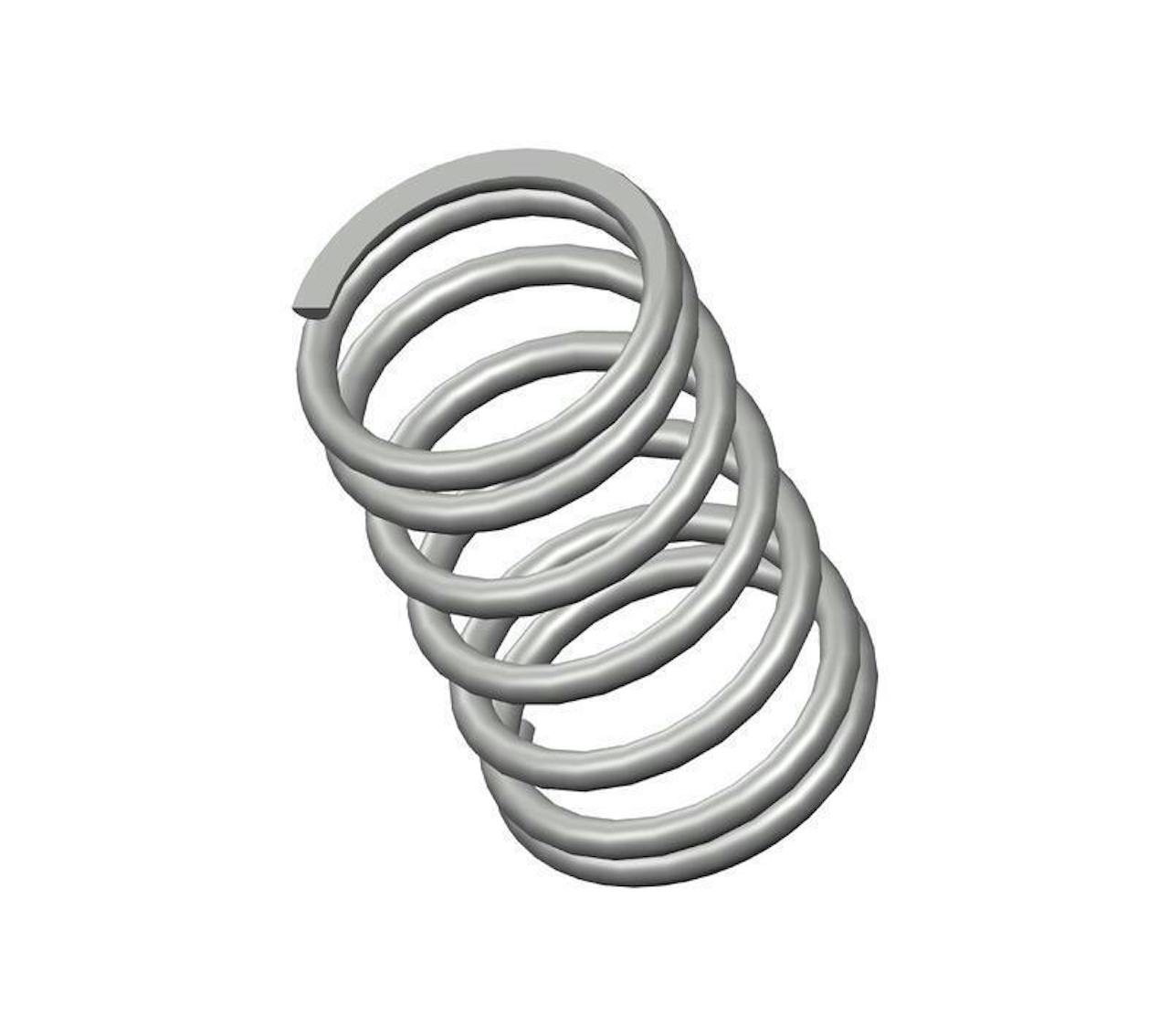

73363CS - 6" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 7 coils and closed & ground ends. This spring features an O.D. of 3.656", and an I.D. of 2.932".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73363
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 2.932 in
Material Oil Tempered
Outside Diameter 3.656 in
Part Type Standard
Rate 138 lbs/in
SKU 73363CS
Solid Length 2.53 in
Suggested Max Deflection 2.7 in
Suggested Max Load 371 lbf
Total Coils 7
Wire Diameter 0.362 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73363
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 74.47 mm
Material Oil Tempered
Outside Diameter 92.86 mm
Part Type Standard
Rate 24.16 N/mm
SKU 73363CS
Solid Length 64.26 mm
Suggested Max Deflection 68.58 mm
Suggested Max Load 1650.21 N
Total Coils 7
Wire Diameter 9.19 mm
The 73363 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73363CS compression spring is designed with a free length of 16" total of 18.7 coils, and a rate of 477 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73363 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
