Century Spring

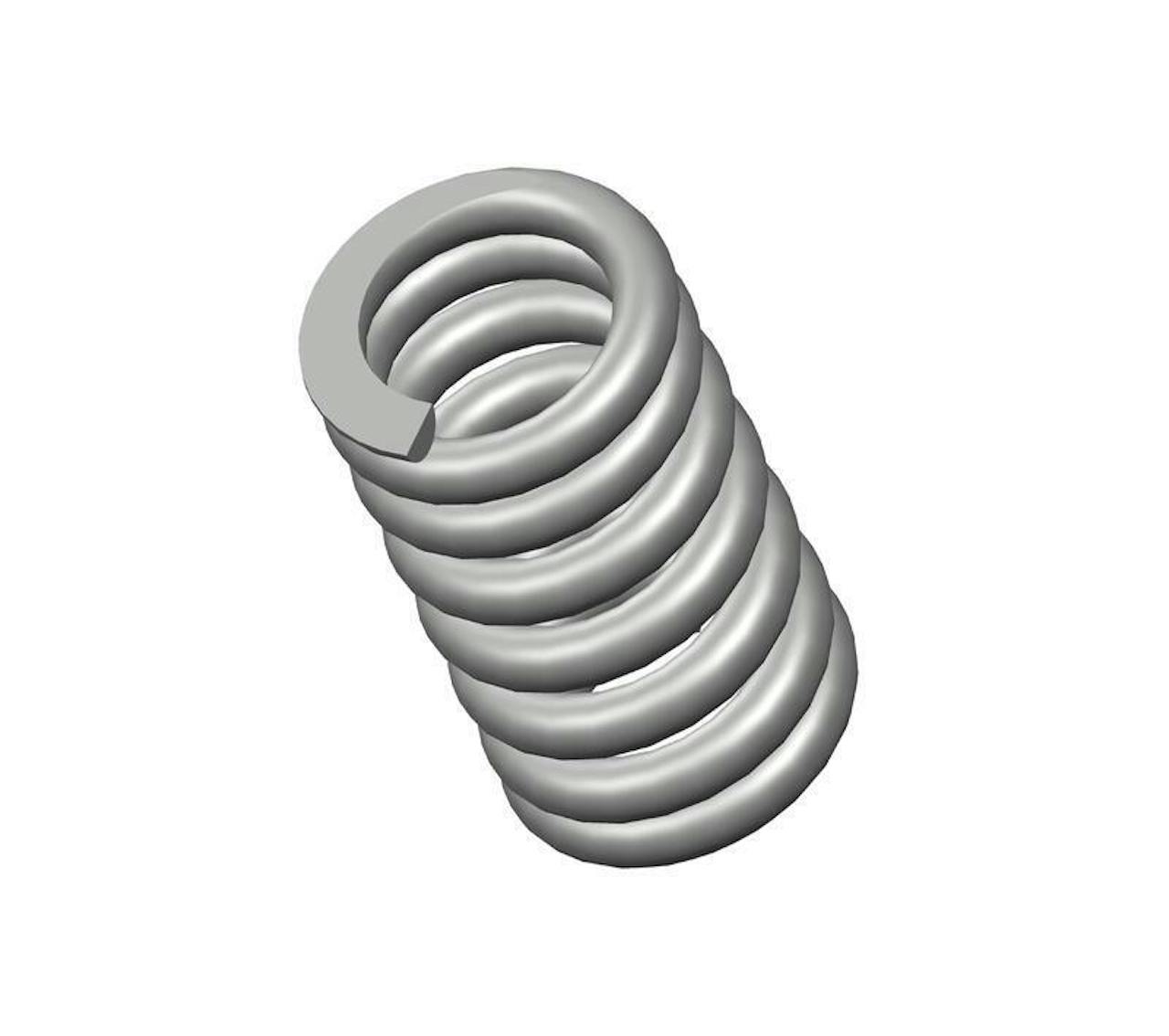

73357CS - 6" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 7.45 coils and closed & ground ends. This spring features an O.D. of 3.406", and an I.D. of 2.22".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73357
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 2.22 in
Material Oil Tempered
Outside Diameter 3.406 in
Part Type Standard
Rate 1465 lbs/in
SKU 73357CS
Solid Length 4.42 in
Suggested Max Deflection 1 in
Suggested Max Load 1477 lbf
Total Coils 7.45
Wire Diameter 0.593 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73357
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 56.39 mm
Material Oil Tempered
Outside Diameter 86.51 mm
Part Type Standard
Rate 256.52 N/mm
SKU 73357CS
Solid Length 112.27 mm
Suggested Max Deflection 25.4 mm
Suggested Max Load 6569.7 N
Total Coils 7.45
Wire Diameter 15.06 mm
The 73357 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73357CS compression spring is designed with a free length of 16" total of 19.3 coils, and a rate of 361 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73357 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
