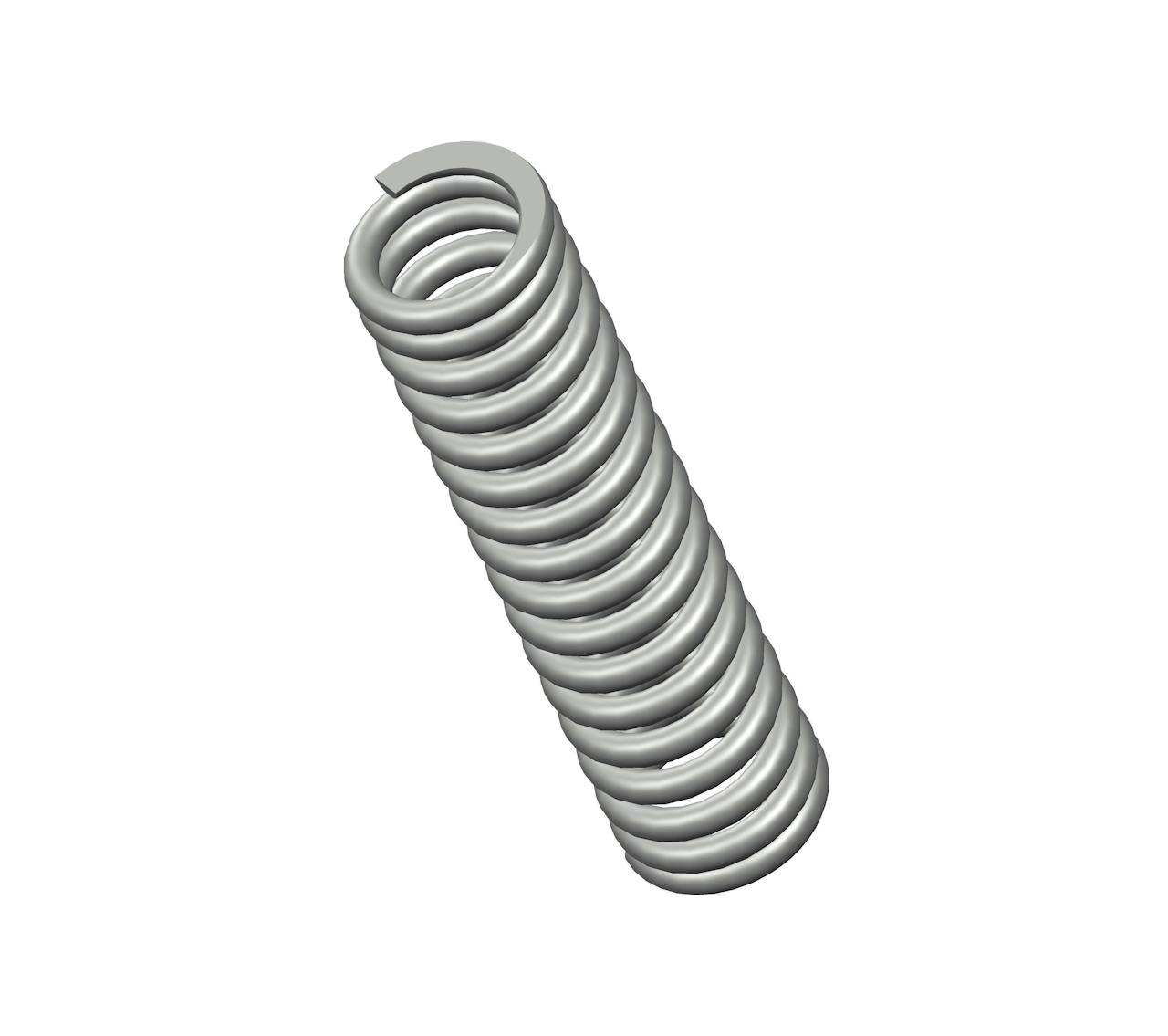

73349CS - 14" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 16.8 coils and closed & ground ends. This spring features an O.D. of 3.406", and an I.D. of 2.344".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73349
Ends Closed & Ground
Finish None
Free Length 14 in
Inside Diameter 2.344 in
Material Oil Tempered
Outside Diameter 3.406 in
Part Type Standard
Rate 326 lbs/in
SKU 73349CS
Solid Length 8.9 in
Suggested Max Deflection 3.4 in
Suggested Max Load 1111 lbf
Total Coils 16.8
Wire Diameter 0.531 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73349
Ends Closed & Ground
Finish None
Free Length 355.6 mm
Inside Diameter 59.54 mm
Material Oil Tempered
Outside Diameter 86.51 mm
Part Type Standard
Rate 57.08 N/mm
SKU 73349CS
Solid Length 226.06 mm
Suggested Max Deflection 86.36 mm
Suggested Max Load 4941.73 N
Total Coils 16.8
Wire Diameter 13.49 mm
The 73349CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.531" diameter oil tempered, the 73349 spring design exhibits reliable strength across its 16.8 active coils, withstanding repeated compression cycles with a maximum load of 1111 lbf without succumbing to fatigue.

We manufacture the 73349 design to provide a compression spring that is 14" long at rest and provides a consistent rate of 326 lbs/in along its recommended maximum of 3.4" deflection. For best results, your application should fully accommodate the inner (2.344") and outer (3.406") diameters of this spring and be designed for its closed & ground end configuration.
