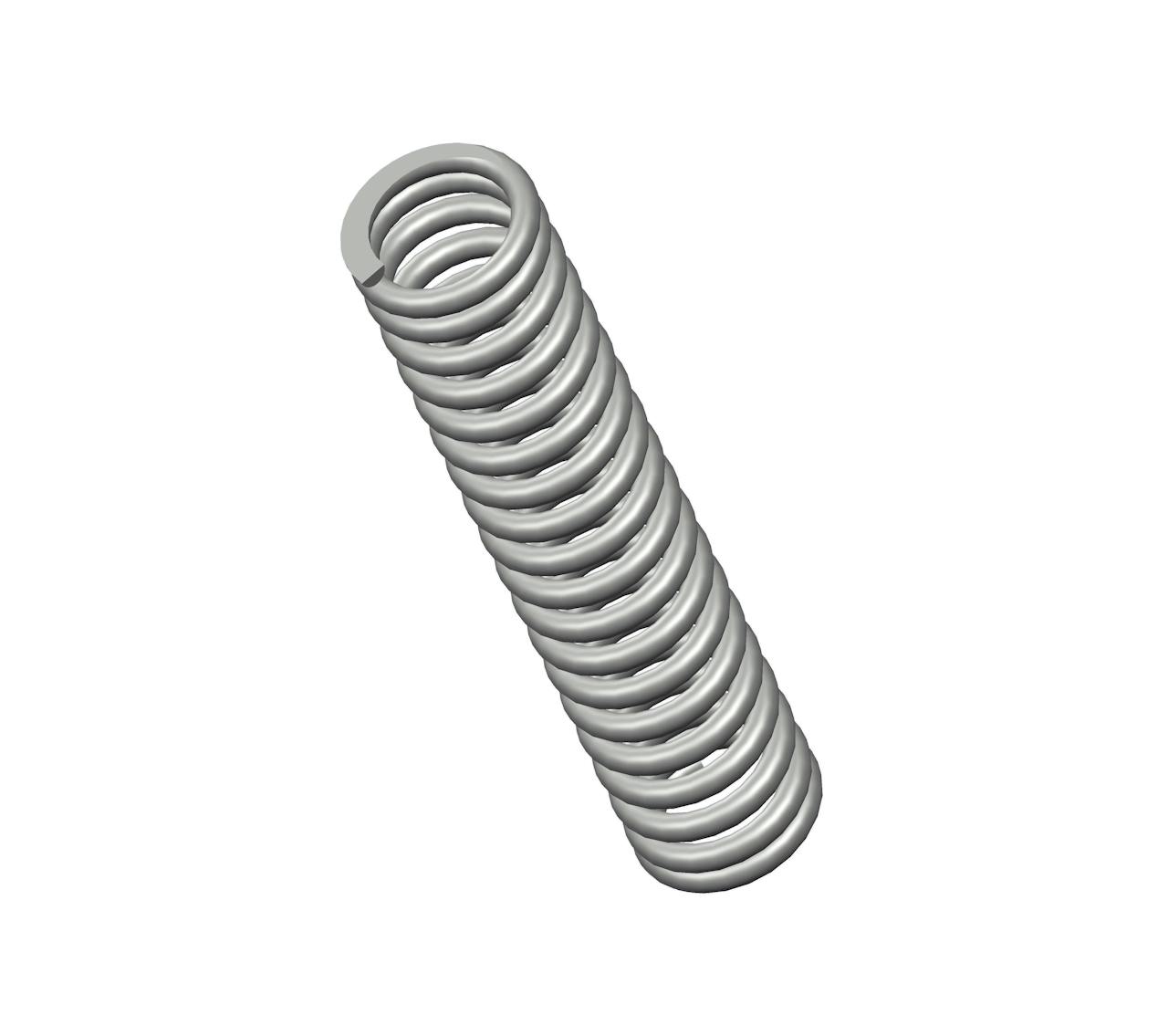

73344CS - 16" Oil Tempered Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from oil tempered with 19.3 coils and closed & ground ends. This spring features an O.D. of 3.406", and an I.D. of 2.406".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73344 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 16 in |
| Inside Diameter | 2.406 in |
| Material | Oil Tempered |
| Outside Diameter | 3.406 in |
| Part Type | Standard |
| Rate | 212 lbs/in |
| SKU | 73344CS |
| Solid Length | 9.63 in |
| Suggested Max Deflection | 4.4 in |
| Suggested Max Load | 934 lbf |
| Total Coils | 19.3 |
| Wire Diameter | 0.5 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73344 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 406.4 mm |
| Inside Diameter | 61.11 mm |
| Material | Oil Tempered |
| Outside Diameter | 86.51 mm |
| Part Type | Standard |
| Rate | 37.12 N/mm |
| SKU | 73344CS |
| Solid Length | 244.6 mm |
| Suggested Max Deflection | 111.76 mm |
| Suggested Max Load | 4154.43 N |
| Total Coils | 19.3 |
| Wire Diameter | 12.7 mm |
The compression spring 73344CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73344 compression spring design exhibits exceptional tensile strength and resilience.
The 73344 design is manufactured with a free length of 16", with an outer diameter of 3.406", an inner diameter of 2.406", and a total of 19.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 212 lbs/in.
The 73344CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 73344 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 73344 design is manufactured with a free length of 16", with an outer diameter of 3.406", an inner diameter of 2.406", and a total of 19.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 212 lbs/in.
The 73344CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 73344 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
