Century Spring

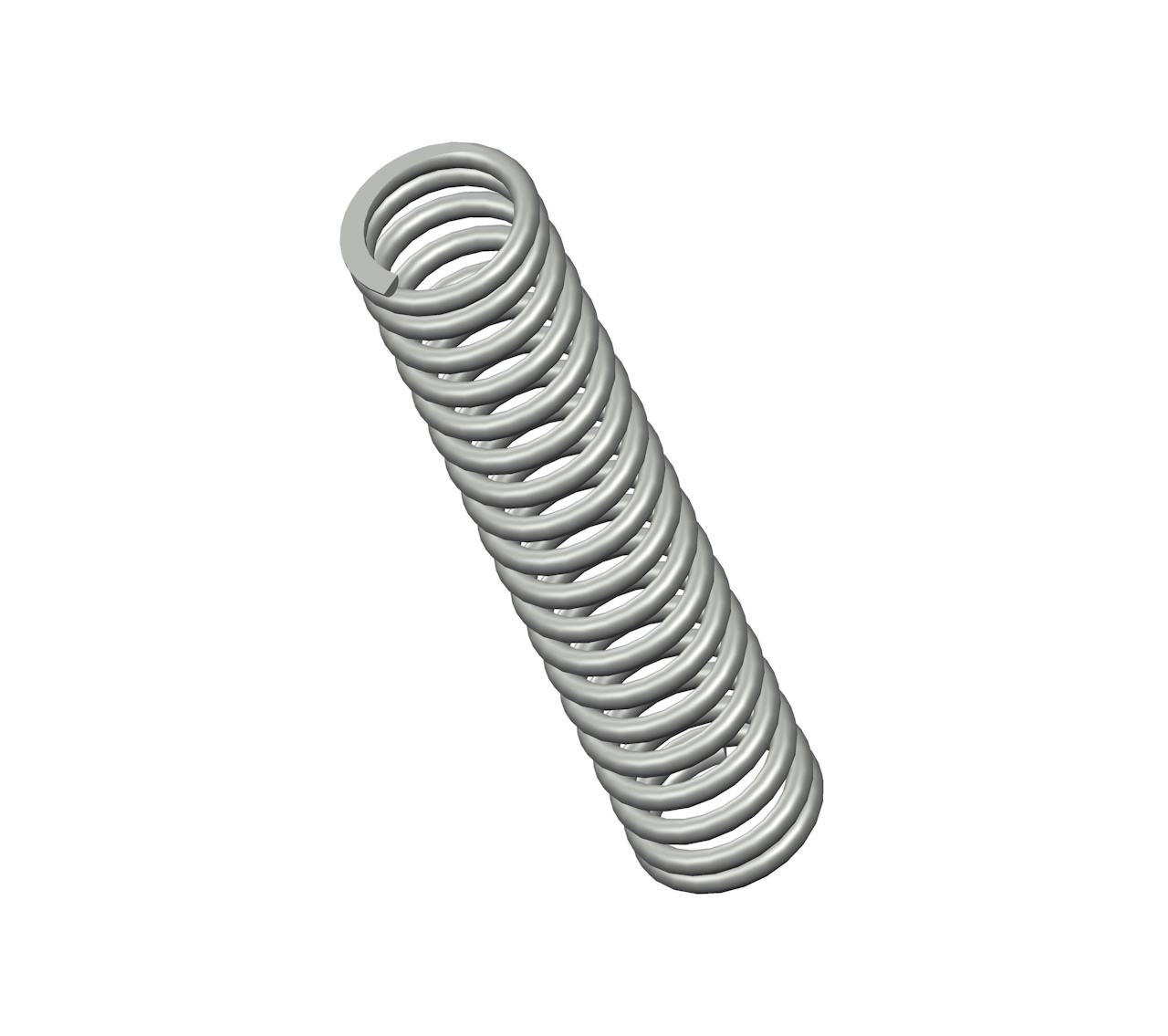

73332CS - 16" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 19.4 coils and closed & ground ends. This spring features an O.D. of 3.406", and an I.D. of 2.532".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73332
Ends Closed & Ground
Finish None
Free Length 16 in
Inside Diameter 2.532 in
Material Oil Tempered
Outside Diameter 3.406 in
Part Type Standard
Rate 115 lbs/in
SKU 73332CS
Solid Length 8.49 in
Suggested Max Deflection 5.7 in
Suggested Max Load 656 lbf
Total Coils 19.4
Wire Diameter 0.437 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73332
Ends Closed & Ground
Finish None
Free Length 406.4 mm
Inside Diameter 64.31 mm
Material Oil Tempered
Outside Diameter 86.51 mm
Part Type Standard
Rate 20.14 N/mm
SKU 73332CS
Solid Length 215.65 mm
Suggested Max Deflection 144.78 mm
Suggested Max Load 2917.89 N
Total Coils 19.4
Wire Diameter 11.1 mm
The compression spring 73332CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73332 compression spring design exhibits exceptional tensile strength and resilience.

The 73332 design is manufactured with a free length of 16", with an outer diameter of 3.406", an inner diameter of 2.532", and a total of 19.4 coils, expertly designed to deliver consistent compression characteristics including a rate of 115 lbs/in.

The 73332CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73332 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
