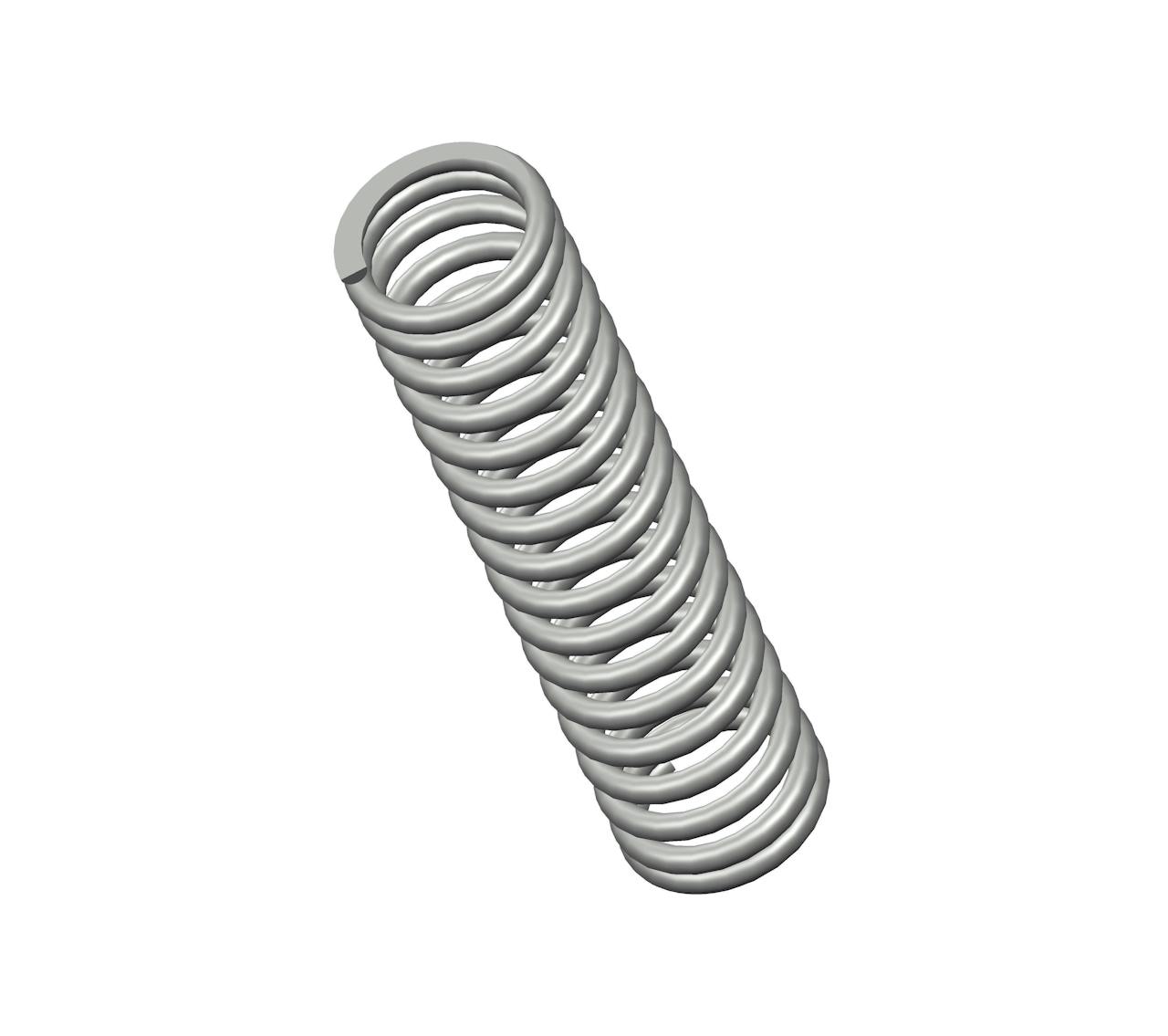

73331CS - 14" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 17.2 coils and closed & ground ends. This spring features an O.D. of 3.406", and an I.D. of 2.532".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73331
Ends Closed & Ground
Finish None
Free Length 14 in
Inside Diameter 2.532 in
Material Oil Tempered
Outside Diameter 3.406 in
Part Type Standard
Rate 132 lbs/in
SKU 73331CS
Solid Length 7.51 in
Suggested Max Deflection 5 in
Suggested Max Load 656 lbf
Total Coils 17.2
Wire Diameter 0.437 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73331
Ends Closed & Ground
Finish None
Free Length 355.6 mm
Inside Diameter 64.31 mm
Material Oil Tempered
Outside Diameter 86.51 mm
Part Type Standard
Rate 23.11 N/mm
SKU 73331CS
Solid Length 190.75 mm
Suggested Max Deflection 127 mm
Suggested Max Load 2917.89 N
Total Coils 17.2
Wire Diameter 11.1 mm
The 73331CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.437" diameter oil tempered, the 73331 spring design exhibits reliable strength across its 17.2 active coils, withstanding repeated compression cycles with a maximum load of 656 lbf without succumbing to fatigue.

We manufacture the 73331 design to provide a compression spring that is 14" long at rest and provides a consistent rate of 132 lbs/in along its recommended maximum of 5" deflection. For best results, your application should fully accommodate the inner (2.532") and outer (3.406") diameters of this spring and be designed for its closed & ground end configuration.
