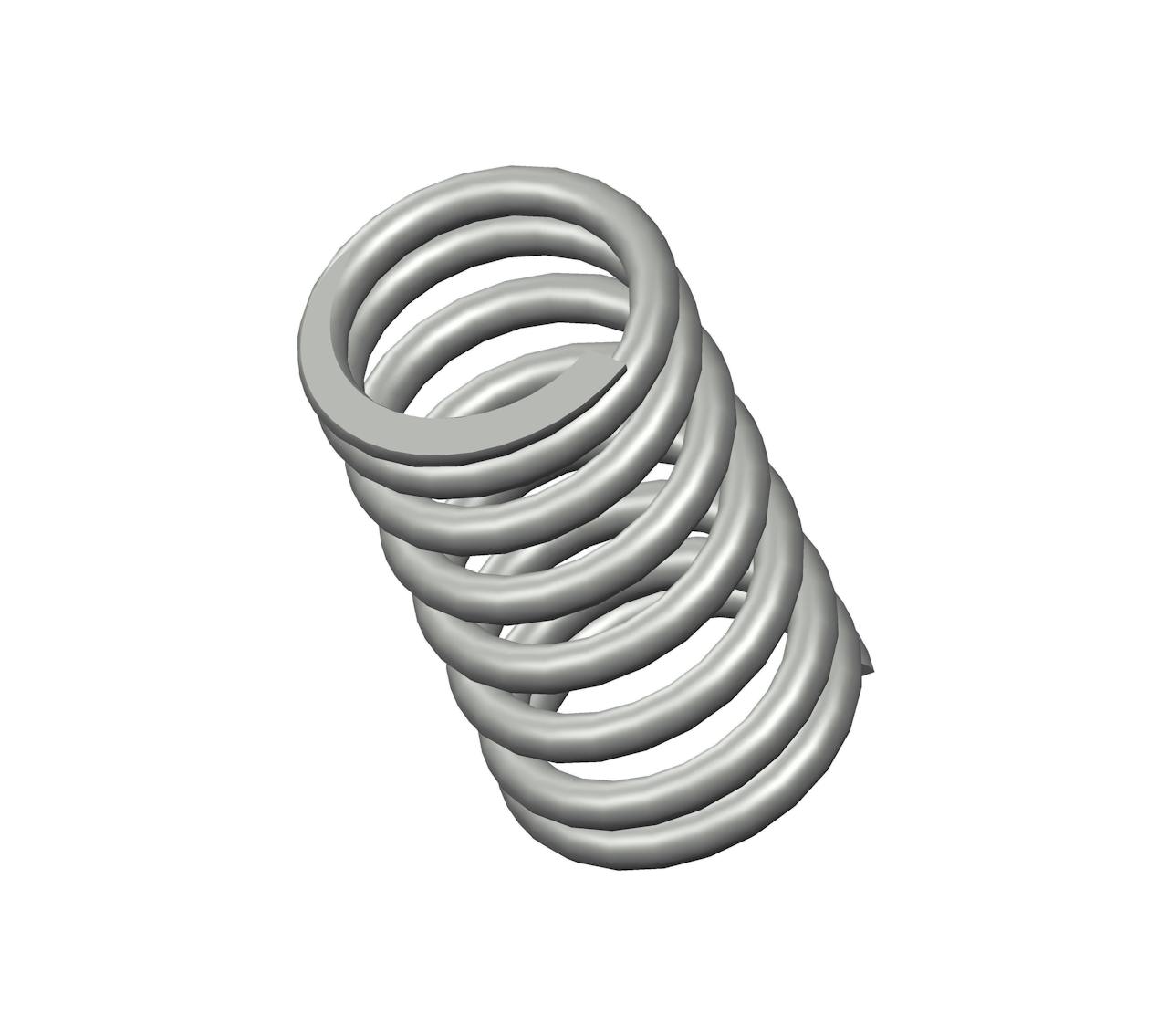

73327CS - 6" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 7.87 coils and closed & ground ends. This spring features an O.D. of 3.406", and an I.D. of 2.532".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73327
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 2.532 in
Material Oil Tempered
Outside Diameter 3.406 in
Part Type Standard
Rate 341 lbs/in
SKU 73327CS
Solid Length 3.44 in
Suggested Max Deflection 1.9 in
Suggested Max Load 656 lbf
Total Coils 7.87
Wire Diameter 0.437 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73327
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 64.31 mm
Material Oil Tempered
Outside Diameter 86.51 mm
Part Type Standard
Rate 59.71 N/mm
SKU 73327CS
Solid Length 87.38 mm
Suggested Max Deflection 48.26 mm
Suggested Max Load 2917.89 N
Total Coils 7.87
Wire Diameter 11.1 mm
The 73327 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73327CS compression spring is designed with a free length of 16" total of 19.4 coils, and a rate of 83 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73327 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
