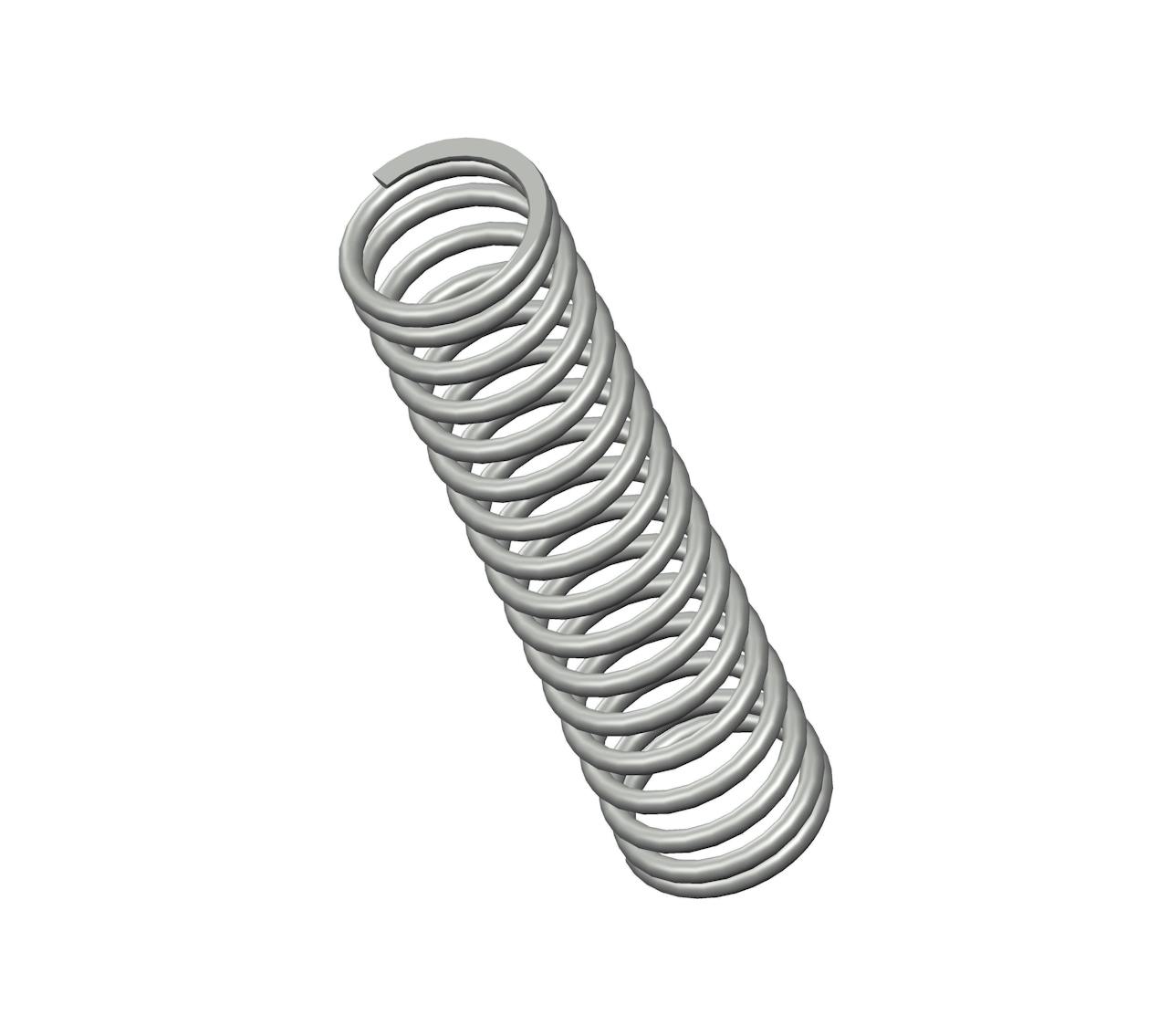

73307CS - 14" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from oil tempered with 16.8 coils and closed & ground ends. This spring features an O.D. of 3.406", and an I.D. of 2.682".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73307 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 14 in |
| Inside Diameter | 2.682 in |
| Material | Oil Tempered |
| Outside Diameter | 3.406 in |
| Part Type | Standard |
| Rate | 59 lbs/in |
| SKU | 73307CS |
| Solid Length | 6.09 in |
| Suggested Max Deflection | 6.7 in |
| Suggested Max Load | 396 lbf |
| Total Coils | 16.8 |
| Wire Diameter | 0.362 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73307 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 355.6 mm |
| Inside Diameter | 68.12 mm |
| Material | Oil Tempered |
| Outside Diameter | 86.51 mm |
| Part Type | Standard |
| Rate | 10.33 N/mm |
| SKU | 73307CS |
| Solid Length | 154.69 mm |
| Suggested Max Deflection | 170.18 mm |
| Suggested Max Load | 1761.41 N |
| Total Coils | 16.8 |
| Wire Diameter | 9.19 mm |
The 73307CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.362" diameter oil tempered, the 73307 spring design exhibits reliable strength across its 16.8 active coils, withstanding repeated compression cycles with a maximum load of 396 lbf without succumbing to fatigue.
We manufacture the 73307 design to provide a compression spring that is 14" long at rest and provides a consistent rate of 59 lbs/in along its recommended maximum of 6.7" deflection. For best results, your application should fully accommodate the inner (2.682") and outer (3.406") diameters of this spring and be designed for its closed & ground end configuration.
