Century Spring

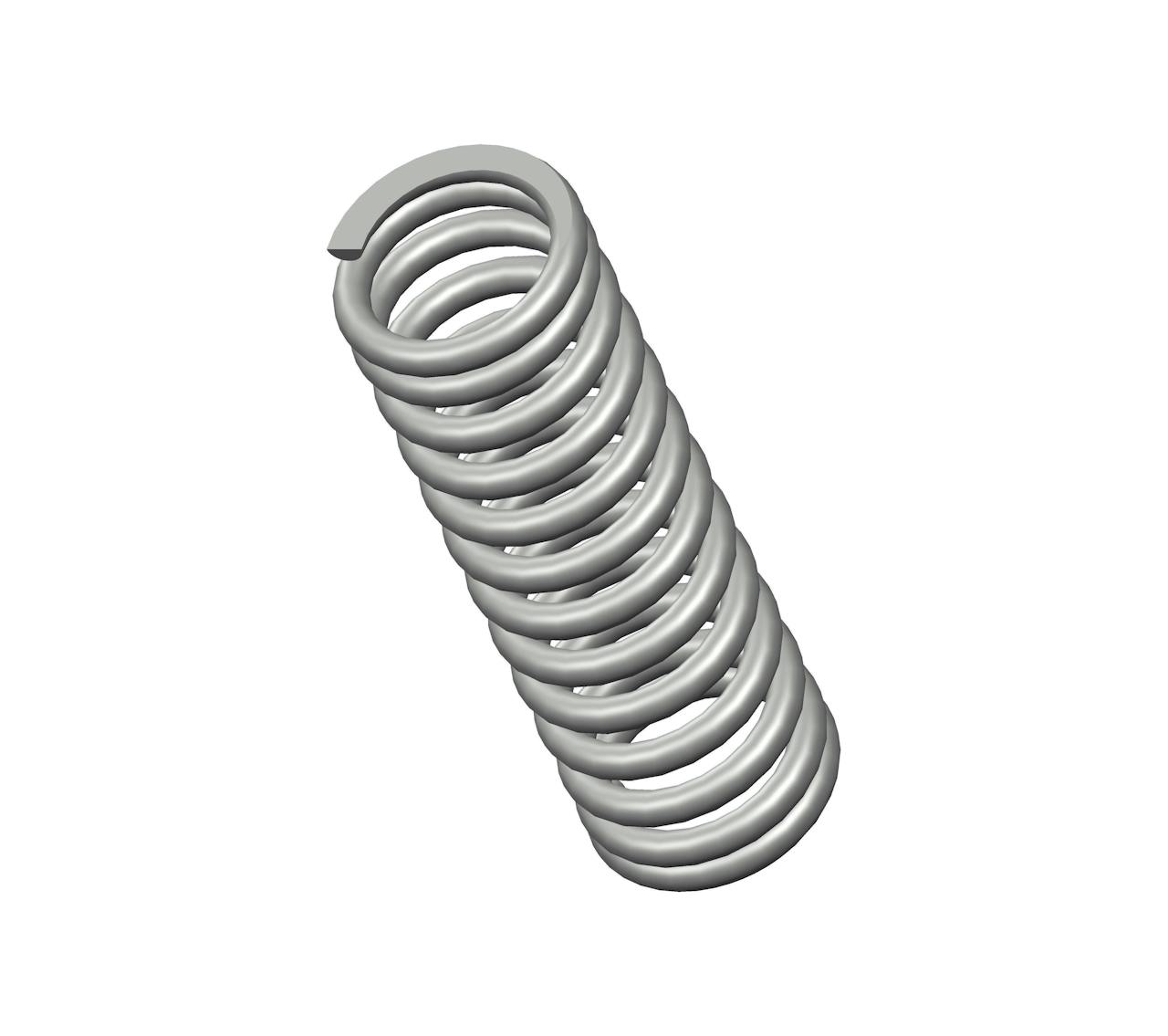

73277CS - 10" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 13 coils and closed & ground ends. This spring features an O.D. of 3.156", and an I.D. of 2.282".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73277
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.282 in
Material Oil Tempered
Outside Diameter 3.156 in
Part Type Standard
Rate 237 lbs/in
SKU 73277CS
Solid Length 5.68 in
Suggested Max Deflection 3 in
Suggested Max Load 703 lbf
Total Coils 13
Wire Diameter 0.437 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73277
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 57.96 mm
Material Oil Tempered
Outside Diameter 80.16 mm
Part Type Standard
Rate 41.5 N/mm
SKU 73277CS
Solid Length 144.27 mm
Suggested Max Deflection 76.2 mm
Suggested Max Load 3126.94 N
Total Coils 13
Wire Diameter 11.1 mm
The 73277CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.437" diameter oil tempered, the 73277 spring design exhibits reliable strength across its 13 active coils, withstanding repeated compression cycles with a maximum load of 703 lbf without succumbing to fatigue.

We manufacture the 73277 design to provide a compression spring that is 10" long at rest and provides a consistent rate of 237 lbs/in along its recommended maximum of 3" deflection. For best results, your application should fully accommodate the inner (2.282") and outer (3.156") diameters of this spring and be designed for its closed & ground end configuration.
