Century Spring

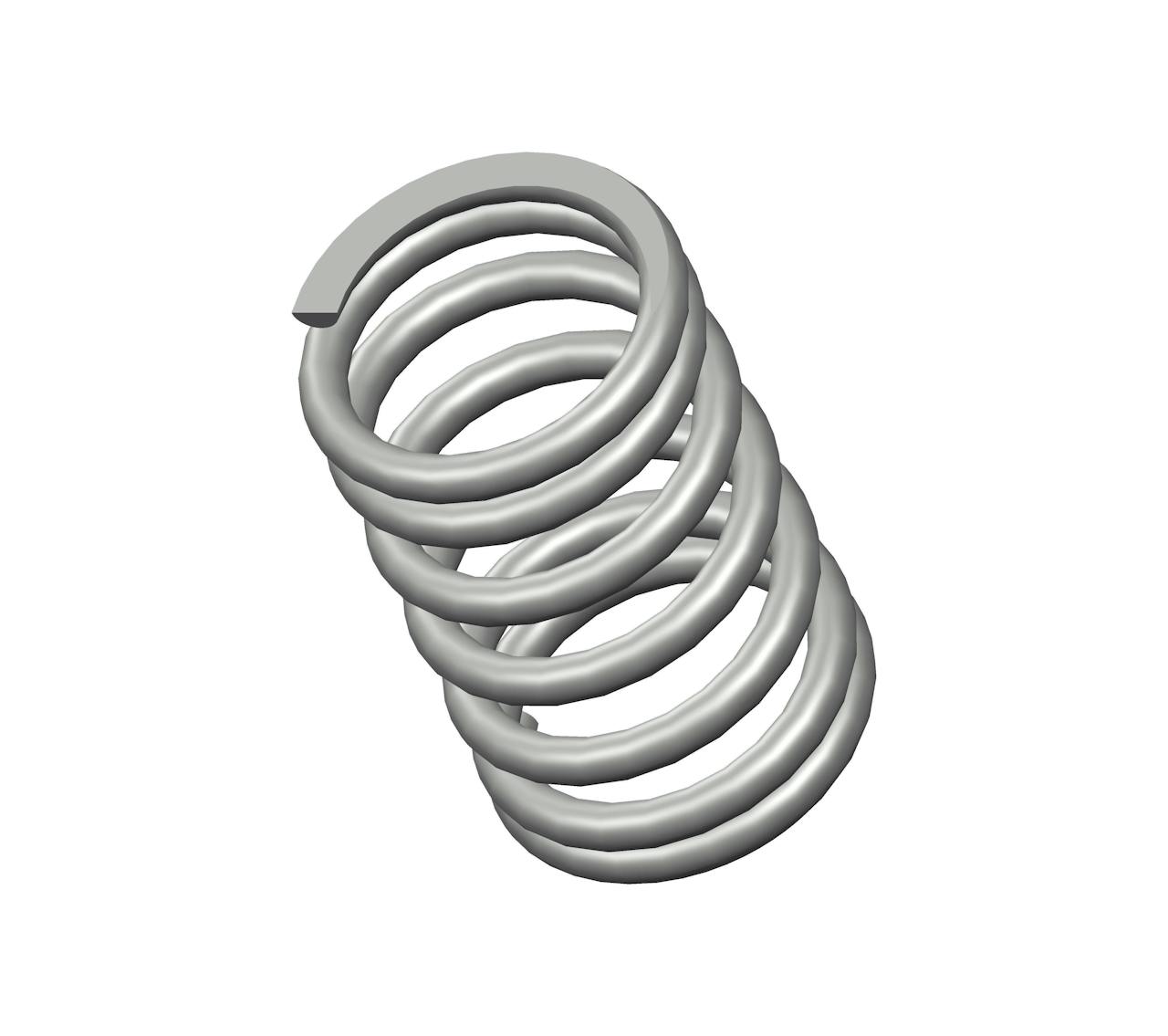

73255CS - 5" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 7 coils and closed & ground ends. This spring features an O.D. of 3.156", and an I.D. of 2.406".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73255
Ends Closed & Ground
Finish None
Free Length 5 in
Inside Diameter 2.406 in
Material Oil Tempered
Outside Diameter 3.156 in
Part Type Standard
Rate 264 lbs/in
SKU 73255CS
Solid Length 2.63 in
Suggested Max Deflection 1.8 in
Suggested Max Load 472 lbf
Total Coils 7
Wire Diameter 0.375 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73255
Ends Closed & Ground
Finish None
Free Length 127 mm
Inside Diameter 61.11 mm
Material Oil Tempered
Outside Diameter 80.16 mm
Part Type Standard
Rate 46.23 N/mm
SKU 73255CS
Solid Length 66.8 mm
Suggested Max Deflection 45.72 mm
Suggested Max Load 2099.46 N
Total Coils 7
Wire Diameter 9.53 mm
The 73255 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73255CS compression spring is designed with a free length of 12" total of 15.3 coils, and a rate of 85 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73255 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
