Century Spring

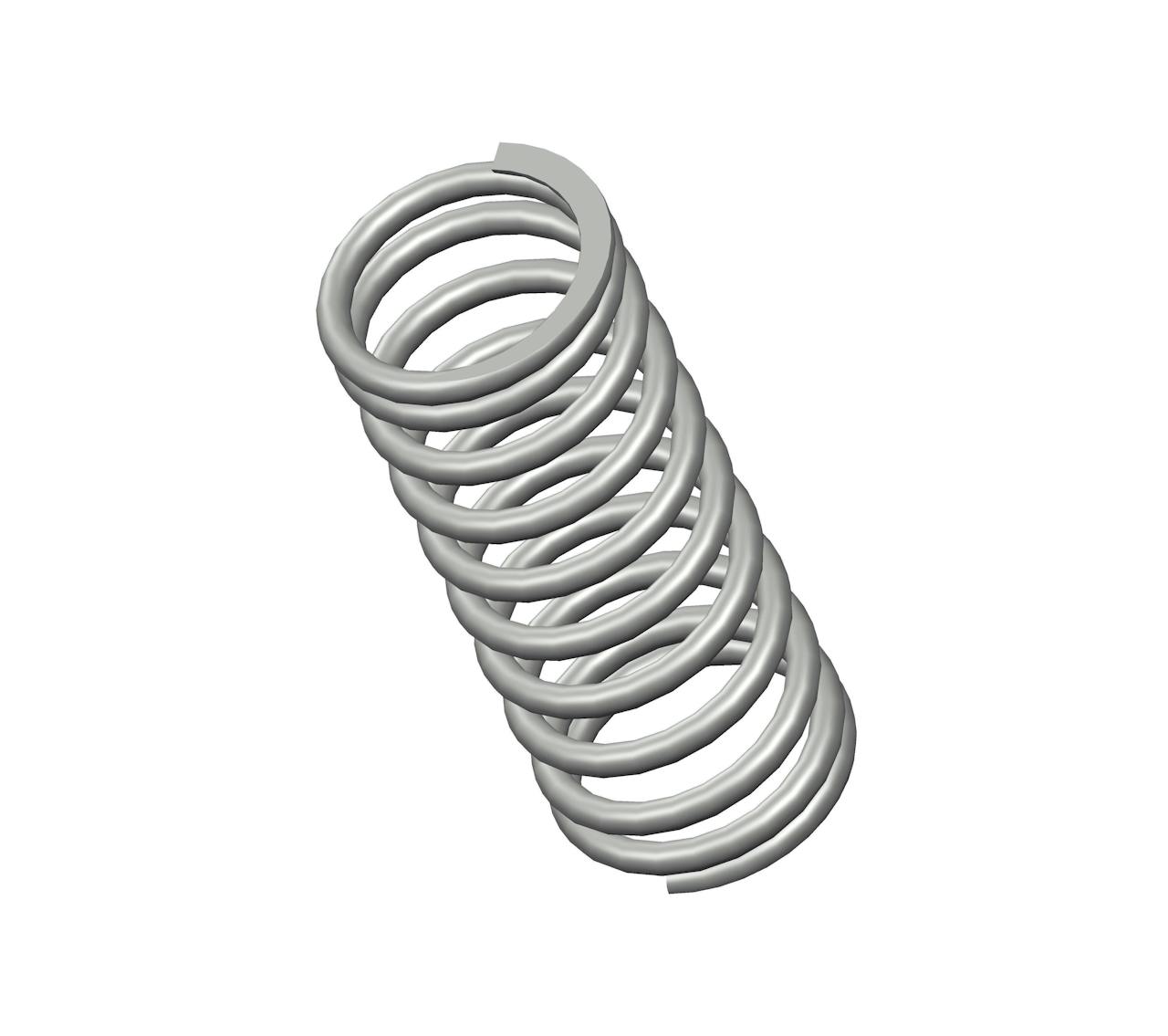

73246CS - 8" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 10.5 coils and closed & ground ends. This spring features an O.D. of 3.156", and an I.D. of 2.47".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73246
Ends Closed & Ground
Finish None
Free Length 8 in
Inside Diameter 2.47 in
Material Oil Tempered
Outside Diameter 3.156 in
Part Type Standard
Rate 105 lbs/in
SKU 73246CS
Solid Length 3.6 in
Suggested Max Deflection 3.5 in
Suggested Max Load 363 lbf
Total Coils 10.5
Wire Diameter 0.343 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73246
Ends Closed & Ground
Finish None
Free Length 203.2 mm
Inside Diameter 62.74 mm
Material Oil Tempered
Outside Diameter 80.16 mm
Part Type Standard
Rate 18.39 N/mm
SKU 73246CS
Solid Length 91.44 mm
Suggested Max Deflection 88.9 mm
Suggested Max Load 1614.62 N
Total Coils 10.5
Wire Diameter 8.71 mm
The 73246 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73246CS compression spring is designed with a free length of 7" total of 9.25 coils, and a rate of 123 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73246 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
