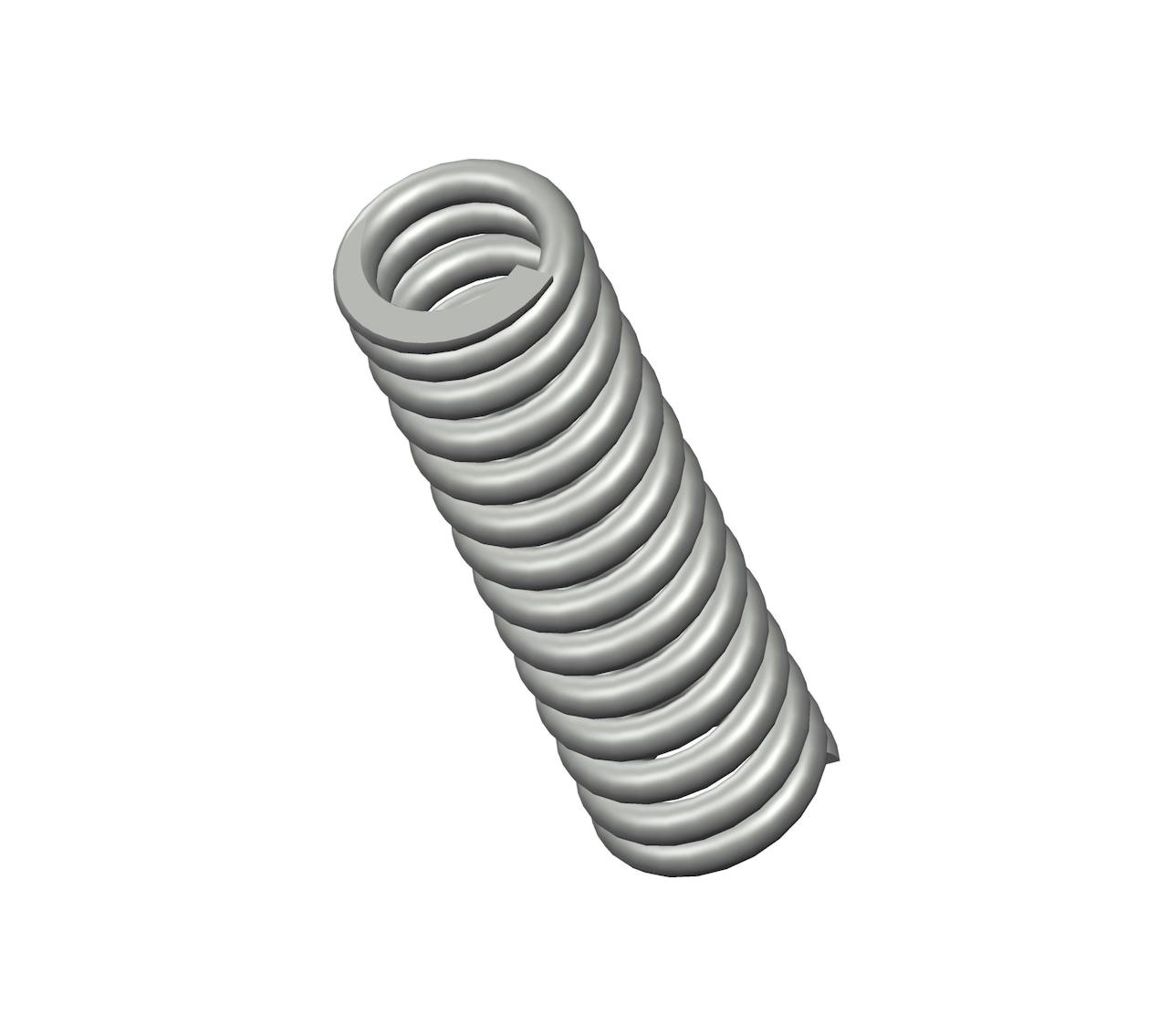

73235CS - 10" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 13.9 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 1.906".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73235
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 1.906 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 543 lbs/in
SKU 73235CS
Solid Length 6.94 in
Suggested Max Deflection 2 in
Suggested Max Load 1074 lbf
Total Coils 13.9
Wire Diameter 0.5 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73235
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 48.41 mm
Material Oil Tempered
Outside Diameter 73.81 mm
Part Type Standard
Rate 95.08 N/mm
SKU 73235CS
Solid Length 176.28 mm
Suggested Max Deflection 50.8 mm
Suggested Max Load 4777.15 N
Total Coils 13.9
Wire Diameter 12.7 mm
The 73235CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.5" diameter oil tempered, the 73235 spring design exhibits reliable strength across its 13.9 active coils, withstanding repeated compression cycles with a maximum load of 1074 lbf without succumbing to fatigue.

We manufacture the 73235 design to provide a compression spring that is 10" long at rest and provides a consistent rate of 543 lbs/in along its recommended maximum of 2" deflection. For best results, your application should fully accommodate the inner (1.906") and outer (2.906") diameters of this spring and be designed for its closed & ground end configuration.
