Century Spring

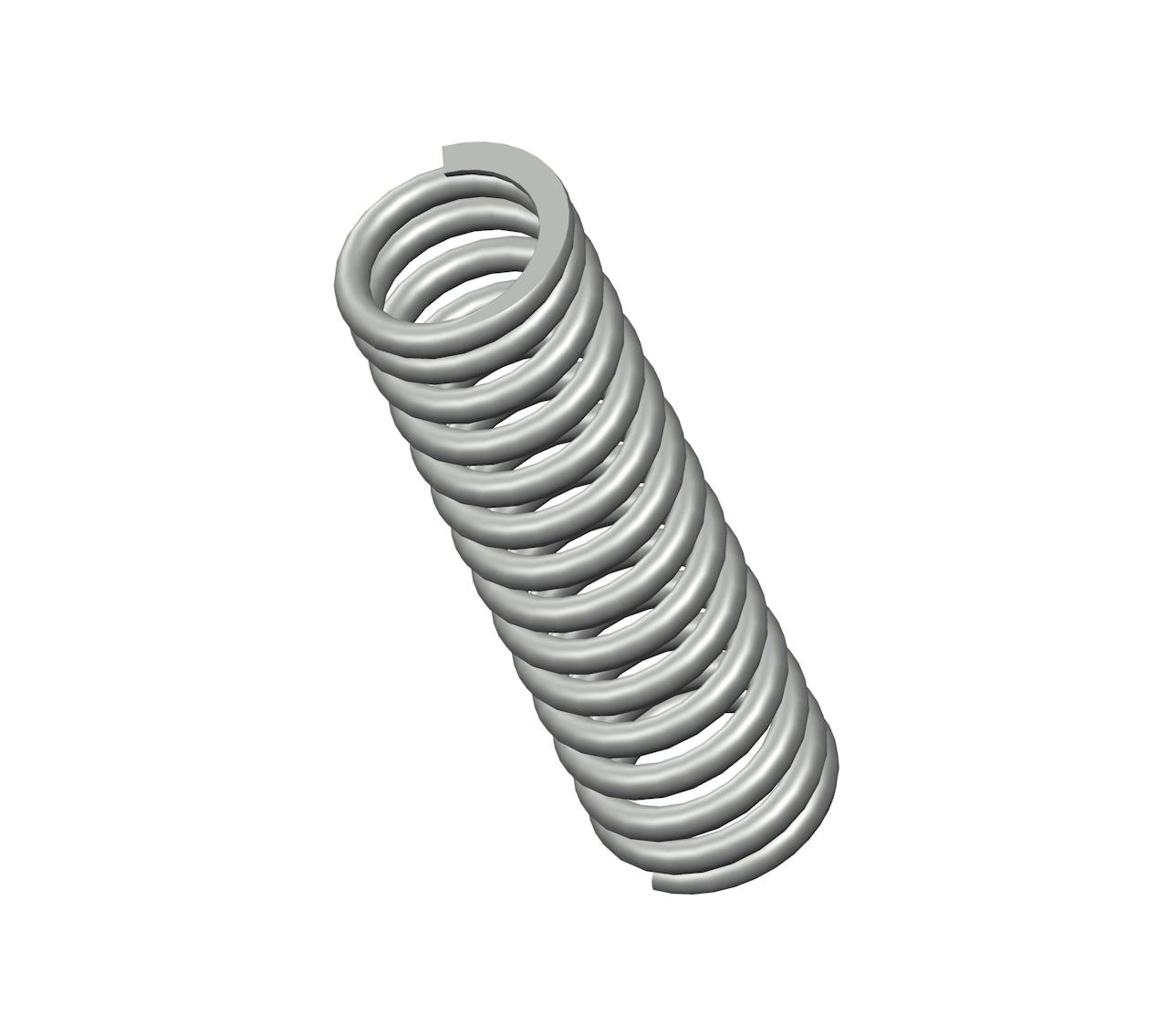

73217CS - 10" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 14.6 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 2.094".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73217
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.094 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 198 lbs/in
SKU 73217CS
Solid Length 5.94 in
Suggested Max Deflection 3.2 in
Suggested Max Load 627 lbf
Total Coils 14.6
Wire Diameter 0.406 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73217
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 53.19 mm
Material Oil Tempered
Outside Diameter 73.81 mm
Part Type Standard
Rate 34.67 N/mm
SKU 73217CS
Solid Length 150.88 mm
Suggested Max Deflection 81.28 mm
Suggested Max Load 2788.9 N
Total Coils 14.6
Wire Diameter 10.31 mm
The 73217CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.406" diameter oil tempered, the 73217 spring design exhibits reliable strength across its 14.6 active coils, withstanding repeated compression cycles with a maximum load of 627 lbf without succumbing to fatigue.

We manufacture the 73217 design to provide a compression spring that is 10" long at rest and provides a consistent rate of 198 lbs/in along its recommended maximum of 3.2" deflection. For best results, your application should fully accommodate the inner (2.094") and outer (2.906") diameters of this spring and be designed for its closed & ground end configuration.
