Century Spring

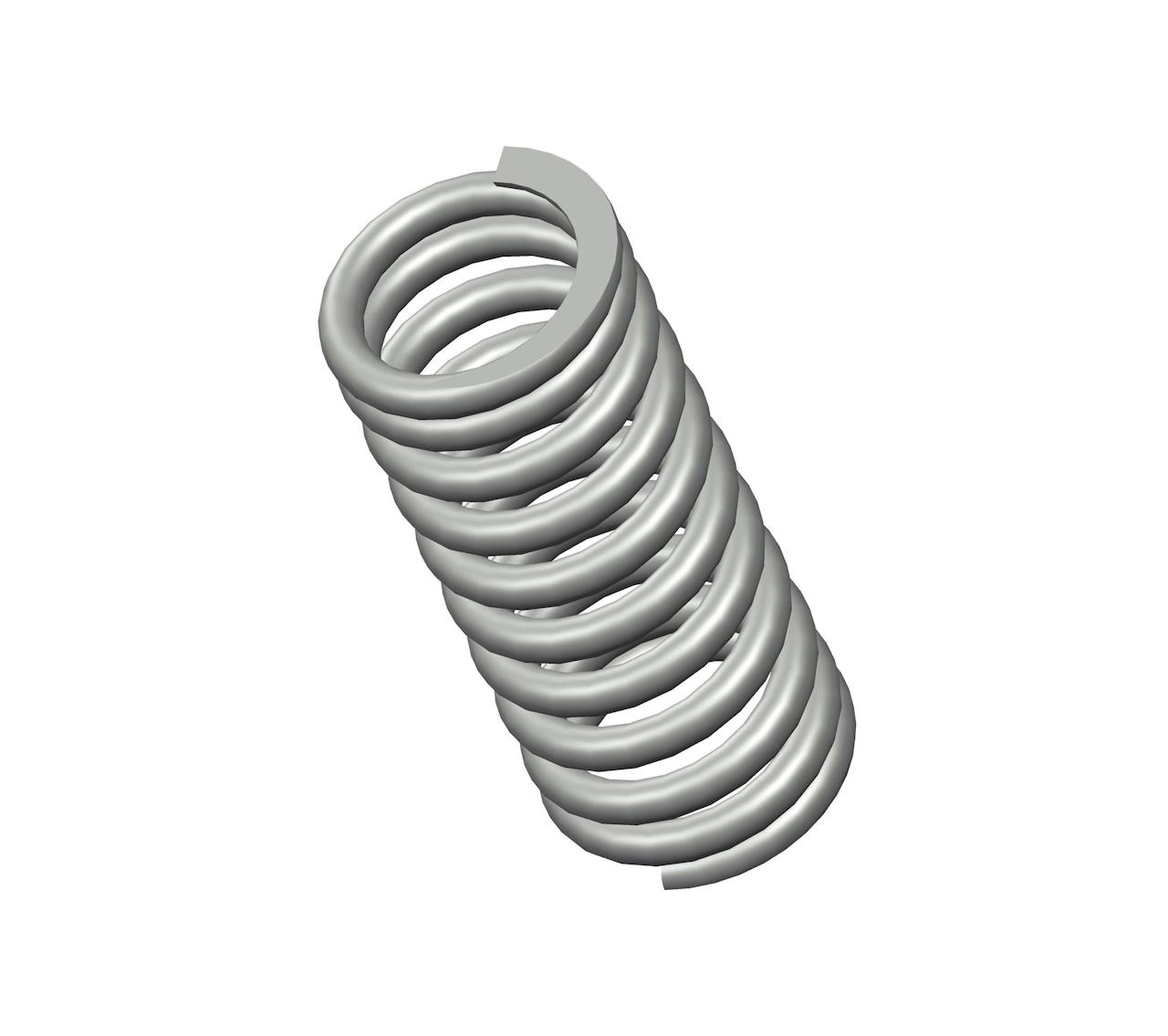

73215CS - 7" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 10.5 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 2.094".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73215
Ends Closed & Ground
Finish None
Free Length 7 in
Inside Diameter 2.094 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 294 lbs/in
SKU 73215CS
Solid Length 4.26 in
Suggested Max Deflection 2.1 in
Suggested Max Load 627 lbf
Total Coils 10.5
Wire Diameter 0.406 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73215
Ends Closed & Ground
Finish None
Free Length 177.8 mm
Inside Diameter 53.19 mm
Material Oil Tempered
Outside Diameter 73.81 mm
Part Type Standard
Rate 51.48 N/mm
SKU 73215CS
Solid Length 108.2 mm
Suggested Max Deflection 53.34 mm
Suggested Max Load 2788.9 N
Total Coils 10.5
Wire Diameter 10.31 mm
The compression spring 73215CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73215 compression spring design exhibits exceptional tensile strength and resilience.

The 73215 design is manufactured with a free length of 7", with an outer diameter of 2.906", an inner diameter of 2.094", and a total of 10.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 294 lbs/in.

The 73215CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73215 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
