Century Spring

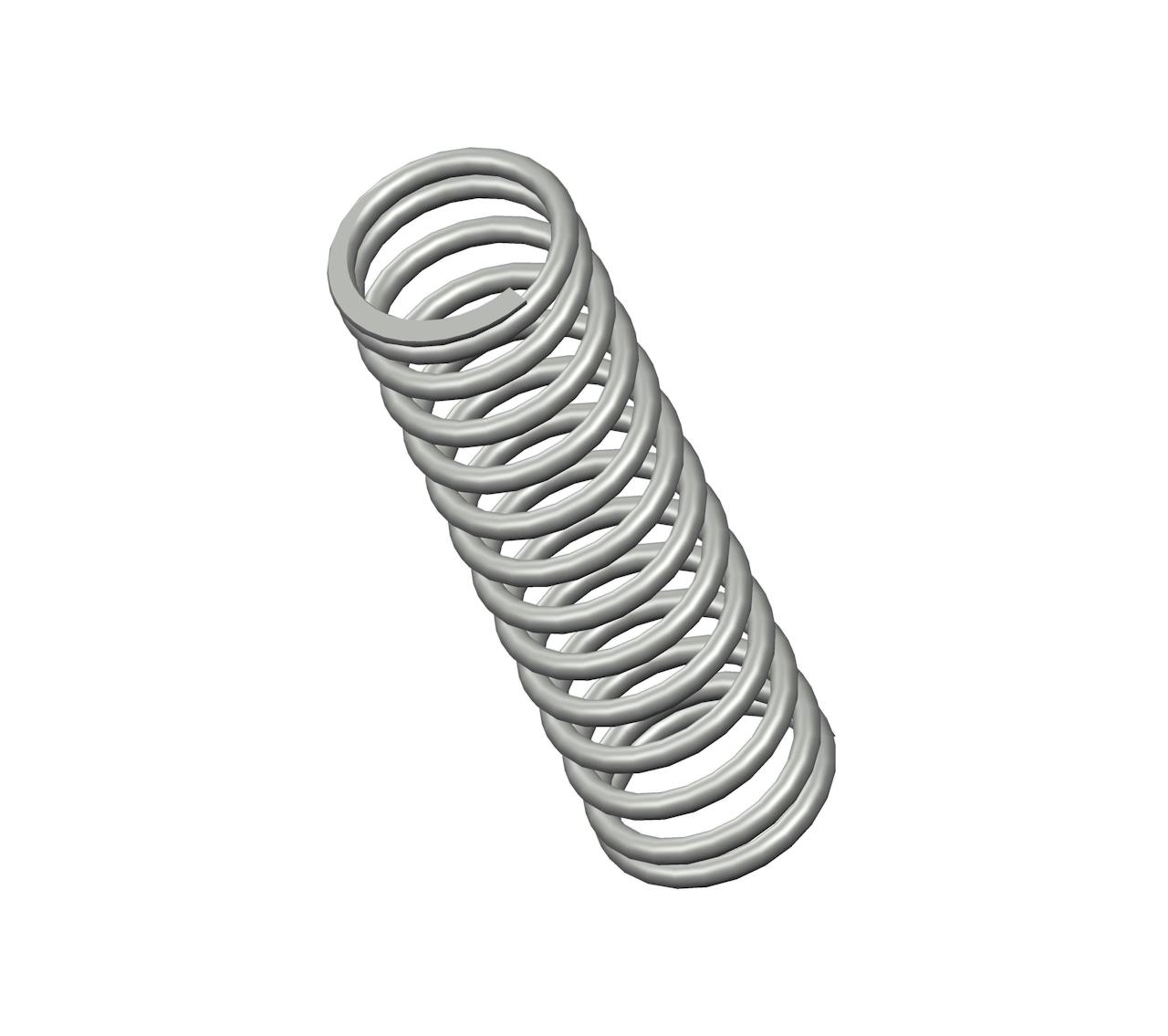

73188CS - 10" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 13.8 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 2.282".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73188
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.282 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 66 lbs/in
SKU 73188CS
Solid Length 4.31 in
Suggested Max Deflection 4.6 in
Suggested Max Load 304 lbf
Total Coils 13.8
Wire Diameter 0.312 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73188
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 57.96 mm
Material Oil Tempered
Outside Diameter 73.81 mm
Part Type Standard
Rate 11.56 N/mm
SKU 73188CS
Solid Length 109.47 mm
Suggested Max Deflection 116.84 mm
Suggested Max Load 1352.19 N
Total Coils 13.8
Wire Diameter 7.92 mm
The compression spring 73188CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73188 compression spring design exhibits exceptional tensile strength and resilience.

The 73188 design is manufactured with a free length of 10", with an outer diameter of 2.906", an inner diameter of 2.282", and a total of 13.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 66 lbs/in.

The 73188CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73188 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
