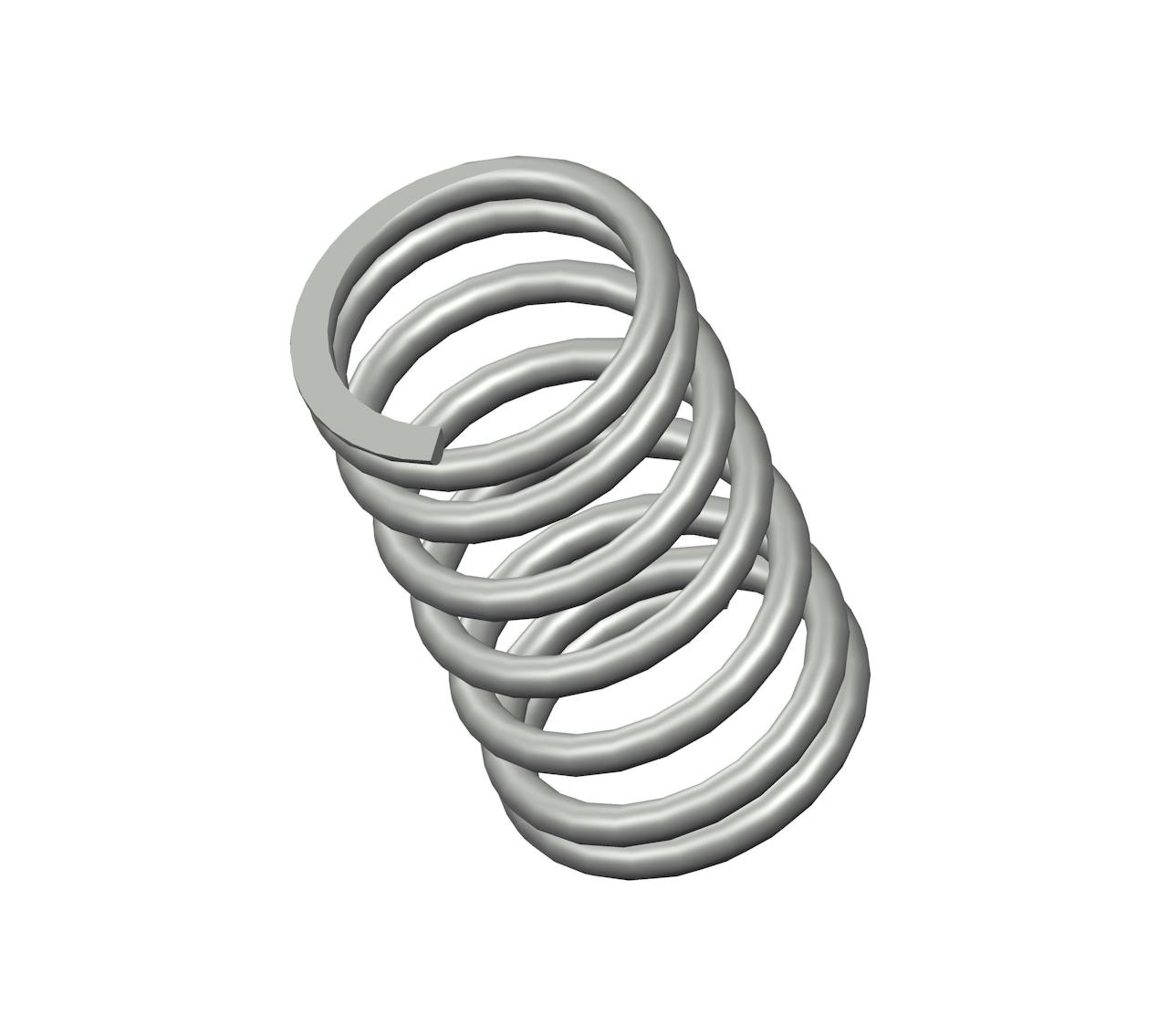

73184CS - 5" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 7.5 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 2.282".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73184
Ends Closed & Ground
Finish None
Free Length 5 in
Inside Diameter 2.282 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 142 lbs/in
SKU 73184CS
Solid Length 2.34 in
Suggested Max Deflection 2.1 in
Suggested Max Load 304 lbf
Total Coils 7.5
Wire Diameter 0.312 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73184
Ends Closed & Ground
Finish None
Free Length 127 mm
Inside Diameter 57.96 mm
Material Oil Tempered
Outside Diameter 73.81 mm
Part Type Standard
Rate 24.86 N/mm
SKU 73184CS
Solid Length 59.44 mm
Suggested Max Deflection 53.34 mm
Suggested Max Load 1352.19 N
Total Coils 7.5
Wire Diameter 7.92 mm
The 73184CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.312" diameter oil tempered, the 73184 spring design exhibits reliable strength across its 7.5 active coils, withstanding repeated compression cycles with a maximum load of 304 lbf without succumbing to fatigue.

We manufacture the 73184 design to provide a compression spring that is 5" long at rest and provides a consistent rate of 142 lbs/in along its recommended maximum of 2.1" deflection. For best results, your application should fully accommodate the inner (2.282") and outer (2.906") diameters of this spring and be designed for its closed & ground end configuration.
