Century Spring

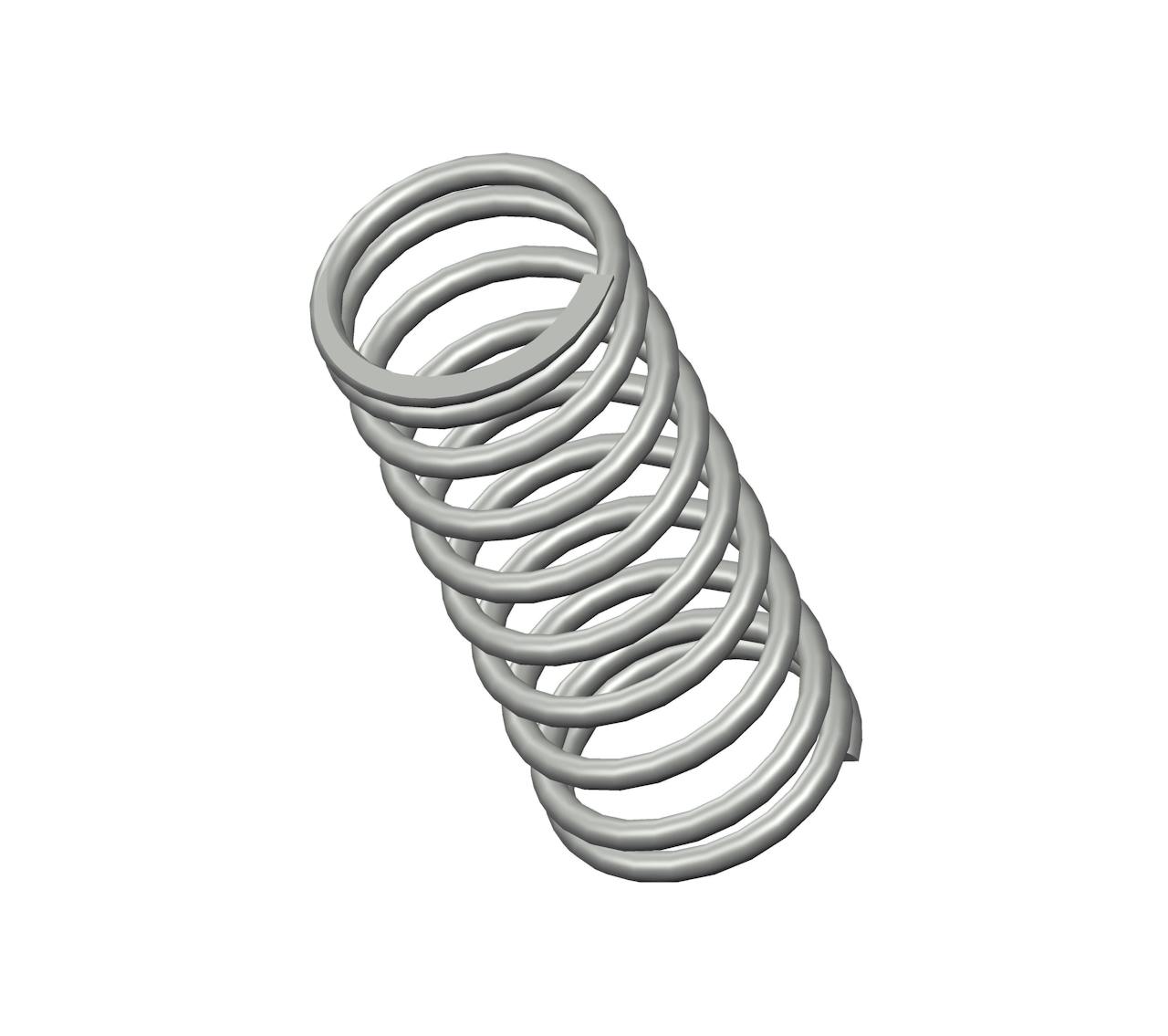

73180CS - 7" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 9.99 coils and closed & ground ends. This spring features an O.D. of 2.906", and an I.D. of 2.344".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73180
Ends Closed & Ground
Finish None
Free Length 7 in
Inside Diameter 2.344 in
Material Oil Tempered
Outside Diameter 2.906 in
Part Type Standard
Rate 62 lbs/in
SKU 73180CS
Solid Length 2.81 in
Suggested Max Deflection 3.7 in
Suggested Max Load 230 lbf
Total Coils 9.99
Wire Diameter 0.281 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73180
Ends Closed & Ground
Finish None
Free Length 177.8 mm
Inside Diameter 59.54 mm
Material Oil Tempered
Outside Diameter 73.81 mm
Part Type Standard
Rate 10.86 N/mm
SKU 73180CS
Solid Length 71.37 mm
Suggested Max Deflection 93.98 mm
Suggested Max Load 1023.04 N
Total Coils 9.99
Wire Diameter 7.14 mm
The 73180 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73180CS compression spring is designed with a free length of 6" total of 8.79 coils, and a rate of 73 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73180 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
