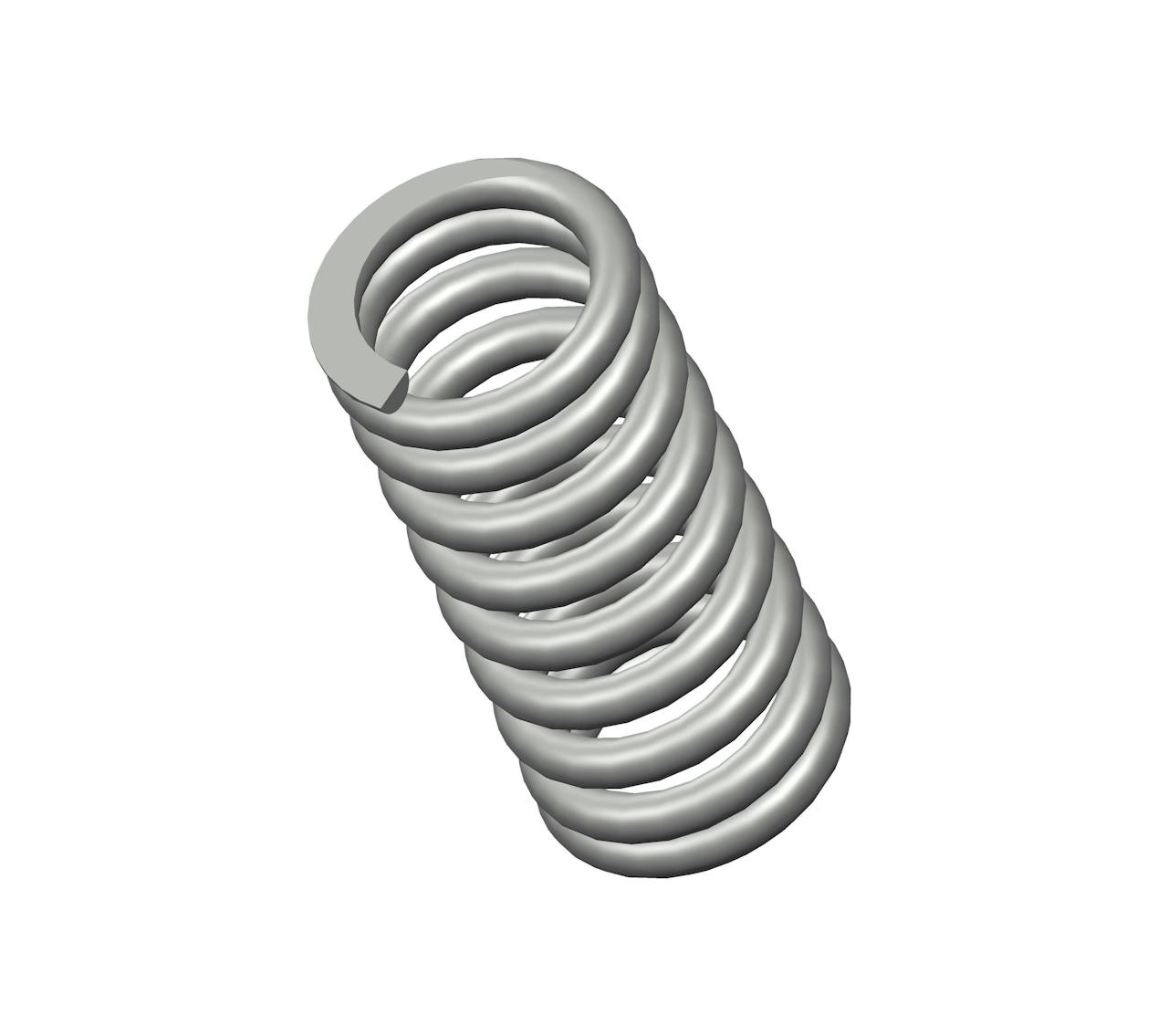

73158CS - 6" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 9.4 coils and closed & ground ends. This spring features an O.D. of 2.687", and an I.D. of 1.875".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73158
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 1.875 in
Material Oil Tempered
Outside Diameter 2.687 in
Part Type Standard
Rate 445 lbs/in
SKU 73158CS
Solid Length 3.82 in
Suggested Max Deflection 1.5 in
Suggested Max Load 673 lbf
Total Coils 9.4
Wire Diameter 0.406 in
The compression spring 73158CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73158 compression spring design exhibits exceptional tensile strength and resilience.

The 73158 design is manufactured with a free length of 6", with an outer diameter of 2.687", an inner diameter of 1.875", and a total of 9.4 coils, expertly designed to deliver consistent compression characteristics including a rate of 445 lbs/in.

The 73158CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73158 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
