Century Spring

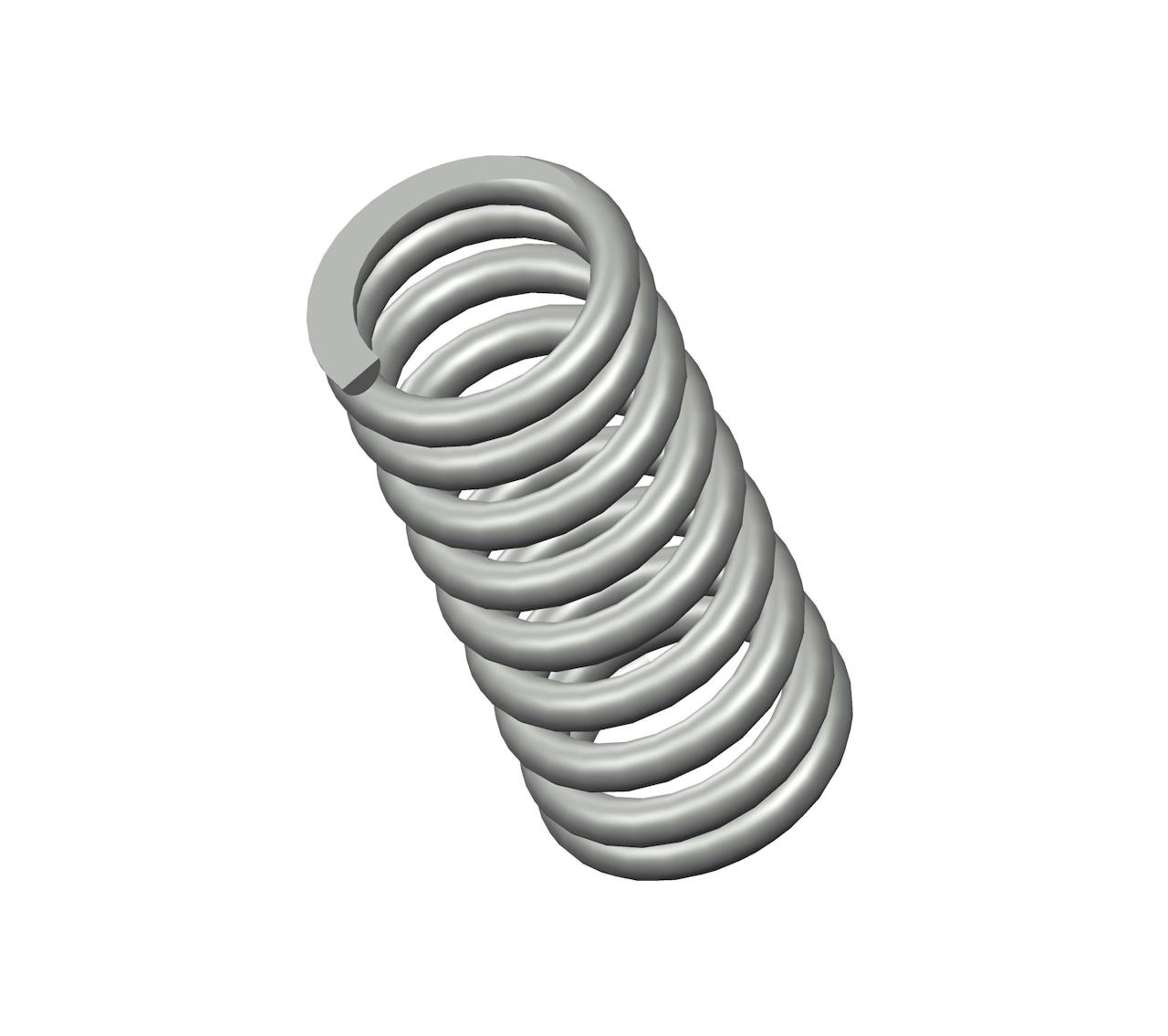

73151CS - 6" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 9.3 coils and closed & ground ends. This spring features an O.D. of 2.687", and an I.D. of 1.901".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73151
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 1.901 in
Material Oil Tempered
Outside Diameter 2.687 in
Part Type Standard
Rate 389 lbs/in
SKU 73151CS
Solid Length 3.65 in
Suggested Max Deflection 1.6 in
Suggested Max Load 612 lbf
Total Coils 9.3
Wire Diameter 0.393 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73151
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 48.29 mm
Material Oil Tempered
Outside Diameter 68.25 mm
Part Type Standard
Rate 68.11 N/mm
SKU 73151CS
Solid Length 92.71 mm
Suggested Max Deflection 40.64 mm
Suggested Max Load 2722.18 N
Total Coils 9.3
Wire Diameter 9.98 mm
The 73151CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.393" diameter oil tempered, the 73151 spring design exhibits reliable strength across its 9.3 active coils, withstanding repeated compression cycles with a maximum load of 612 lbf without succumbing to fatigue.

We manufacture the 73151 design to provide a compression spring that is 6" long at rest and provides a consistent rate of 389 lbs/in along its recommended maximum of 1.6" deflection. For best results, your application should fully accommodate the inner (1.901") and outer (2.687") diameters of this spring and be designed for its closed & ground end configuration.
