73122CS - 5" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

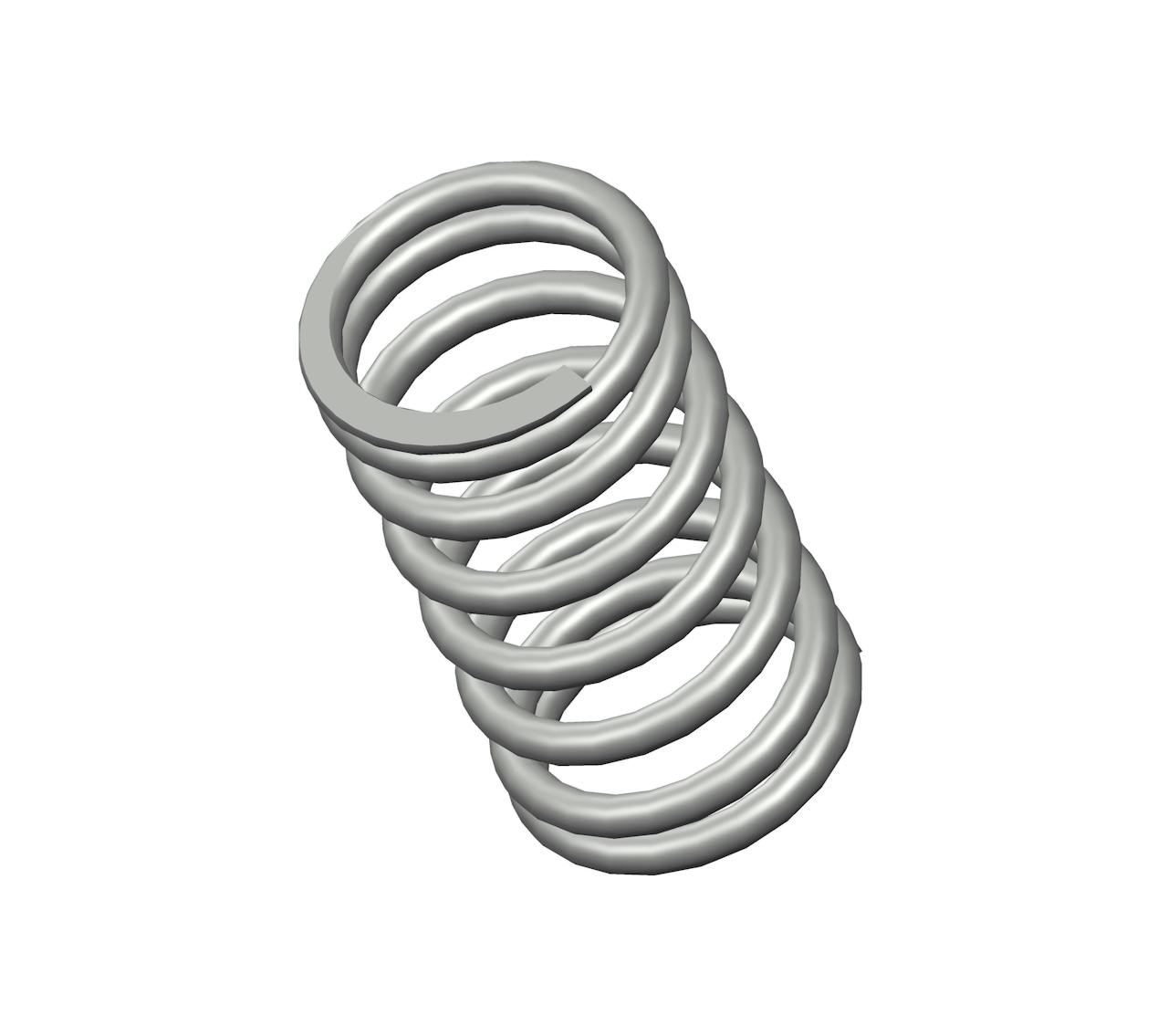

Compression spring manufactured from oil tempered with 7.8 coils and closed & ground ends. This spring features an O.D. of 2.687", and an I.D. of 2.063".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73122 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 5 in |
| Inside Diameter | 2.063 in |
| Material | Oil Tempered |
| Outside Diameter | 2.687 in |
| Part Type | Standard |
| Rate | 175 lbs/in |
| SKU | 73122CS |
| Solid Length | 2.43 in |
| Suggested Max Deflection | 1.9 in |
| Suggested Max Load | 327 lbf |
| Total Coils | 7.8 |
| Wire Diameter | 0.312 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73122 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 127 mm |
| Inside Diameter | 52.4 mm |
| Material | Oil Tempered |
| Outside Diameter | 68.25 mm |
| Part Type | Standard |
| Rate | 30.64 N/mm |
| SKU | 73122CS |
| Solid Length | 61.72 mm |
| Suggested Max Deflection | 48.26 mm |
| Suggested Max Load | 1454.5 N |
| Total Coils | 7.8 |
| Wire Diameter | 7.92 mm |
The compression spring 73122CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73122 compression spring design exhibits exceptional tensile strength and resilience.
The 73122 design is manufactured with a free length of 5", with an outer diameter of 2.687", an inner diameter of 2.063", and a total of 7.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 175 lbs/in.
The 73122CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 73122 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
