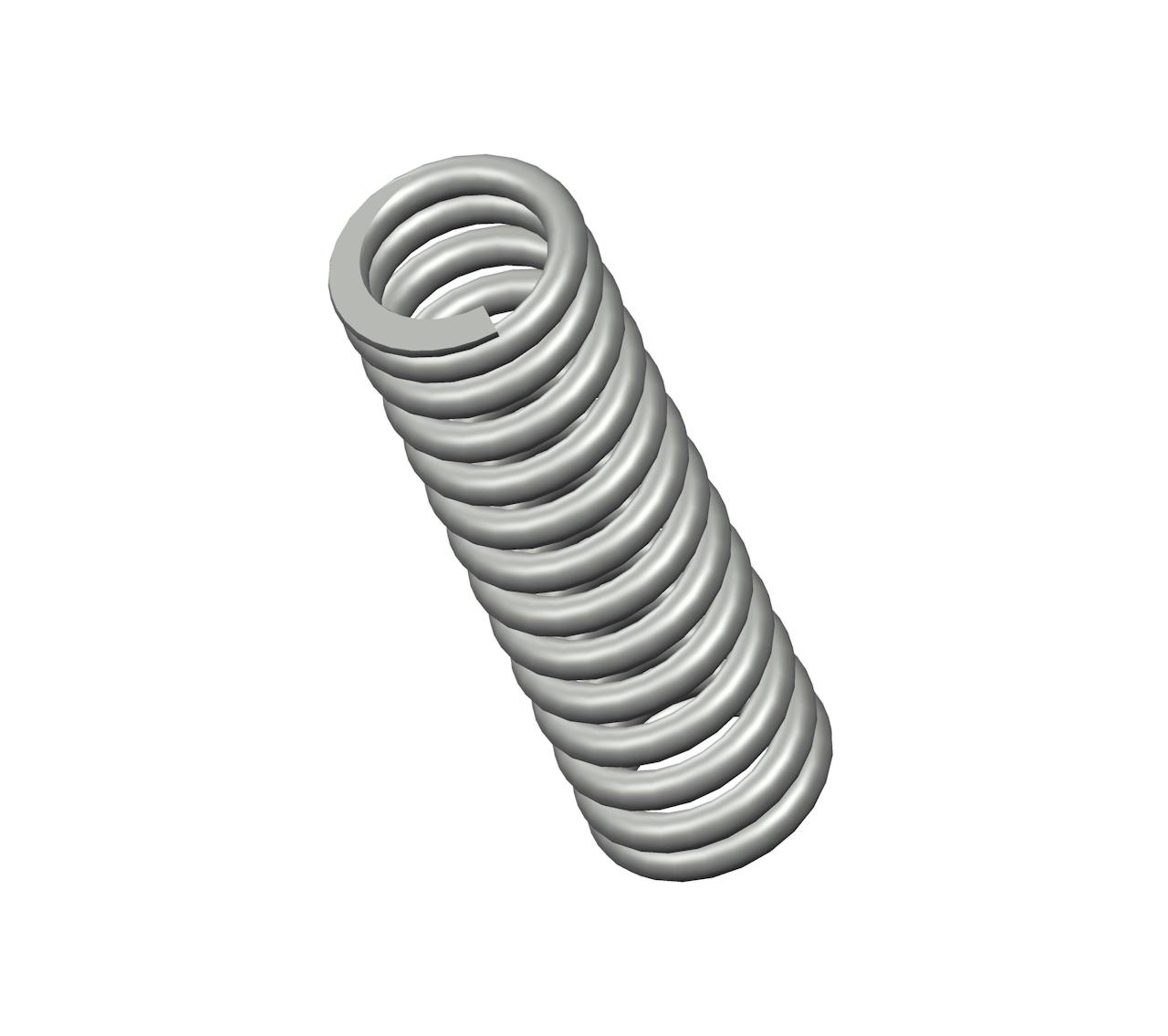

73101CS - 8" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 13.7 coils and closed & ground ends. This spring features an O.D. of 2.437", and an I.D. of 1.687".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73101
Ends Closed & Ground
Finish None
Free Length 8 in
Inside Diameter 1.687 in
Material Oil Tempered
Outside Diameter 2.437 in
Part Type Standard
Rate 276 lbs/in
SKU 73101CS
Solid Length 5.16 in
Suggested Max Deflection 2.2 in
Suggested Max Load 597 lbf
Total Coils 13.7
Wire Diameter 0.375 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73101
Ends Closed & Ground
Finish None
Free Length 203.2 mm
Inside Diameter 42.85 mm
Material Oil Tempered
Outside Diameter 61.9 mm
Part Type Standard
Rate 48.33 N/mm
SKU 73101CS
Solid Length 131.06 mm
Suggested Max Deflection 55.88 mm
Suggested Max Load 2655.46 N
Total Coils 13.7
Wire Diameter 9.53 mm
The compression spring 73101CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73101 compression spring design exhibits exceptional tensile strength and resilience.

The 73101 design is manufactured with a free length of 8", with an outer diameter of 2.437", an inner diameter of 1.687", and a total of 13.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 276 lbs/in.

The 73101CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73101 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
