Century Spring

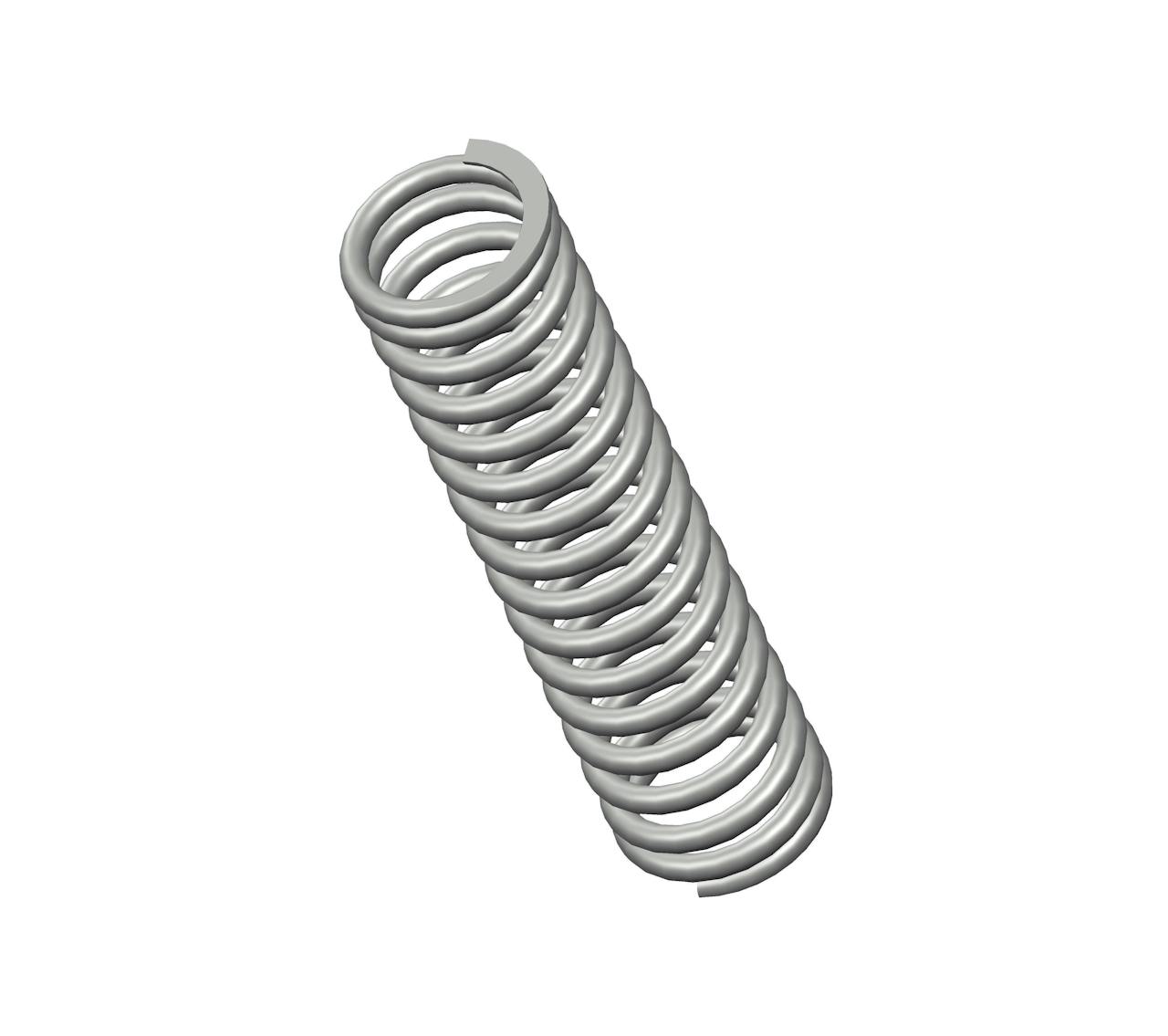

73084CS - 10" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 16.5 coils and closed & ground ends. This spring features an O.D. of 2.437", and an I.D. of 1.813".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73084
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 1.813 in
Material Oil Tempered
Outside Diameter 2.437 in
Part Type Standard
Rate 98 lbs/in
SKU 73084CS
Solid Length 5.14 in
Suggested Max Deflection 3.7 in
Suggested Max Load 358 lbf
Total Coils 16.5
Wire Diameter 0.312 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73084
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 46.05 mm
Material Oil Tempered
Outside Diameter 61.9 mm
Part Type Standard
Rate 17.16 N/mm
SKU 73084CS
Solid Length 130.56 mm
Suggested Max Deflection 93.98 mm
Suggested Max Load 1592.38 N
Total Coils 16.5
Wire Diameter 7.92 mm
The 73084 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73084CS compression spring is designed with a free length of 8" total of 13.5 coils, and a rate of 123 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73084 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
