Century Spring

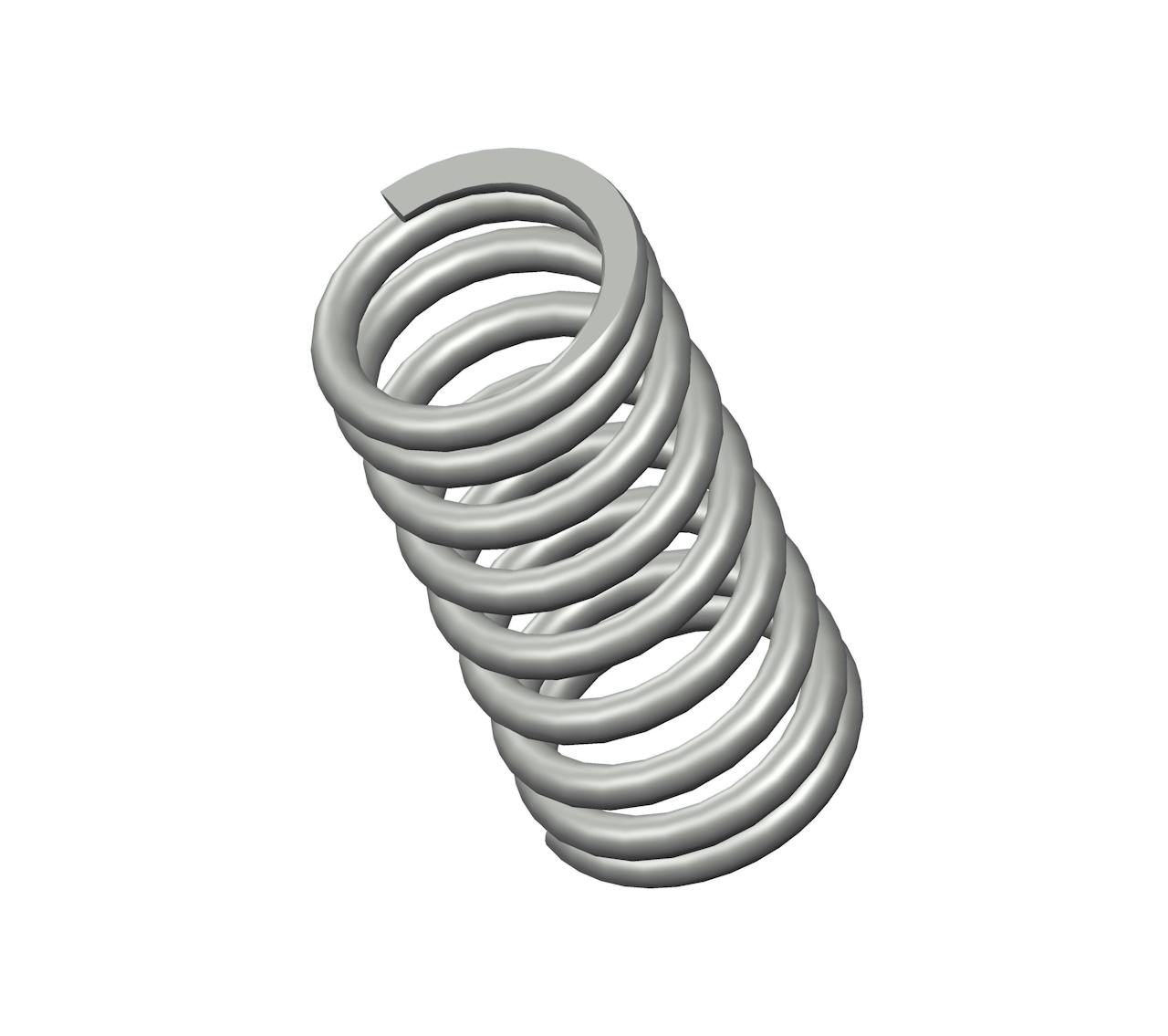

73080CS - 5" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 8.76 coils and closed & ground ends. This spring features an O.D. of 2.437", and an I.D. of 1.813".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73080
Ends Closed & Ground
Finish None
Free Length 5 in
Inside Diameter 1.813 in
Material Oil Tempered
Outside Diameter 2.437 in
Part Type Standard
Rate 210 lbs/in
SKU 73080CS
Solid Length 2.73 in
Suggested Max Deflection 1.7 in
Suggested Max Load 358 lbf
Total Coils 8.76
Wire Diameter 0.312 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73080
Ends Closed & Ground
Finish None
Free Length 127 mm
Inside Diameter 46.05 mm
Material Oil Tempered
Outside Diameter 61.9 mm
Part Type Standard
Rate 36.77 N/mm
SKU 73080CS
Solid Length 69.34 mm
Suggested Max Deflection 43.18 mm
Suggested Max Load 1592.38 N
Total Coils 8.76
Wire Diameter 7.92 mm
The compression spring 73080CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73080 compression spring design exhibits exceptional tensile strength and resilience.

The 73080 design is manufactured with a free length of 5", with an outer diameter of 2.437", an inner diameter of 1.813", and a total of 8.76 coils, expertly designed to deliver consistent compression characteristics including a rate of 210 lbs/in.

The 73080CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73080 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
