73077CS - 8" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

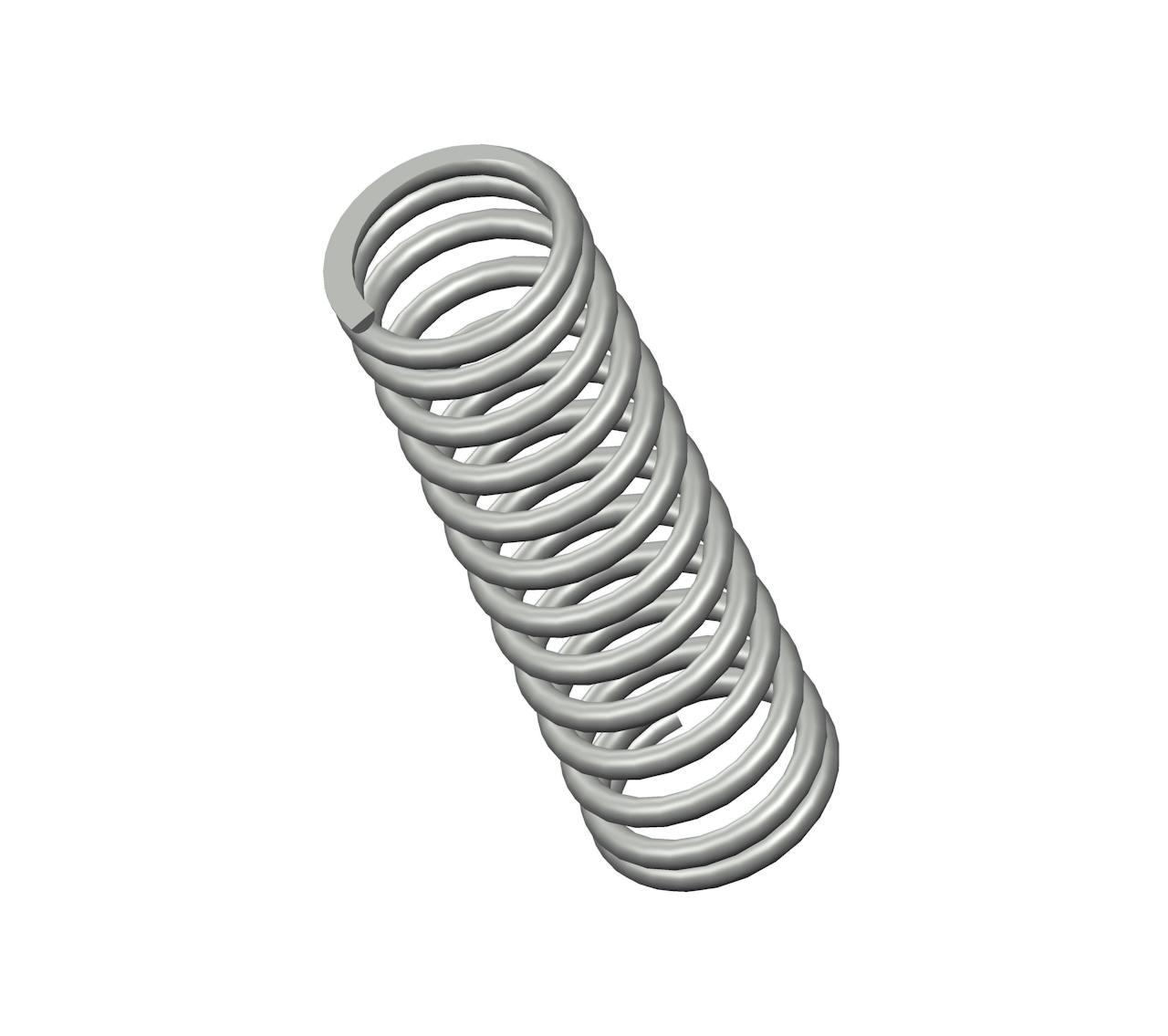

Compression spring manufactured from oil tempered with 13.3 coils and closed & ground ends. This spring features an O.D. of 2.437", and an I.D. of 1.875".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73077
Ends Closed & Ground
Finish None
Free Length 8 in
Inside Diameter 1.875 in
Material Oil Tempered
Outside Diameter 2.437 in
Part Type Standard
Rate 79 lbs/in
SKU 73077CS
Solid Length 3.74 in
Suggested Max Deflection 3.4 in
Suggested Max Load 271 lbf
Total Coils 13.3
Wire Diameter 0.281 in
The compression spring 73077CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73077 compression spring design exhibits exceptional tensile strength and resilience.

The 73077 design is manufactured with a free length of 8", with an outer diameter of 2.437", an inner diameter of 1.875", and a total of 13.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 79 lbs/in.

The 73077CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73077 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
