Century Spring

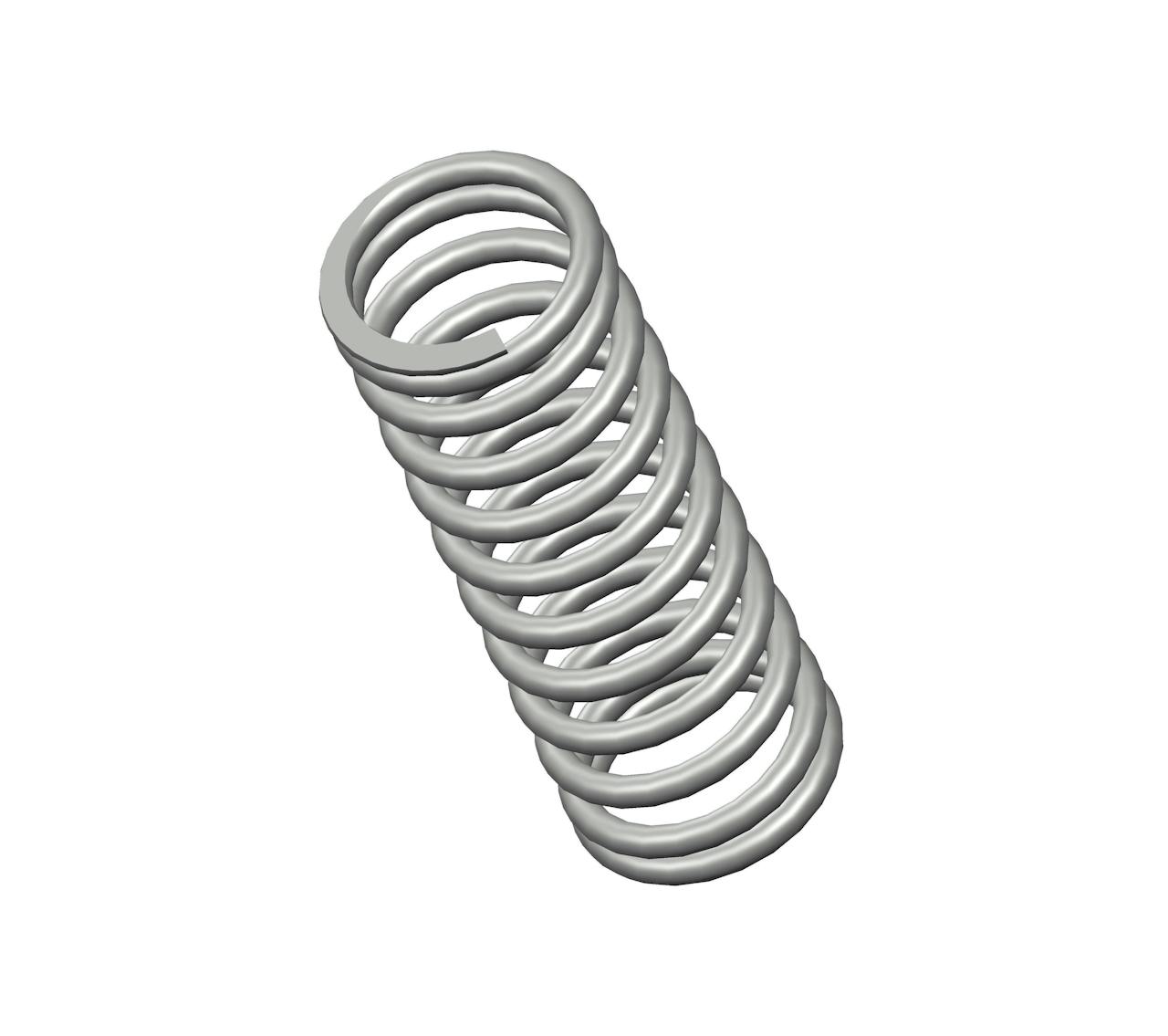

73076CS - 7" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 11.7 coils and closed & ground ends. This spring features an O.D. of 2.437", and an I.D. of 1.875".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73076
Ends Closed & Ground
Finish None
Free Length 7 in
Inside Diameter 1.875 in
Material Oil Tempered
Outside Diameter 2.437 in
Part Type Standard
Rate 92 lbs/in
SKU 73076CS
Solid Length 3.29 in
Suggested Max Deflection 3 in
Suggested Max Load 271 lbf
Total Coils 11.7
Wire Diameter 0.281 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73076
Ends Closed & Ground
Finish None
Free Length 177.8 mm
Inside Diameter 47.63 mm
Material Oil Tempered
Outside Diameter 61.9 mm
Part Type Standard
Rate 16.11 N/mm
SKU 73076CS
Solid Length 83.57 mm
Suggested Max Deflection 76.2 mm
Suggested Max Load 1205.41 N
Total Coils 11.7
Wire Diameter 7.14 mm
The 73076CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.281" diameter oil tempered, the 73076 spring design exhibits reliable strength across its 11.7 active coils, withstanding repeated compression cycles with a maximum load of 271 lbf without succumbing to fatigue.

We manufacture the 73076 design to provide a compression spring that is 7" long at rest and provides a consistent rate of 92 lbs/in along its recommended maximum of 3" deflection. For best results, your application should fully accommodate the inner (1.875") and outer (2.437") diameters of this spring and be designed for its closed & ground end configuration.
