Century Spring

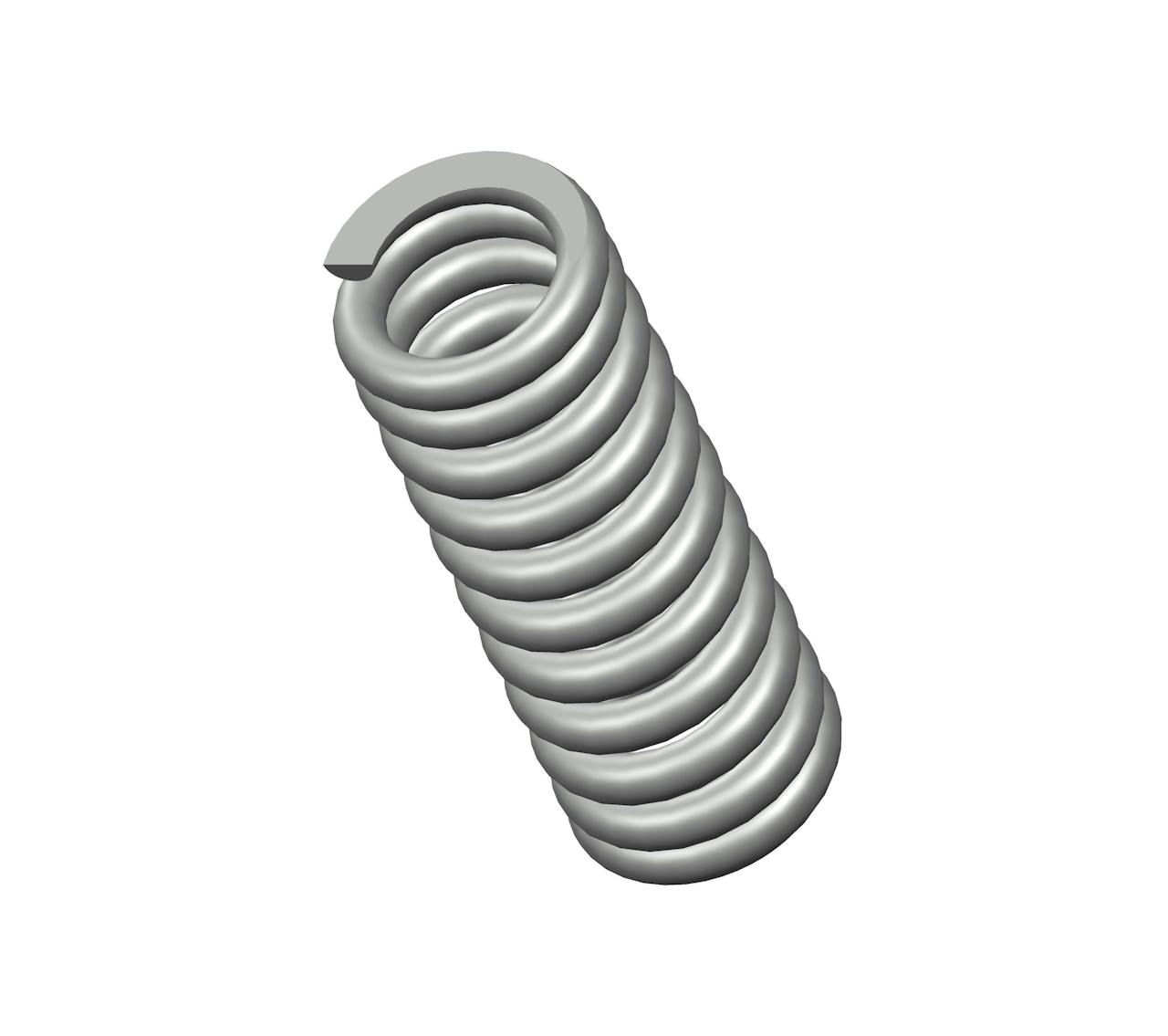

73068CS - 6" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 11 coils and closed & ground ends. This spring features an O.D. of 2.187", and an I.D. of 1.401".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73068
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 1.401 in
Material Oil Tempered
Outside Diameter 2.187 in
Part Type Standard
Rate 664 lbs/in
SKU 73068CS
Solid Length 4.3 in
Suggested Max Deflection 1.1 in
Suggested Max Load 733 lbf
Total Coils 11
Wire Diameter 0.393 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73068
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 35.59 mm
Material Oil Tempered
Outside Diameter 55.55 mm
Part Type Standard
Rate 116.27 N/mm
SKU 73068CS
Solid Length 109.22 mm
Suggested Max Deflection 27.94 mm
Suggested Max Load 3260.38 N
Total Coils 11
Wire Diameter 9.98 mm
The compression spring 73068CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73068 compression spring design exhibits exceptional tensile strength and resilience.

The 73068 design is manufactured with a free length of 6", with an outer diameter of 2.187", an inner diameter of 1.401", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 664 lbs/in.

The 73068CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73068 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
