73067CS - 5" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

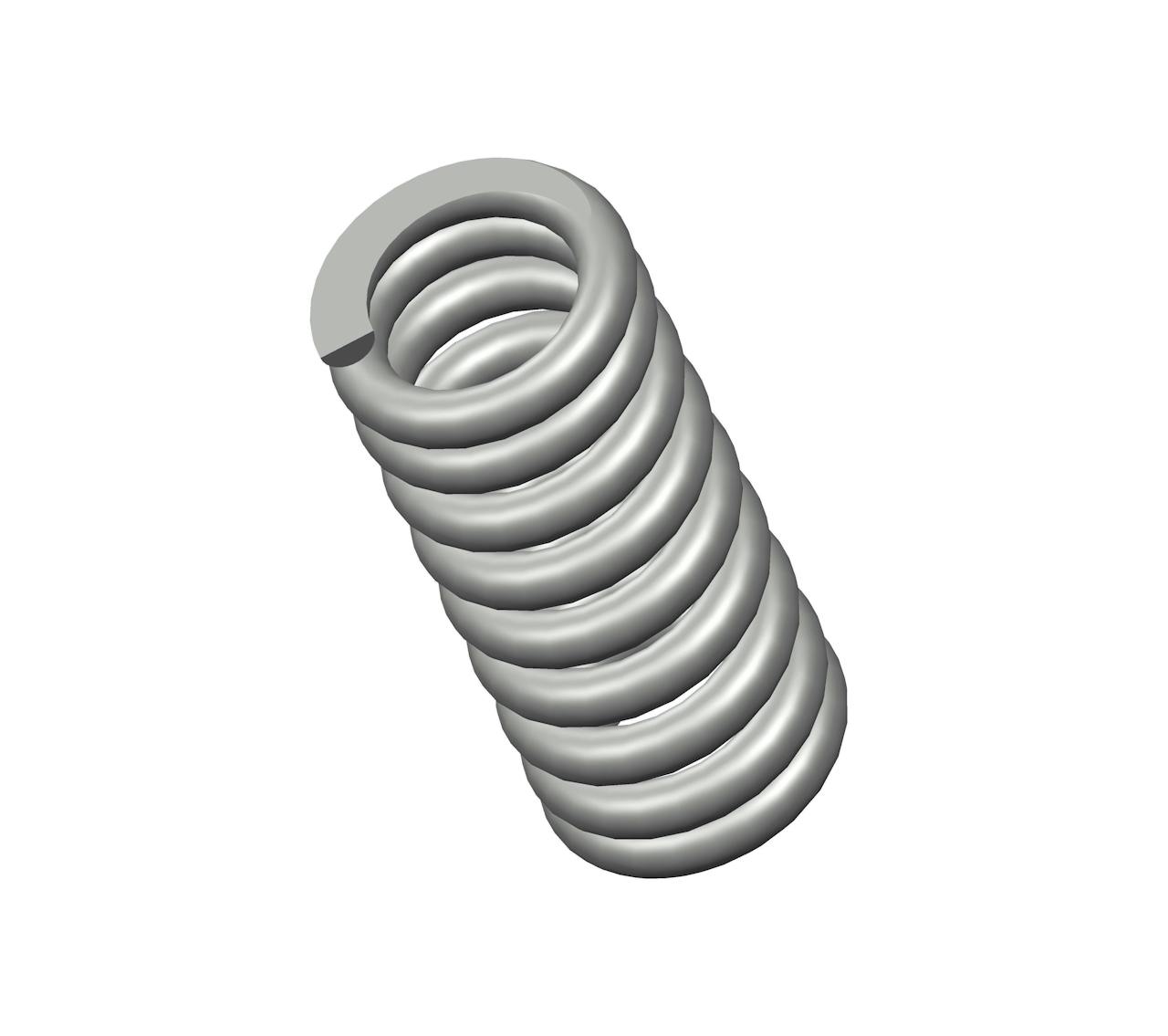

Compression spring manufactured from oil tempered with 9.2 coils and closed & ground ends. This spring features an O.D. of 2.187", and an I.D. of 1.401".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73067 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 5 in |
| Inside Diameter | 1.401 in |
| Material | Oil Tempered |
| Outside Diameter | 2.187 in |
| Part Type | Standard |
| Rate | 825 lbs/in |
| SKU | 73067CS |
| Solid Length | 3.62 in |
| Suggested Max Deflection | 0.89 in |
| Suggested Max Load | 733 lbf |
| Total Coils | 9.2 |
| Wire Diameter | 0.393 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 73067 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 127 mm |
| Inside Diameter | 35.59 mm |
| Material | Oil Tempered |
| Outside Diameter | 55.55 mm |
| Part Type | Standard |
| Rate | 144.46 N/mm |
| SKU | 73067CS |
| Solid Length | 91.95 mm |
| Suggested Max Deflection | 22.61 mm |
| Suggested Max Load | 3260.38 N |
| Total Coils | 9.2 |
| Wire Diameter | 9.98 mm |
The 73067CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.393" diameter oil tempered, the 73067 spring design exhibits reliable strength across its 9.2 active coils, withstanding repeated compression cycles with a maximum load of 733 lbf without succumbing to fatigue.
We manufacture the 73067 design to provide a compression spring that is 5" long at rest and provides a consistent rate of 825 lbs/in along its recommended maximum of 0.89" deflection. For best results, your application should fully accommodate the inner (1.401") and outer (2.187") diameters of this spring and be designed for its closed & ground end configuration.
