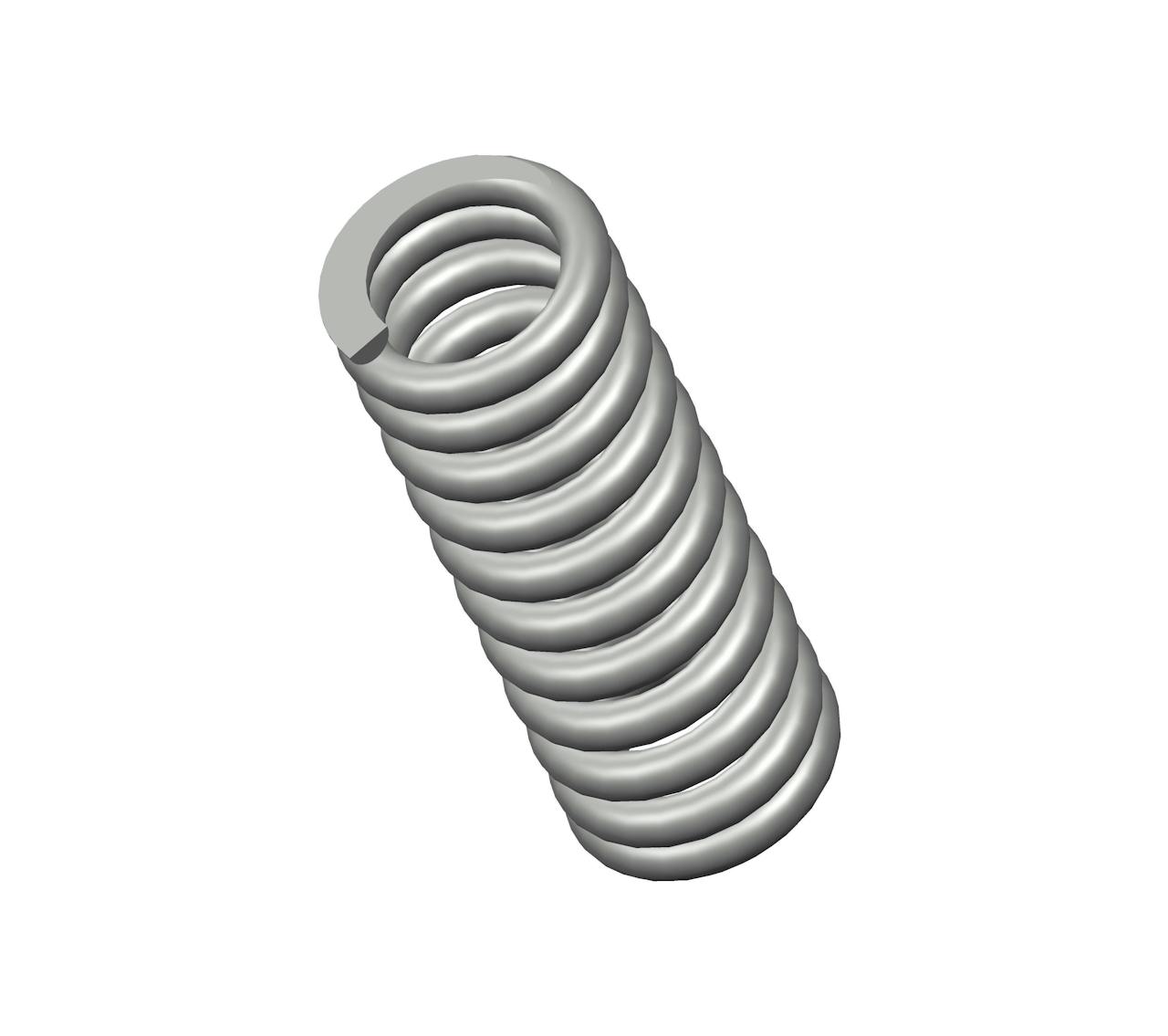

73061CS - 6" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 11.3 coils and closed & ground ends. This spring features an O.D. of 2.187", and an I.D. of 1.437".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73061
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 1.437 in
Material Oil Tempered
Outside Diameter 2.187 in
Part Type Standard
Rate 514 lbs/in
SKU 73061CS
Solid Length 4.24 in
Suggested Max Deflection 1.3 in
Suggested Max Load 657 lbf
Total Coils 11.3
Wire Diameter 0.375 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73061
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 36.5 mm
Material Oil Tempered
Outside Diameter 55.55 mm
Part Type Standard
Rate 90 N/mm
SKU 73061CS
Solid Length 107.7 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 2922.34 N
Total Coils 11.3
Wire Diameter 9.53 mm
The 73061CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.375" diameter oil tempered, the 73061 spring design exhibits reliable strength across its 11.3 active coils, withstanding repeated compression cycles with a maximum load of 657 lbf without succumbing to fatigue.

We manufacture the 73061 design to provide a compression spring that is 6" long at rest and provides a consistent rate of 514 lbs/in along its recommended maximum of 1.3" deflection. For best results, your application should fully accommodate the inner (1.437") and outer (2.187") diameters of this spring and be designed for its closed & ground end configuration.
