Century Spring

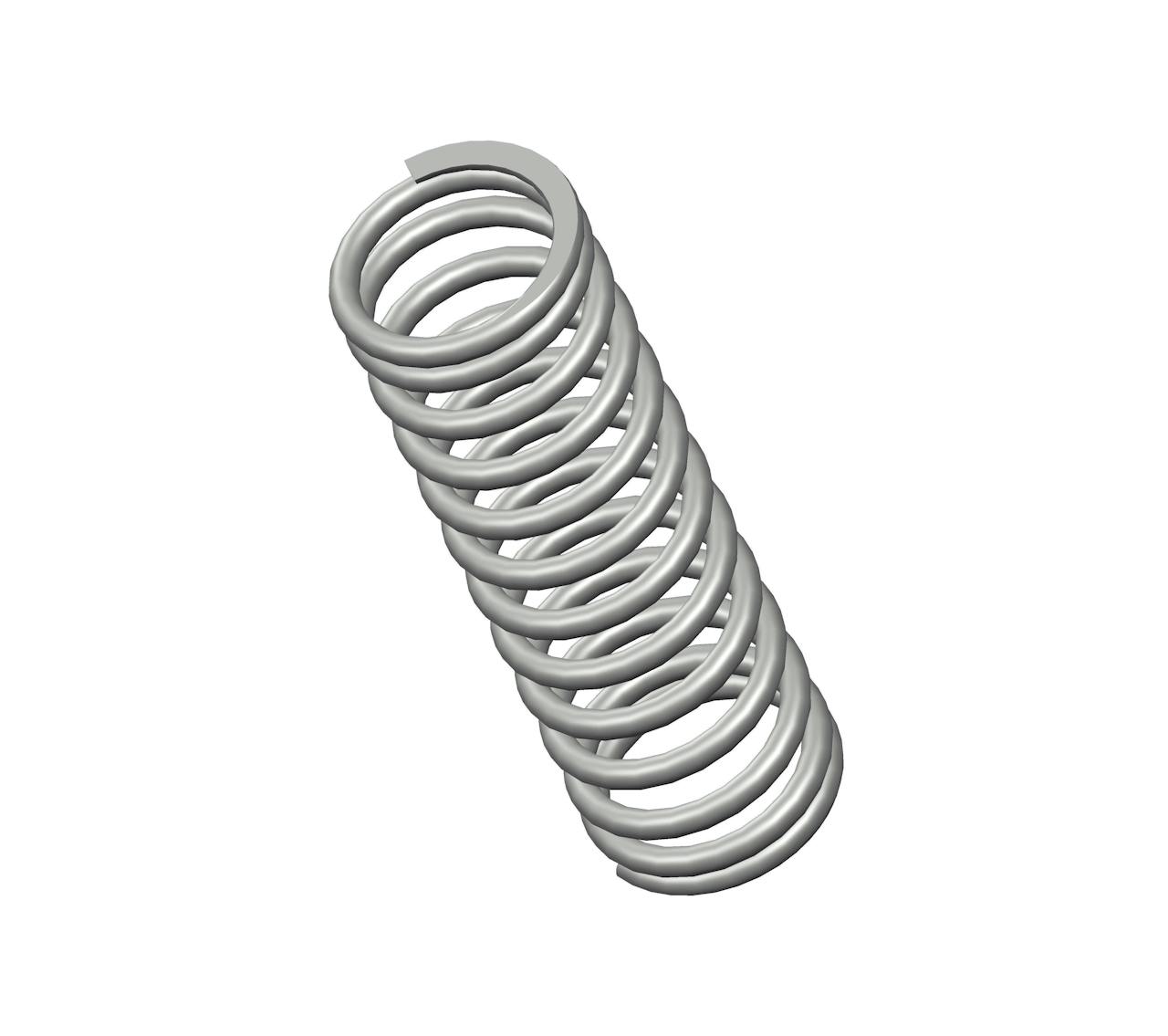

73034CS - 7" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 12.7 coils and closed & ground ends. This spring features an O.D. of 2.187", and an I.D. of 1.687".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73034
Ends Closed & Ground
Finish None
Free Length 7 in
Inside Diameter 1.687 in
Material Oil Tempered
Outside Diameter 2.187 in
Part Type Standard
Rate 72 lbs/in
SKU 73034CS
Solid Length 3.19 in
Suggested Max Deflection 3.1 in
Suggested Max Load 220 lbf
Total Coils 12.7
Wire Diameter 0.25 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73034
Ends Closed & Ground
Finish None
Free Length 177.8 mm
Inside Diameter 42.85 mm
Material Oil Tempered
Outside Diameter 55.55 mm
Part Type Standard
Rate 12.61 N/mm
SKU 73034CS
Solid Length 81.03 mm
Suggested Max Deflection 78.74 mm
Suggested Max Load 978.56 N
Total Coils 12.7
Wire Diameter 6.35 mm
The 73034CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.25" diameter oil tempered, the 73034 spring design exhibits reliable strength across its 12.7 active coils, withstanding repeated compression cycles with a maximum load of 220 lbf without succumbing to fatigue.

We manufacture the 73034 design to provide a compression spring that is 7" long at rest and provides a consistent rate of 72 lbs/in along its recommended maximum of 3.1" deflection. For best results, your application should fully accommodate the inner (1.687") and outer (2.187") diameters of this spring and be designed for its closed & ground end configuration.
