Century Spring

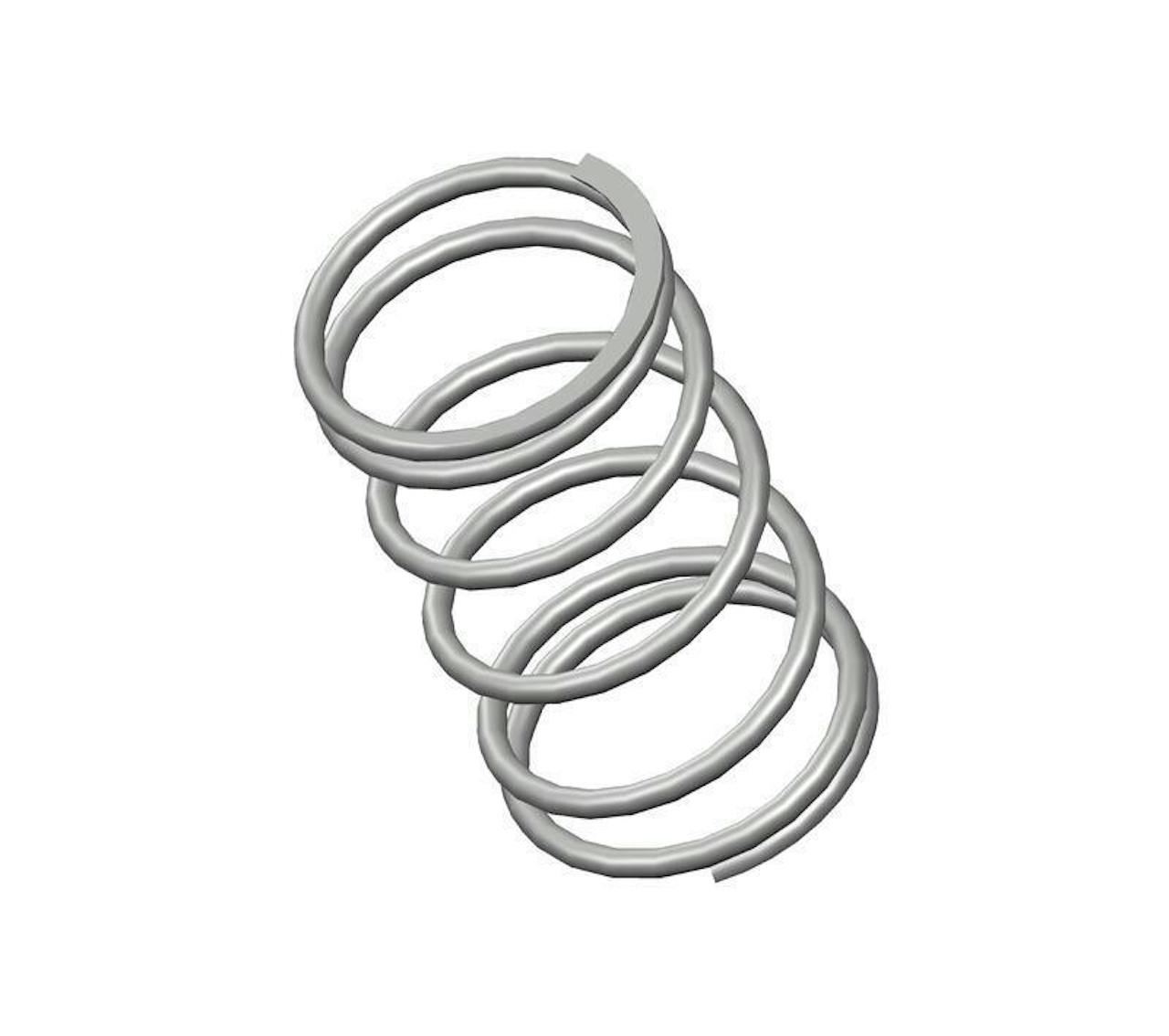

72936CS - 3.5" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 6.38 coils and closed & ground ends. This spring features an O.D. of 1.937", and an I.D. of 1.641".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72936
Ends Closed & Ground
Finish None
Free Length 3.5 in
Inside Diameter 1.641 in
Material Music Wire
Outside Diameter 1.937 in
Part Type Standard
Rate 27 lbs/in
SKU 72936CS
Solid Length 0.94 in
Suggested Max Deflection 2.6 in
Suggested Max Load 70 lbf
Total Coils 6.38
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72936
Ends Closed & Ground
Finish None
Free Length 88.9 mm
Inside Diameter 41.68 mm
Material Music Wire
Outside Diameter 49.2 mm
Part Type Standard
Rate 4.73 N/mm
SKU 72936CS
Solid Length 23.88 mm
Suggested Max Deflection 66.04 mm
Suggested Max Load 311.36 N
Total Coils 6.38
Wire Diameter 3.76 mm
The 72936CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.148" diameter music wire, the 72936 spring design exhibits reliable strength across its 6.38 active coils, withstanding repeated compression cycles with a maximum load of 70 lbf without succumbing to fatigue.

We manufacture the 72936 design to provide a compression spring that is 3.5" long at rest and provides a consistent rate of 27 lbs/in along its recommended maximum of 2.6" deflection. For best results, your application should fully accommodate the inner (1.641") and outer (1.937") diameters of this spring and be designed for its closed & ground end configuration.
