Century Spring

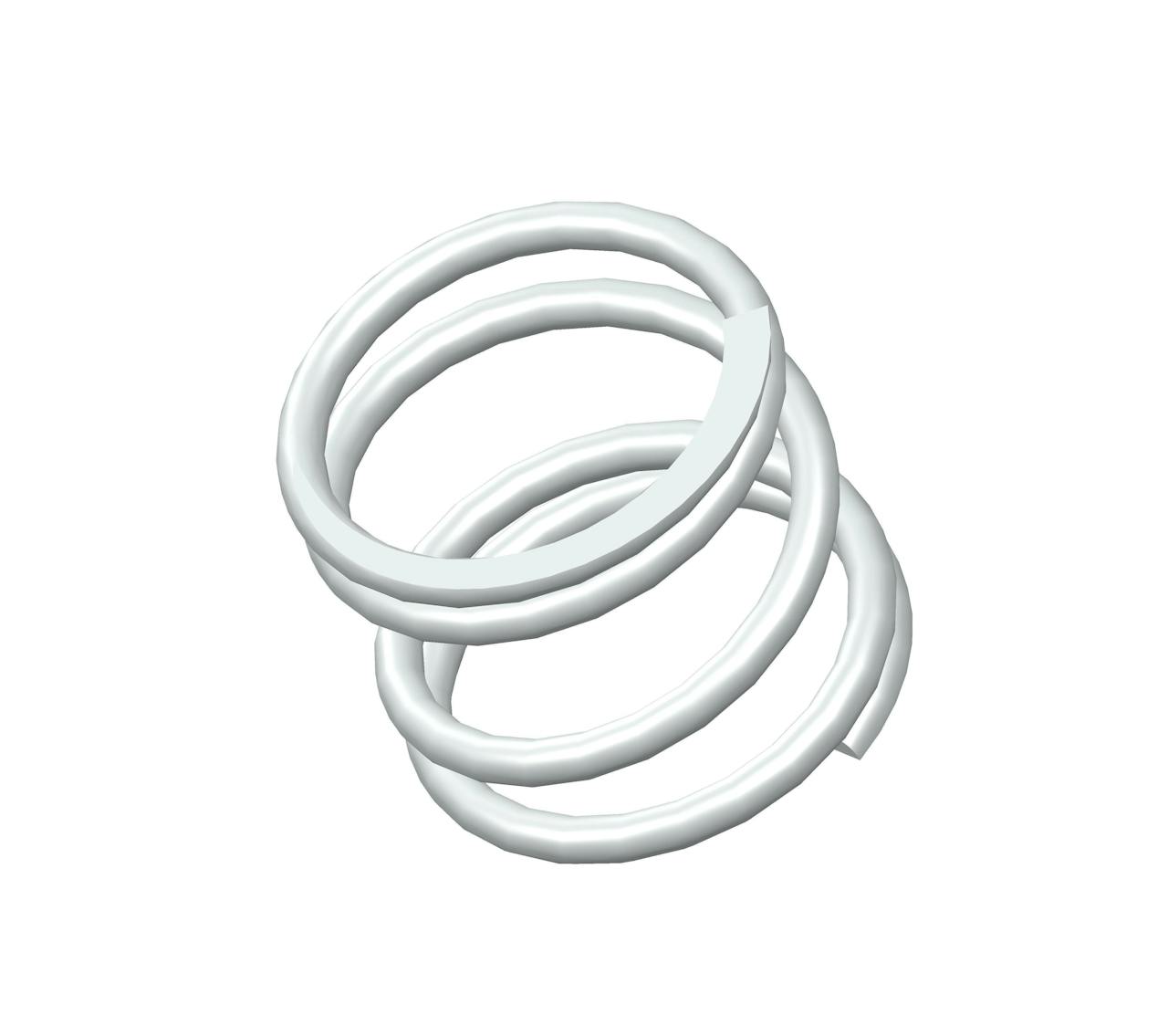

72882SCS - 1.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4.13 coils and closed & ground ends. This spring features an O.D. of 1.687", and an I.D. of 1.375".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72882S
Ends Closed & Ground
Finish None
Free Length 1.5 in
Inside Diameter 1.375 in
Material 302/304 Stainless Steel
Outside Diameter 1.687 in
Part Type Standard
Rate 95 lbs/in
SKU 72882SCS
Solid Length 0.64 in
Suggested Max Deflection 0.63 in
Suggested Max Load 60 lbf
Total Coils 4.13
Wire Diameter 0.156 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72882S
Ends Closed & Ground
Finish None
Free Length 38.1 mm
Inside Diameter 34.93 mm
Material 302/304 Stainless Steel
Outside Diameter 42.85 mm
Part Type Standard
Rate 16.63 N/mm
SKU 72882SCS
Solid Length 16.26 mm
Suggested Max Deflection 16 mm
Suggested Max Load 266.88 N
Total Coils 4.13
Wire Diameter 3.96 mm
The 72882SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.156" diameter 302/304 stainless steel, the 72882S spring design exhibits reliable strength across its 4.13 active coils, withstanding repeated compression cycles with a maximum load of 60 lbf without succumbing to fatigue.

We manufacture the 72882S design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 95 lbs/in along its recommended maximum of 0.63" deflection. For best results, your application should fully accommodate the inner (1.375") and outer (1.687") diameters of this spring and be designed for its closed & ground end configuration.
